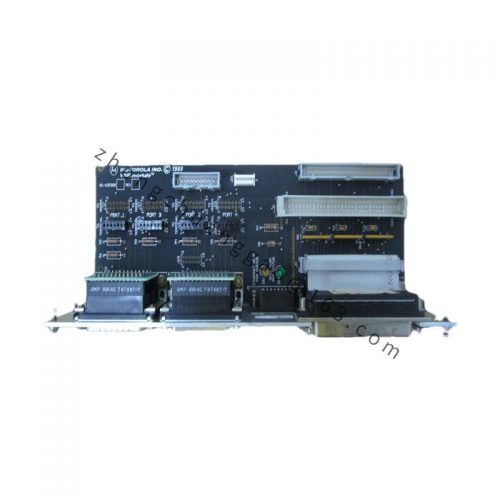

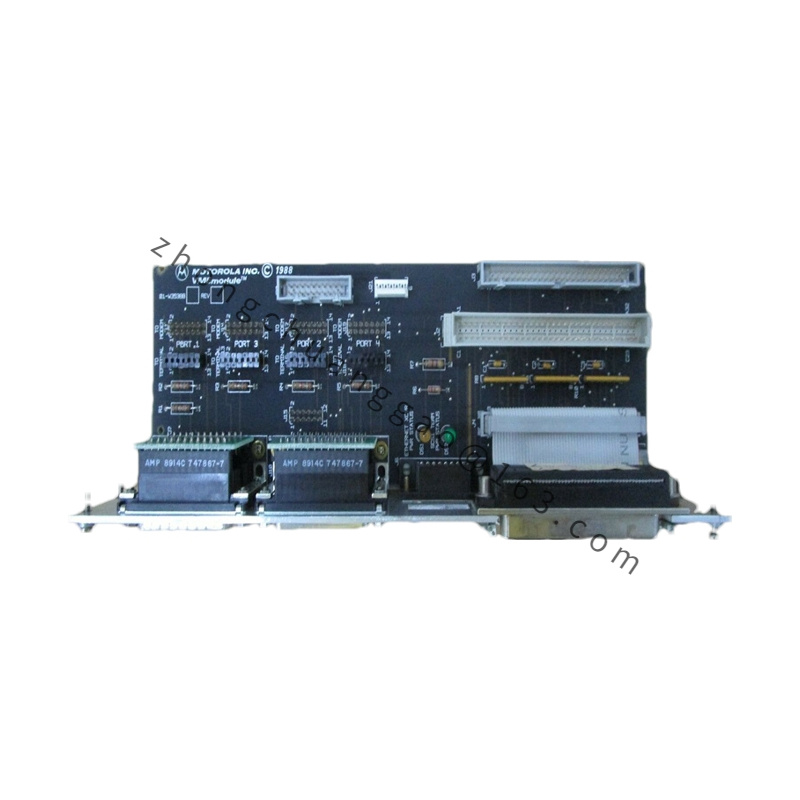

Type: VMEbus Module (typically used as a single-board computer or peripheral interface)
Processor:
Usually integrates a Motorola 68000-series microprocessor or similar. Specific details, such as clock speed and processor configuration, should be checked in the product datasheet.
Memory:
RAM: Includes onboard RAM, with typical configurations ranging from 2 MB to 4 MB or more. Exact details are available in the datasheet.
ROM/Flash: Equipped with ROM or flash memory for firmware and system software storage. Specific capacities are detailed in the datasheet.
I/O Interfaces:
Serial Ports: Multiple serial communication ports, such as RS-232 or RS-422, for serial data exchange.
Parallel I/O: General-purpose parallel I/O ports for interfacing with external devices and peripherals.
Bus Interfaces: May include additional interfaces like SCSI or IDE, depending on the specific module configuration.
Bus Interface: Compliant with the VMEbus standard, allowing integration into VMEbus-based systems.
Power Requirements: Operates within standard VMEbus power specifications. Detailed power consumption and voltage requirements should be confirmed from the datasheet.
2. Key Features
VMEbus Compliance: Adheres to the VMEbus standard, ensuring compatibility with other VMEbus components and systems.
Versatile I/O Options: Provides a range of I/O interfaces, making it suitable for applications requiring various types of connectivity.
Reliability: Designed to perform reliably in challenging environments, making it suitable for industrial, military, and aerospace applications.
Expandable: Supports additional expansions for memory and storage based on application needs and system configurations.
3. Application Scenarios
Industrial Automation: Used in control systems where robust and flexible computing is required for managing and controlling industrial machinery and processes.
Defense and Aerospace: Suitable for defense and aerospace applications due to its rugged design and high-performance capabilities.
Medical Systems: Applied in medical diagnostic and imaging equipment where high reliability and performance are critical.
Embedded Systems: Ideal for embedded systems needing VMEbus compatibility and extensive I/O capabilities for various applications.
4. Additional Information
Installation and Maintenance: The module is installed into a VMEbus chassis and configured according to the system requirements. Maintenance includes routine checks to ensure the module operates within its specified parameters.
Technical Support: For detailed specifications, installation guidance, and troubleshooting, refer to the official product datasheet or contact Motorola directly. Support and documentation are also available from authorized distributors.
