1. Technical Specifications

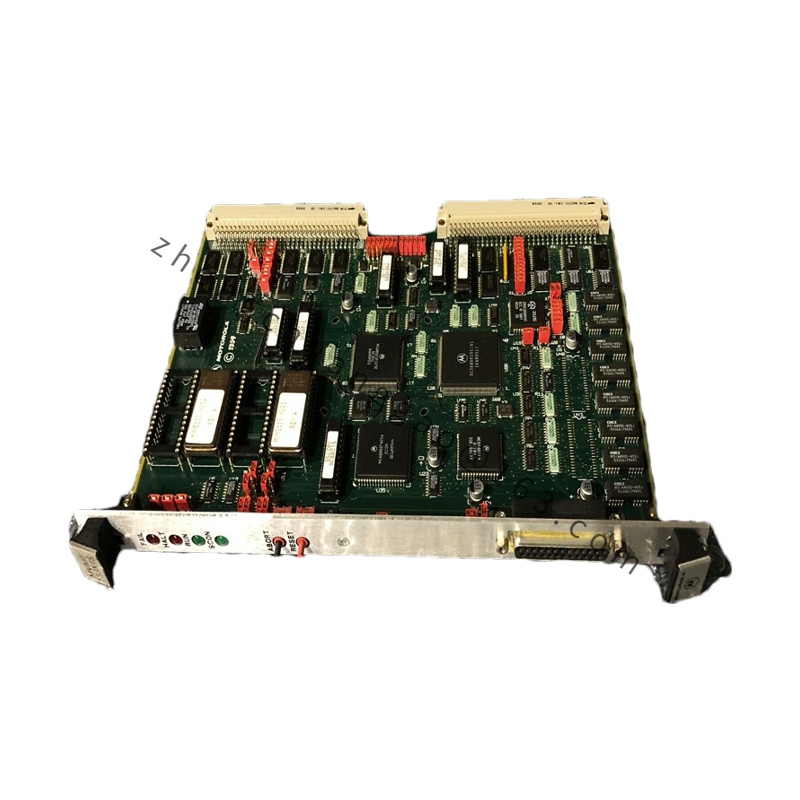

• Model: Motorola M-816368
• Type: VMEbus Module (usually a single-board computer or interface card)
• Processor:
  • Equipped with a Motorola 68000-series microprocessor or similar. The specific processor type, clock speed, and configuration should be checked from the datasheet for exact details.
• Memory:
  • RAM: Typically includes onboard RAM, with configurations ranging from 2 MB to 4 MB. Exact specifications can be confirmed from the datasheet.
  • ROM/Flash: Includes ROM or flash memory for firmware and system software storage. Specific capacities are detailed in the datasheet.
• I/O Interfaces:
  • Serial Ports: Multiple serial communication ports, such as RS-232 or RS-422, for serial data exchange.
  • Parallel I/O: General-purpose parallel I/O ports for connecting with external devices and peripherals.
  • Bus Interfaces: May support additional interfaces like SCSI or IDE, depending on the specific module configuration.
• Bus Interface: Compliant with VMEbus standards, ensuring compatibility with other VMEbus systems and components.
• Power Requirements: Operates within the standard VMEbus power specifications. Detailed power consumption and voltage requirements should be reviewed from the datasheet.

2. Key Features

• VMEbus Compliance: Fully compliant with the VMEbus standard, facilitating easy integration into existing VMEbus-based systems.
• Flexible I/O Options: Provides a variety of I/O interfaces, making it suitable for different applications that require diverse connectivity solutions.
• Reliability: Designed for reliable operation in demanding environments, which is critical for industrial, military, and aerospace applications.
• Expandable: Supports additional memory and storage expansions depending on the needs of the application and system configuration.

3. Application Scenarios

• Industrial Automation: Ideal for use in industrial control systems where robust and versatile computing capabilities are required for managing and controlling machinery and processes.
• Defense and Aerospace: Suitable for defense and aerospace applications due to its rugged design and high-performance characteristics.
• Medical Systems: Applied in medical diagnostic and imaging systems, where high reliability and performance are essential.
• Embedded Systems: Suitable for embedded systems that require VMEbus compatibility and extensive I/O capabilities for various applications.

4. Additional Information

• Installation and Maintenance: The module is installed into a VMEbus chassis and configured according to the system requirements. Regular maintenance includes ensuring the module operates within its specified parameters and performing routine system checks.
• Technical Support: Detailed support, including technical specifications, installation guidance, and troubleshooting information, is available from Motorola or authorized distributors. For the most accurate information, consult the official product datasheet or contact Motorola directly.
