1. Technical Specifications

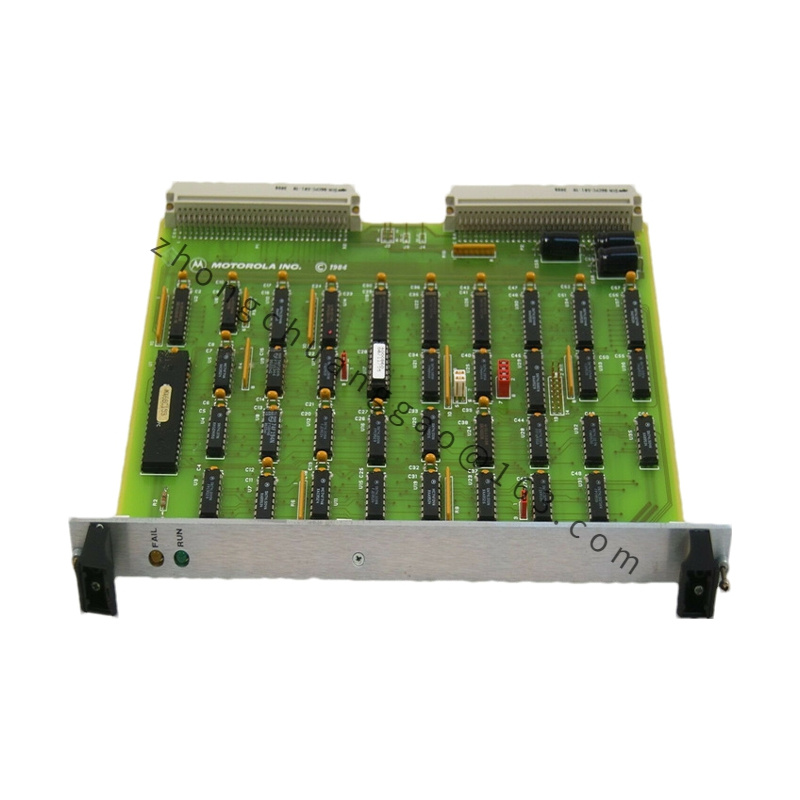

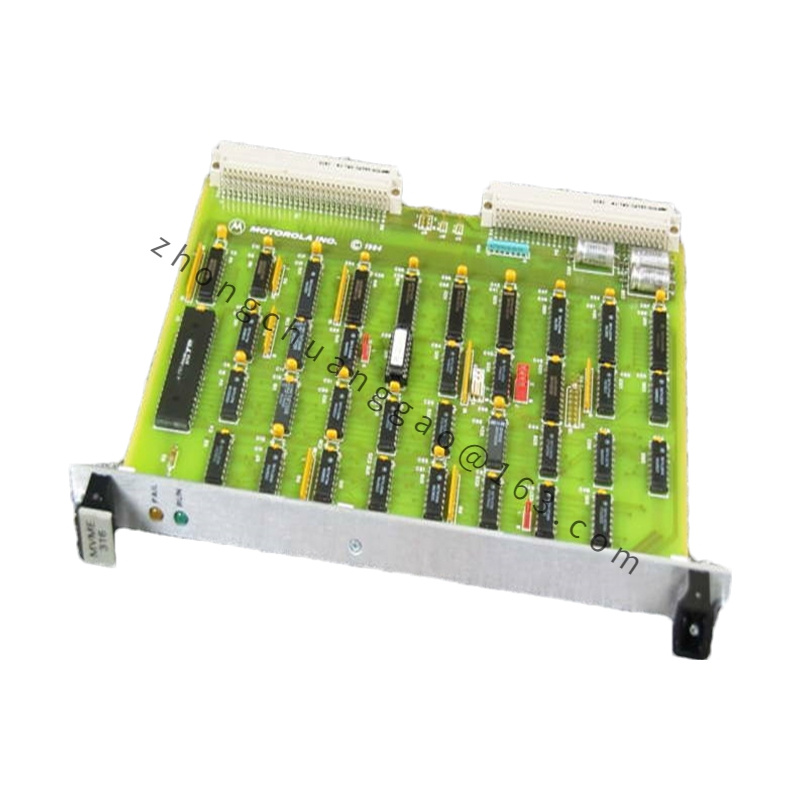

• Model: Motorola M-816287
• Type: VMEbus Single-Board Computer or Module
• Processor:
  • Often equipped with a Motorola 68000-series microprocessor or similar, depending on the specific version. The exact processor and its clock speed should be verified in the datasheet.
• Memory:
  • RAM: Onboard RAM, typically up to 4 MB or more. Exact memory configurations are detailed in the datasheet.
  • ROM/Flash: Includes onboard ROM or flash memory for firmware storage. Specifications are provided in the datasheet.
• I/O Interfaces:
  • Serial Ports: Multiple serial communication ports (e.g., RS-232/RS-422).
  • Parallel I/O: General-purpose parallel I/O ports.
  • SCSI/IDE: May support SCSI or IDE for additional storage options, depending on the model.
• Bus Interface: Compliant with the VMEbus standard, facilitating integration into VME-based systems.
• Power Requirements: Operates within the standard VMEbus power specifications. Detailed power requirements are specified in the datasheet.

2. Key Features

• VMEbus Compliance: Fully compliant with the VMEbus standard, allowing for easy integration into VME-based systems and chassis.
• Versatile I/O: Offers a variety of I/O options for interfacing with external devices, sensors, and other peripherals.
• High Reliability: Designed for reliable operation in demanding environments, including industrial, military, and aerospace applications.
• Expandable: Typically supports additional memory and storage expansions, depending on the specific configuration and requirements.

3. Application Scenarios

• Industrial Automation: Ideal for use in industrial control systems, where reliable and flexible computing is required for managing machinery and processes.
• Defense and Aerospace: Suitable for defense and aerospace applications due to its rugged design and high performance.
• Medical Equipment: Used in medical diagnostic and imaging systems, where high-performance computing is crucial.
• Embedded Systems: Integrated into embedded systems requiring robust processing and I/O capabilities.

4. Additional Information

• Installation and Maintenance: Installation involves integrating the board into a VMEbus chassis and configuring it to work with other system components. Maintenance includes ensuring proper operation and performing regular system checks.
• Technical Support: Detailed support and documentation are available from Motorola or authorized distributors. For specific technical details, installation guidance, or troubleshooting, refer to the official product datasheet or contact Motorola directly.
