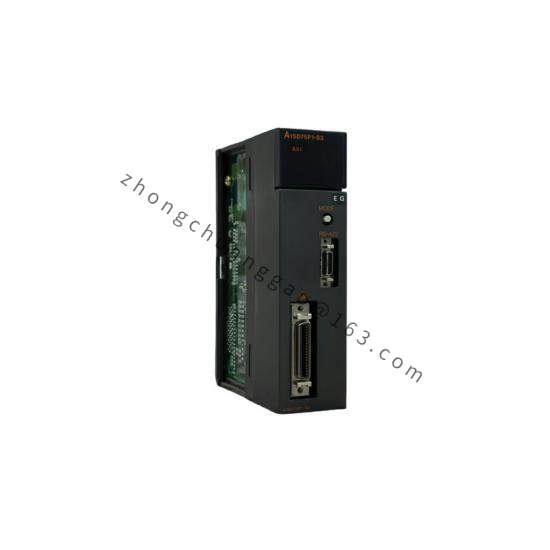

Mitsubishi A1SD75P1-S3: High Precision Positioning Module for Industrial Automation
The Mitsubishi A1SD75P1-S3 Precision Automation Module is a high-performance positioning solution designed for advanced control systems, enabling precise point-to-point movement with unparalleled accuracy.
Detailed content
Model:A1SD75P1-S3
Brand:Mitsubishi
Module Type:Positioning Module
Operating Voltage:24VDC
Current Rating:3A
Communication Interface:RS-485
Control Modes:[“PTP”,”Path”,”Speed”,”Speed-Position Switching”]
Interpolation:Linear, Circular, Helical
Axis Support:Up to 4 Axes
Pulse Rate:200kHz
Mounting Mode:Backplane/Rack
Power Consumption:2.8W
Engineered for demanding applications, the Mitsubishi A1SD75P1-S3 is a high-speed positioning module that excels in precision control, ensuring exceptional accuracy and efficiency in manufacturing processes.
Featuring advanced motion control capabilities, this module supports PTP, Path, Speed, and Speed-Position Switching control systems, making it versatile for various automation needs.
With its 4-axis design and 200K pulse/s linear/circular/helical interpolation, the A1SD75P1-S3 is capable of handling complex movements with ease, enhancing productivity and reducing downtime.
Built with robust transistor outputs, this positioning module ensures reliable operation under a wide range of temperatures, ensuring continuous performance in both storage and operational conditions.
Designed for easy integration, the A1SD75P1-S3 connects seamlessly with MELSEC iQ-R Series systems, providing a seamless control solution for your industrial automation projects.
