Brand & Model:Invensys Triconex 9563-810

Series:Digital Input Termination Panels

Module Type:Control System Modules

Input Capacity:8 Inputs

Operating Voltage:24 VDC

Current Rating:10 mA

Operating Temperature Range:-40°C to +70°C

Relay Outputs:2 SPDT Relays

Communication Interface:RS-485

Enclosure Rating:IP67

Weight:0.5 kg

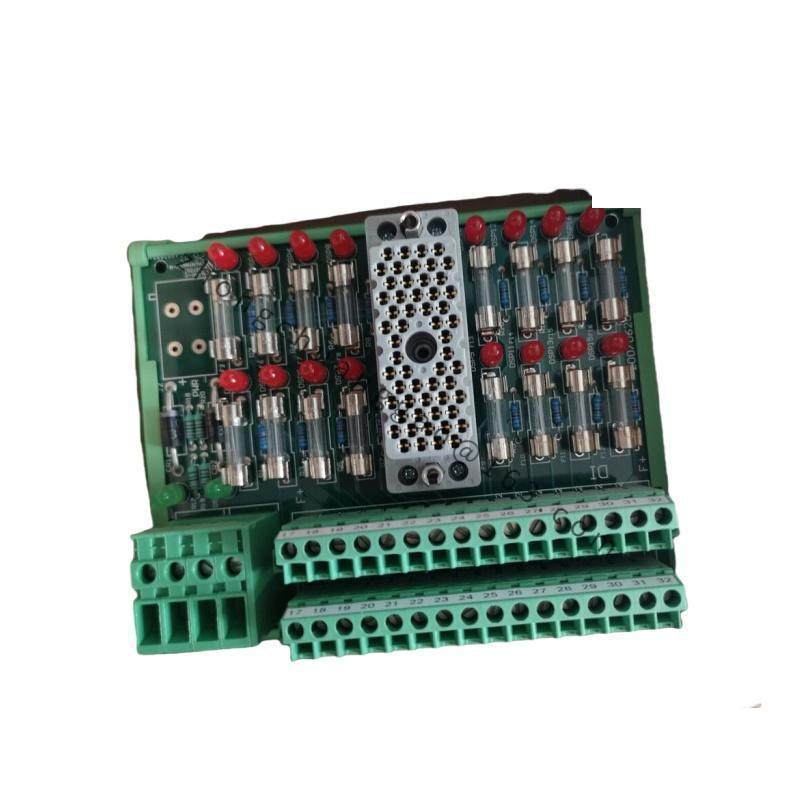

    The Invensys Triconex 9563-810 Digital Input Termination Panel is designed to provide exceptional signal integrity in harsh industrial environments. It’s an essential component for ensuring accurate data transmission in control systems.

    Equipped with a 50 Ohms termination resistor, this panel ensures optimal signal reflection minimization, which is crucial for maintaining system performance and stability.

    Operable within a wide temperature range from -40°C to +85°C, it is built to withstand extreme environmental conditions typically encountered in industrial settings.

    Crafted from corrosion-resistant stainless steel, the enclosure not only ensures durability but also meets IP65 standards for dust and water ingress protection, safeguarding against contaminants.

    Featuring a panel mount design, the 9563-810 is conveniently installed and easily integrated into existing systems, supporting seamless operation in various industrial applications.
