Technical Specifications:

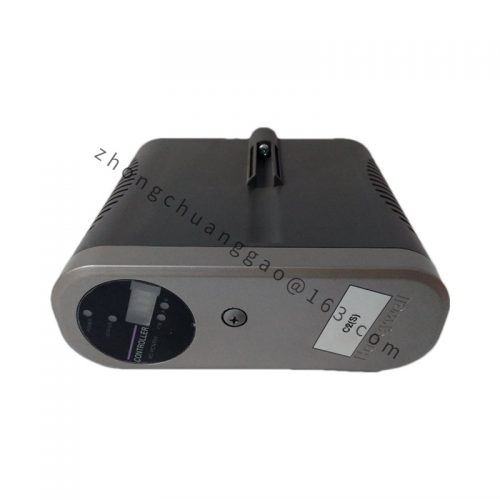

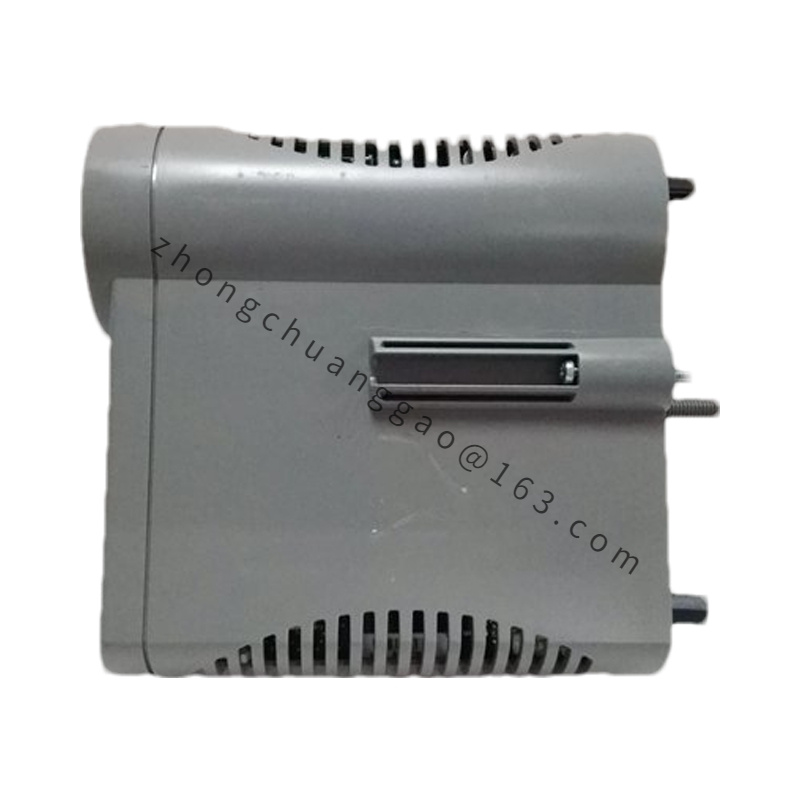

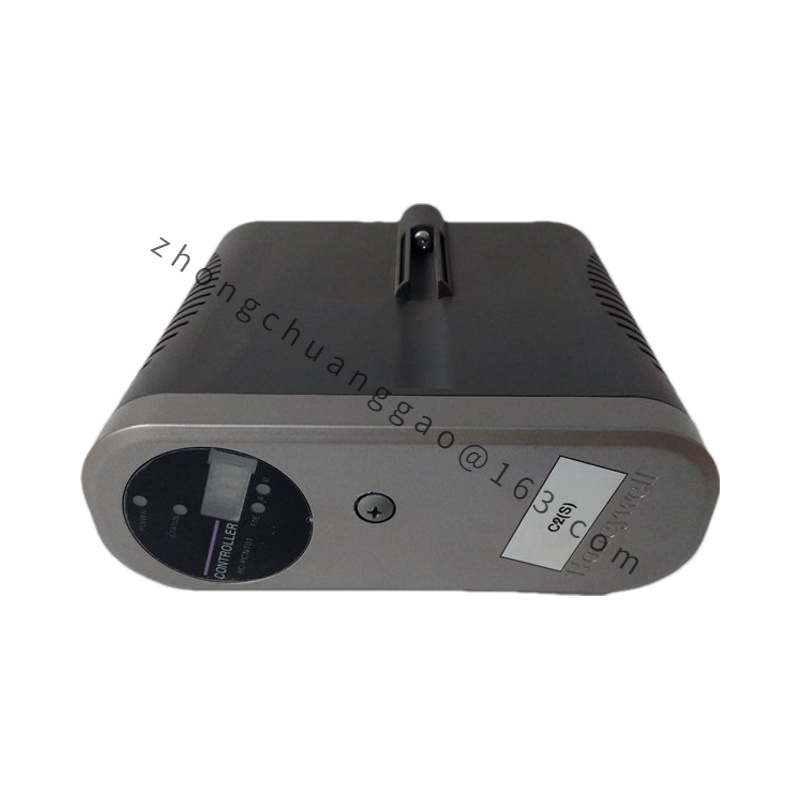

• Type: Analog Input Module
• Model Number: CC-TAIX115
• Input Channels: Typically supports up to 16 analog input channels (verify exact number in the datasheet)
• Input Range: Supports multiple input signal ranges, such as:
  • 4-20 mA
  • 0-10 V
  • Other ranges (specific details should be confirmed in the datasheet)
• Resolution: High resolution for accurate measurement (check datasheet for specific resolution)
• Accuracy: Generally ±0.1% to ±0.5% of full scale (exact accuracy should be verified in the datasheet)
• Power Supply: Usually 24V DC
• Temperature Range: Operates in industrial environments, commonly from -10°C to 60°C
• Communication Protocol: Compatible with various fieldbus protocols, such as:
  • HART
  • PROFIBUS
  • Modbus (confirm exact protocols supported in the datasheet)
• Mounting: Designed for DIN rail mounting or panel mounting based on installation requirements

Features:

• High Accuracy: Provides precise and reliable analog measurements, essential for accurate process monitoring and control.
• Versatile Input Options: Supports various input signal types, allowing for flexibility in different applications.
• User-Friendly Interface: Typically includes an interface for easy configuration, calibration, and diagnostics.
• Built-In Diagnostics: Features diagnostic capabilities to monitor module performance and facilitate troubleshooting.
• Robust Construction: Designed to operate reliably in harsh industrial environments, including extreme temperatures and vibrations.
• Compact Design: Space-efficient, allowing for integration into control panels and other confined spaces.

Applications:

• Industrial Automation: Ideal for monitoring and controlling analog signals in automated industrial processes.
• Process Control: Used to interface with sensors and devices that provide analog signals for process monitoring and control.
• HVAC Systems: Monitors inputs from HVAC sensors to manage heating, ventilation, and air conditioning systems efficiently.
• Manufacturing: Applied in manufacturing processes where accurate analog measurement is critical for process quality and efficiency.
• Building Automation: Integrates into building automation systems to control various functions based on analog input measurements.
