Technical Specifications:

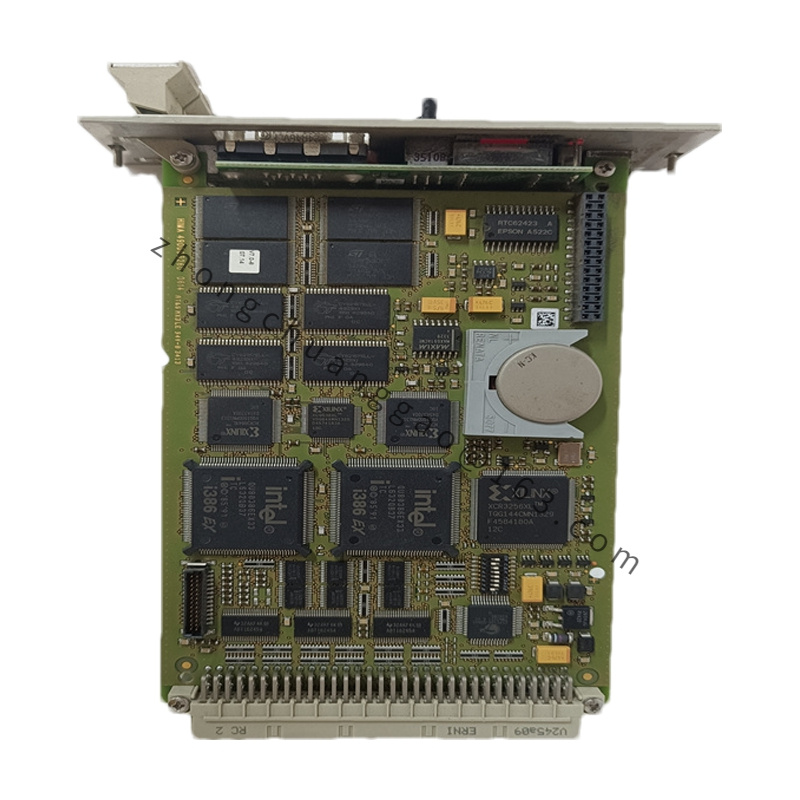

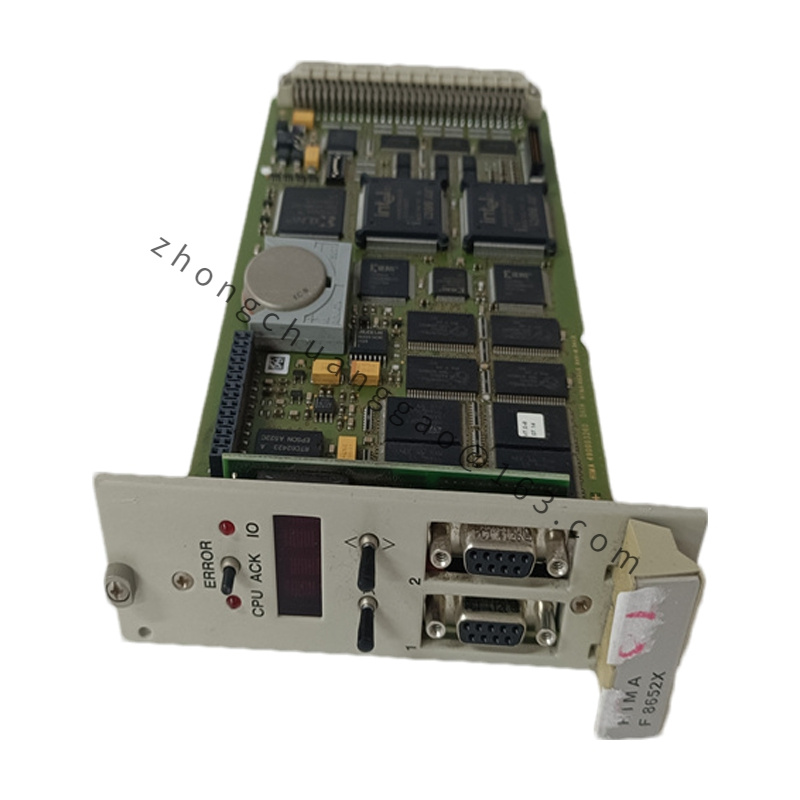

• Model: Hima F8652X 984865265
• Type: Safety Relay Module
• Power Supply: Typically operates on 24V DC.
• Inputs:
  • Digital inputs used for connecting safety sensors and switches.
  • The module usually supports redundant inputs to enhance reliability and fault tolerance.
• Outputs:
  • Relay outputs for controlling safety-related functions.
  • Outputs are designed to manage high safety integrity tasks, often featuring dual-channel architecture for redundancy.
• Standards Compliance:
  • Meets safety standards such as IEC 61508 (Functional Safety) and ISO 13849 (Safety of Machinery).
  • Supports various Safety Integrity Levels (SIL) and Performance Levels (PL) depending on the configuration and application.

Functionality:

• Safety Monitoring:
  • Continuously monitors connected safety circuits to detect faults and ensure safe operation.
• Redundancy:
  • Includes redundancy features to enhance system reliability and ensure high safety performance.
• Diagnostics:
  • Equipped with diagnostic capabilities to support maintenance and troubleshooting.
  • Provides status indicators and fault reporting to facilitate quick identification of issues.
• Configuration and Testing:
  • Allows for configuration to meet specific safety requirements.
  • Includes testing functions to verify the operational status and integrity of the safety system.

Application Scenarios:

• Industrial Automation:
  • Ideal for use in machinery and equipment where safety is critical, such as automated manufacturing processes.
• Process Control:
  • Suitable for environments requiring stringent safety measures, including chemical processing, oil and gas, and pharmaceuticals.
• Emergency Stop Systems:
  • Can be integrated into emergency stop circuits to ensure immediate and safe shutdown of equipment in case of an emergency.
• Safety-Critical Systems:
  • Used in applications demanding high safety integrity, such as robotic systems, automated production lines, and other critical infrastructure.
