Technical Specifications:

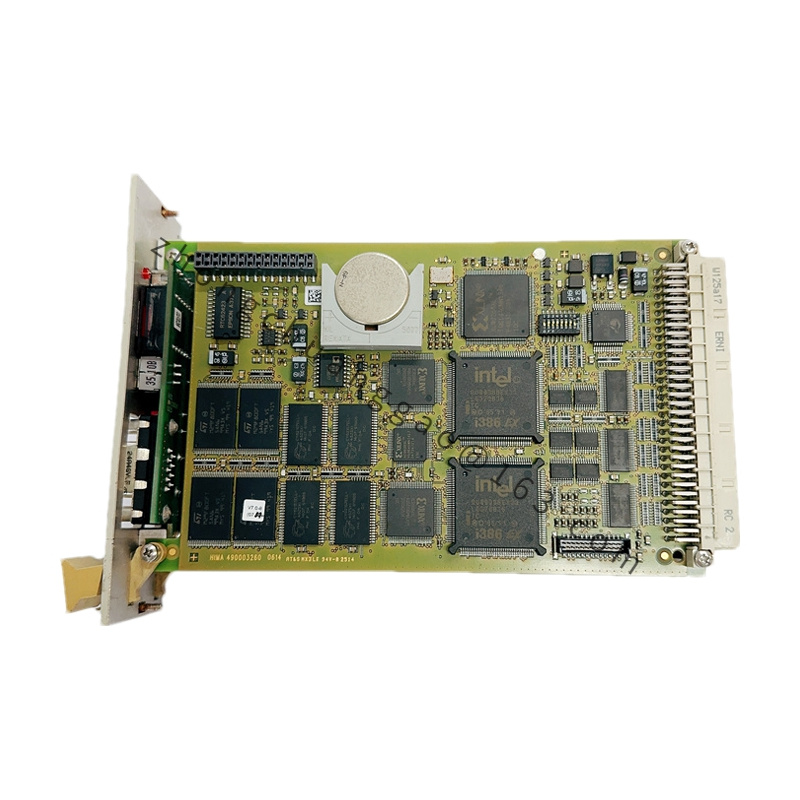

• Model: Hima F8650X 984865065
• Type: Safety Relay Module
• Power Supply: Typically operates on 24V DC.
• Inputs:
  • Digital inputs for connection to safety sensors, switches, or other devices.
  • The module usually supports redundant inputs to ensure high reliability and safety.
• Outputs:
  • Relay outputs for controlling safety-related functions.
  • Outputs are designed to handle high safety integrity, often featuring redundancy.
• Standards Compliance:
  • Compliant with IEC 61508 (Functional Safety) and ISO 13849 (Safety of Machinery) standards.
  • Suitable for use in applications requiring SIL (Safety Integrity Level) or PL (Performance Level) certification.

Functionality:

• Safety Monitoring:
  • Provides continuous monitoring of connected safety circuits to detect faults and ensure safe operation.
• Redundancy:
  • Incorporates redundancy features for critical components to enhance overall system reliability.
• Diagnostics:
  • Includes diagnostic functions to aid in troubleshooting and system maintenance.
  • Offers indicators for operational status and fault conditions.
• Configuration and Testing:
  • Supports configuration for specific safety applications and can include testing functions to verify system performance.

Application Scenarios:

• Industrial Automation:
  • Used in machinery and equipment to ensure compliance with safety regulations and to protect operators.
• Process Control:
  • Applicable in industries such as chemical processing, oil and gas, pharmaceuticals, and manufacturing where safety is crucial.
• Emergency Stop Systems:
  • Can be integrated into emergency stop circuits to enable rapid and safe shutdown of machinery in case of an emergency.
• Safety-Critical Systems:
  • Ideal for applications requiring high safety integrity, including automated production lines, robotic systems, and critical infrastructure.
