Technical Specifications:

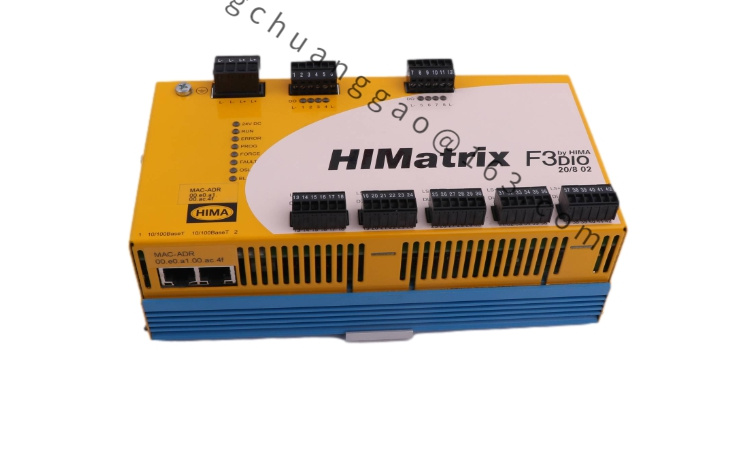

1. Model: Hima F3DIO20802
2. Type: Digital Input/Output Module
3. Power Supply: Typically operates on 24V DC.
4. Inputs:
   • Digital Inputs: 16 channels
   • Type: Typically for binary signals; can handle various input types including dry contact and voltage signals.
   • Signal Level: Designed for standard digital logic levels.
5. Outputs:
   • Digital Outputs: 16 channels
   • Type: Typically relay outputs or transistor outputs.
   • Load Capacity: Handles a variety of load types and capacities based on application requirements.
6. Communication: Interfaces with HIMA safety controllers and other control systems via standard communication protocols.

Features:

• High Integrity: Designed to meet high safety standards, often used in SIL3 or SIL4 safety applications, adhering to IEC 61508 and ISO 13849 standards.
• Redundancy and Diagnostics: Includes features for redundancy and diagnostics to enhance reliability and maintainability.
• Modular Design: Part of a modular system that can be easily integrated into HIMA’s safety controllers.
• Real-Time Operation: Provides real-time processing capabilities for safety-critical functions.

Applications:

• Industrial Automation: Used in various industries for safety-related functions and control.
• Process Control: Ideal for safety-critical applications in chemical processing, oil and gas, and power generation.
• Machine Safety: Ensures safe operation of machinery by managing critical input and output signals.

Benefits:

• Enhanced Safety: Contributes to high safety integrity by providing reliable input and output functions for safety systems.
• Regulatory Compliance: Helps achieve compliance with stringent safety regulations and standards.
• Versatility: Offers flexibility for integration into different safety and control systems, accommodating a range of application requirements.
