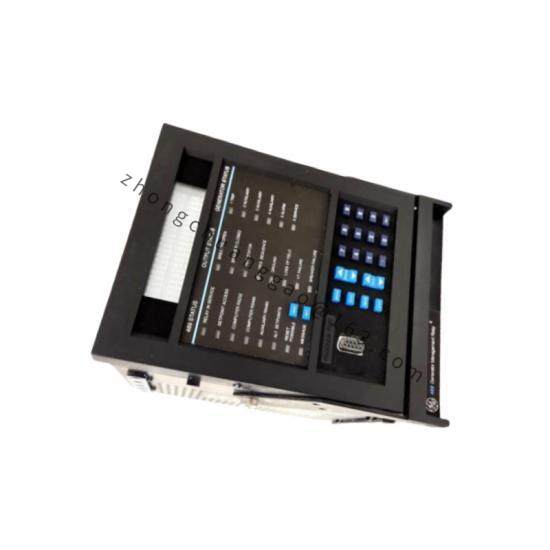

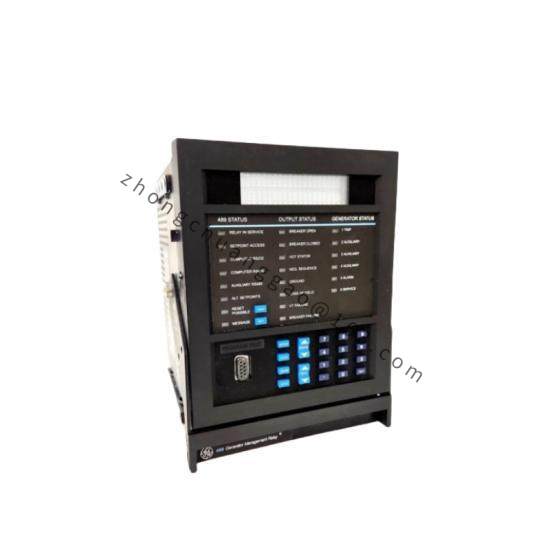

General Electric 489-P5-HI-A20-E – Advanced Generator Management Relay, 200 Characters or Less
The GE 489-P5-HI-A20-E is a sophisticated industrial control relay designed for advanced generation management. It offers enhanced monitoring and control capabilities with a focus on efficiency, reliability, and safety.
Detailed content
Analog Current Output Isolation:36 Vpk (isolated with RTDs and analog inputs)
Case Drawout:Fully drawout (automatic CT shorts)
Digital Inputs:489 Sensor Supply 24 V DC at 20 mA max
Impedance Time Delay:0.1 to 100.0 s in steps of 0.1
Negative Sequence Overcurrent Pickup Level:3 to 100% FLA in steps of 1
Phase Distance Characteristics:Offset mho
RTD Inputs Sensing Current:5 mA
Sequential Trip Configurable:Assignable to Digital Inputs 1 to 7
Shipping Weight:7.7 kg or 17 lbs.
Thermal Model Curve:Biasing Phase Unbalance, Hot/Cold Curve Ratio, Stator
Engineered with advanced technology, the GE-FANUC 489-P5-HI-A20-E offers unparalleled accuracy and reliability in monitoring and controlling generator operations.
Featuring a robust design for harsh environments, this relay ensures uninterrupted power supply even in extreme conditions, making it ideal for mission-critical applications.
The inclusion of RTD inputs allows for precise temperature sensing, crucial for maintaining optimal performance and safety in industrial settings.
With its comprehensive feature set, including isolation capabilities and customizable trip settings, the 489-P5-HI-A20-E provides unparalleled flexibility and control.
Backed by GE-FANUC‘s commitment to quality and innovation, this product is designed to meet the stringent demands of modern industrial environments, offering peace of mind to operators through dependable performance.
