Technical Specifications:

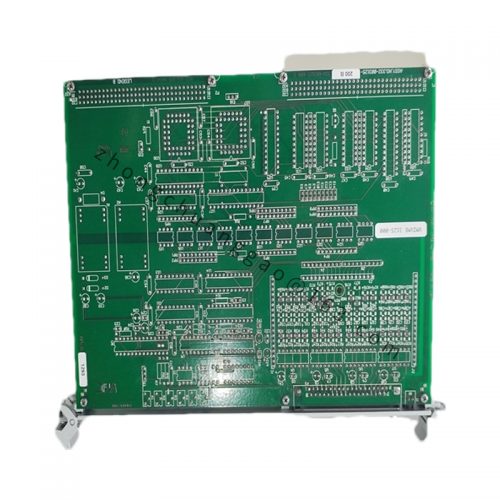

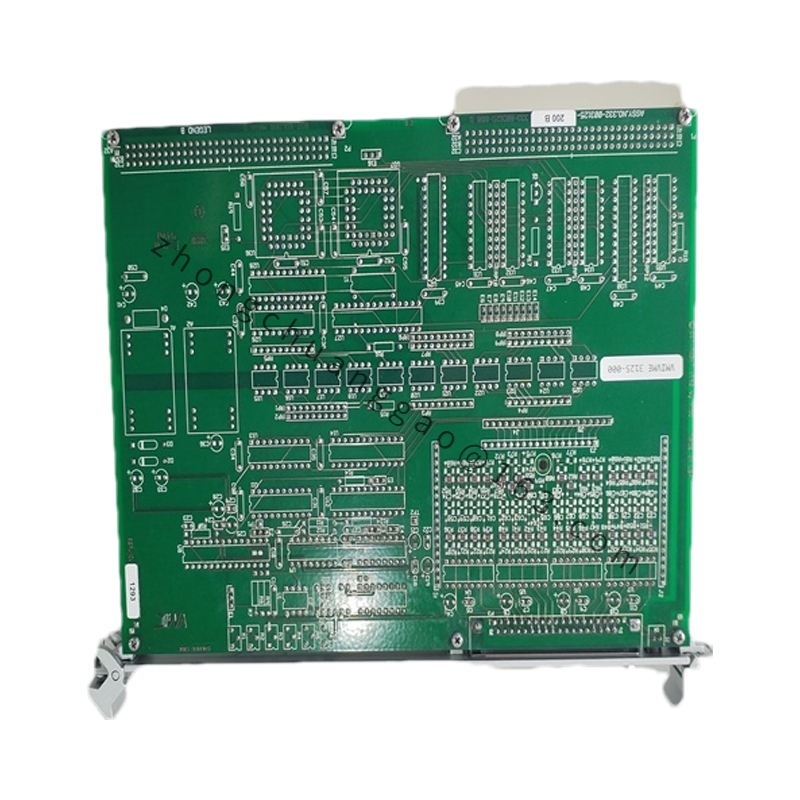

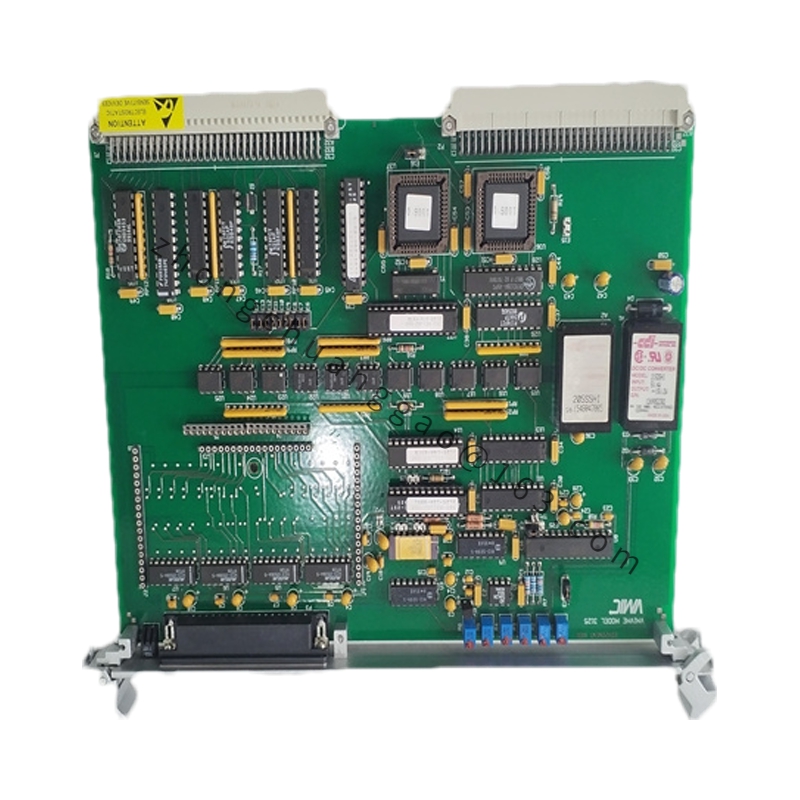

1. Model: GE VMIVME-3125
2. Type: Multifunction Analog Input Module
3. Form Factor:
   • Bus Type: VMEbus
   • Slot Size: 6U, compatible with standard VME-based systems.
4. Analog Input Channels:
   • Channels: 16 analog input channels.
   • Input Type: Configurable as differential or single-ended.
   • Resolution: 16-bit resolution for precise measurements.
   • Input Range: Supports multiple input ranges including ±10V, 0-10V, and ±5V. Exact ranges should be confirmed with the datasheet.
   • Sampling Rate: High-speed sampling capability. Specific rates should be detailed in the datasheet.
5. Performance Characteristics:
   • Accuracy: High accuracy, typically ±0.01% of full scale. Exact accuracy details should be verified in the datasheet.
   • Noise Immunity: Designed to reduce noise and interference, ensuring reliable data acquisition.
6. Communication Interfaces:
   • Data Bus Interface: VMEbus interface for communication with the host system.
   • I/O Connectivity: Standard connectors for interfacing with external analog signals.
7. Power Supply:
   • Voltage Requirements: Operates with VMEbus power supplies, typically +5V DC and ±12V DC. Specific power requirements should be confirmed in the datasheet.
   • Power Consumption: Power consumption details should be verified in the datasheet.
8. Environmental Specifications:
   • Operating Temperature: Designed to operate within an industrial temperature range. Specific temperature limits should be checked in the datasheet.
   • Humidity: Rated for operation in controlled environments. Humidity tolerance details should be confirmed in the datasheet.

Functional Features:

1. High Performance:
   • Processing Power: Capable of high-speed data acquisition with 16-bit resolution.
   • Flexibility: Supports a wide range of input configurations for various applications.
2. Versatile Analog Input Capabilities:
   • Channel Configuration: 16 analog input channels that can be configured for different signal types.
   • Configurable Ranges: Allows for flexible input ranges to accommodate various analog signals.
3. Communication and Integration:
   • VMEbus Integration: Seamless integration into VMEbus systems, making it easy to incorporate into existing setups.
   • Data Handling: Efficiently handles analog data acquisition tasks through the VMEbus interface.
4. Reliability and Durability:
   • Robust Design: Built to operate reliably in industrial environments with long-term durability.
   • Long-Term Operation: Designed for continuous operation with minimal maintenance.
5. System Integration:
   • Compatibility: Compatible with VMEbus systems, facilitating integration with other modules and systems.
   • Software Support: Supported by various software platforms for configuration, monitoring, and data analysis.

Applications:

1. Industrial Automation:
   • Control Systems: Ideal for industrial control systems requiring accurate analog input.
   • Data Acquisition: Facilitates precise measurement of analog signals in industrial processes.
2. Process Control:
   • Measurement and Monitoring: Used in process control systems where detailed analog signal measurement is essential.
3. Testing and Simulation:
   • Experimental Systems: Employed in testing and simulation environments where high-resolution analog data is needed.
4. Research and Development:
   • Technology Development: Useful in R&D for developing and testing new technologies involving analog signal processing.

Additional Information:

• Software Compatibility: The VMIVME-3125 is compatible with various software tools for configuration and monitoring.
• Installation: Designed for easy integration into VMEbus-based systems with standard mounting and connection options.
• Certification and Compliance: Adheres to industry standards for safety, performance, and electromagnetic compatibility (EMC). Specific certification details should be verified with the datasheet.
