GE SR745-W2-P5-G5-HI – Advanced Transformer Protection System

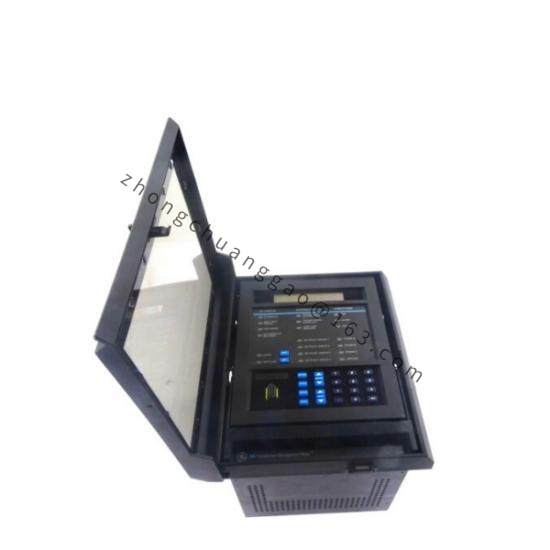

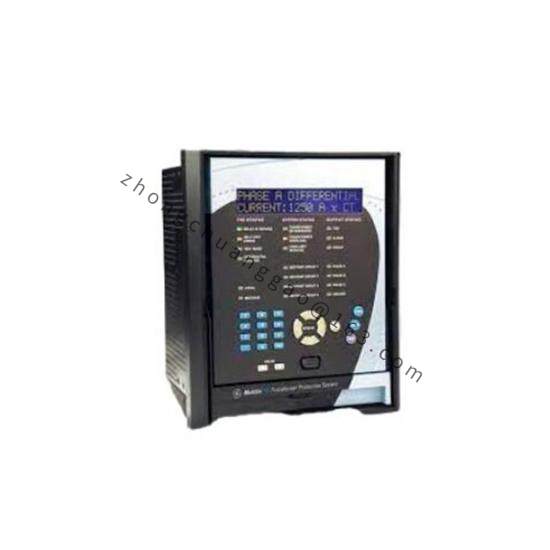

The GE SR745-W2-P5-G5-HI is an advanced model designed for managing and protecting transformers, autotransformers, and reactors. It features an enhanced display and keypad for easy manual entry of setpoints, contributing to extended system life.
Detailed content
Model:745-W2-P5-G5-HI-A-E-H
Winding Per Phase:2
Resistant Temperature Device (RTD) Type:3-wire; 100 Ω Nickel, 120 Ω Nickel, 100 Ω Platinum
Analog Output Maximum Load:10 kΩ at 0 to 1 mA, 600 Ω at 4 to 20 mA
Maximum Continuous Voltage Output:273 V
Display Type:40-character Enhanced LCD
Dimensions:9”H x 7 ⅛”D x 7”W
Control Power Range:90 to 300 V DC; 70 to 265 V AC at 48 to 62 Hz
The GE SR745-W2-P5-G5-HI is an advanced transformer protection system designed specifically for industrial applications.
With its enhanced 40-character display and expanded keypad, it provides an intuitive interface for setting and adjusting parameters.
The system is designed to be mounted on a standard 19-inch panel, offering flexibility in installation options.
The front panel includes several LEDs that indicate real-time status and error conditions, enabling quick troubleshooting and maintenance.
The system supports multiple RTD types, ensuring compatibility with a wide range of transformer configurations.
With its robust design and precise monitoring capabilities, the GE SR745-W2-P5-G5-HI ensures reliable protection and extends the lifespan of your critical electrical assets.
