Model Number:469-P5-HI-A20-E

Brand:General Electric

Module Type:Motor Management Relay

Operating Voltage:90 – 300 VDC, 70 – 265 VAC

Frequency Range:48-62 Hz

Current Transformer:5 CT secondaries

Analog Outputs:4

Digital Inputs:9 opto-isolated inputs

Phase Current Inputs:1 A phase CT secondaries

Temperature Inputs:Multiple RTD inputs (100 ohm Nickel, 120 ohm Nickel, 10 ohm Copper, 100 ohm Platinum)

Enclosure Rating:20-X

Pollution Degree:2

Insulation Voltage:300 V

Software:EnerVista 469 Setup

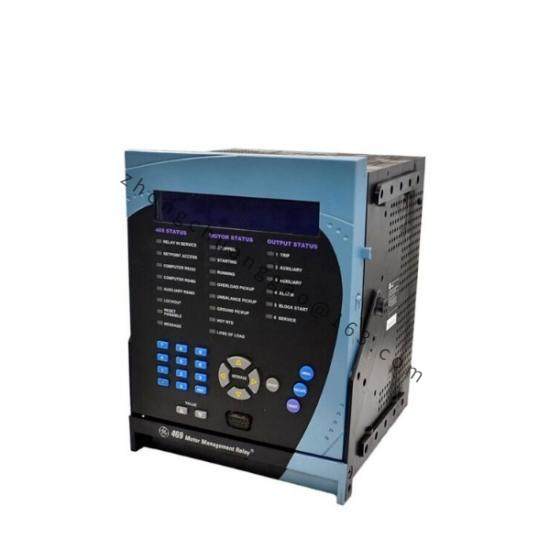

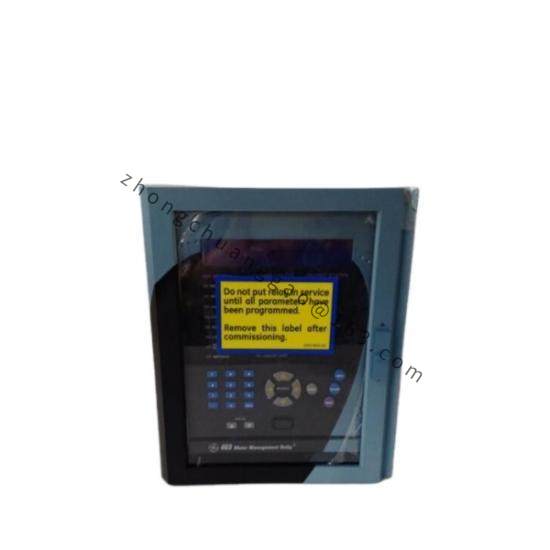

    The GE SR469-P5-HI-A20-E is an advanced Motor Management Relay designed to provide superior protection and control for medium to large motors. It features multiple RTD inputs that can determine the actual temperature and hottest point of the motor system, ensuring reliable performance even under harsh conditions. With four analog outputs and nine opto-isolated digital inputs, this relay provides comprehensive monitoring capabilities. Its enhanced front panel with a larger LCD display makes it easy to read and operate. The unit is designed to operate within a wide temperature range (-40°C to +60°C) and is suitable for chemical environments thanks to its conformal coating. The 469-P5-HI-A20-E supports a variety of phase current inputs up to 5A and operates within a frequency range of 48-62 Hz. With its robust design and advanced features, this relay is ideal for industrial applications where precision and reliability are paramount.
