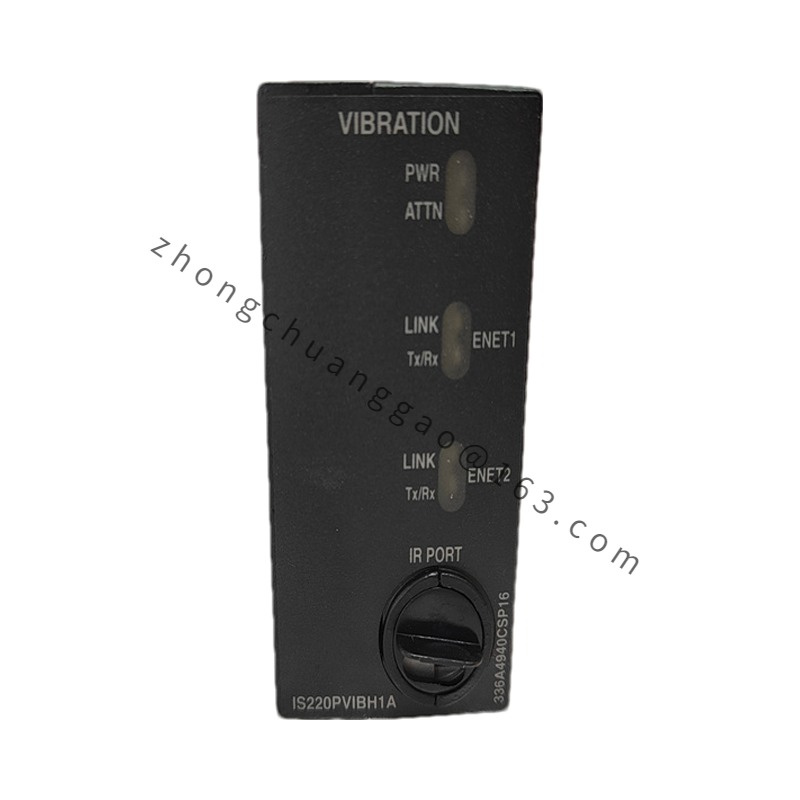

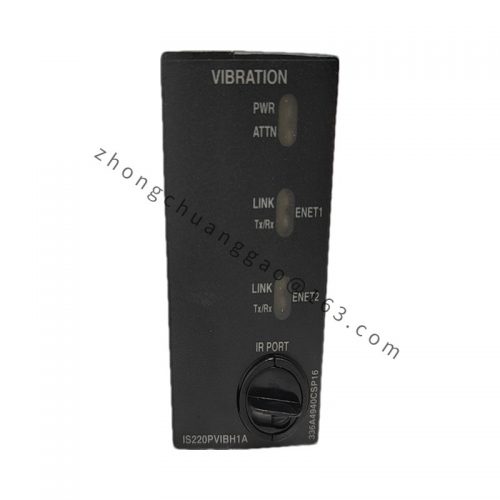

GE IS220PVIBH1A 336A4940CSP16
The GE IS220PVIBH1A is a vibration monitor module that is part of the Mark VIe control system, which is widely used for industrial automation and control applications. It serves to monitor vibrations and proximities from various sensors, ensuring the system remains in optimal condition by detecting any deviations caused by mechanical vibrations.
Detailed content
Key Features:
- Sensor Compatibility: The module supports different sensor types, such as proximitors, integrated output accelerometers, Velomitors, and seismics. Channels 1 through 8 are used for these sensors, while channels 9 to 12 support only proximitors. Channel 13 can handle Keyphasor or proximity-type signals.
- Dual Ethernet Connections: It features dual RJ45 Ethernet ports for communication. The unit supports data frame rates ranging from 3.125 Hz to 100 Hz, making it highly adaptable to various operational needs.
- Processor and Signal Processing: The processor is connected to an acquisition board, and the system includes an auto-reconfiguration feature, which allows for the seamless replacement of I/O packs without the need for manual configuration.

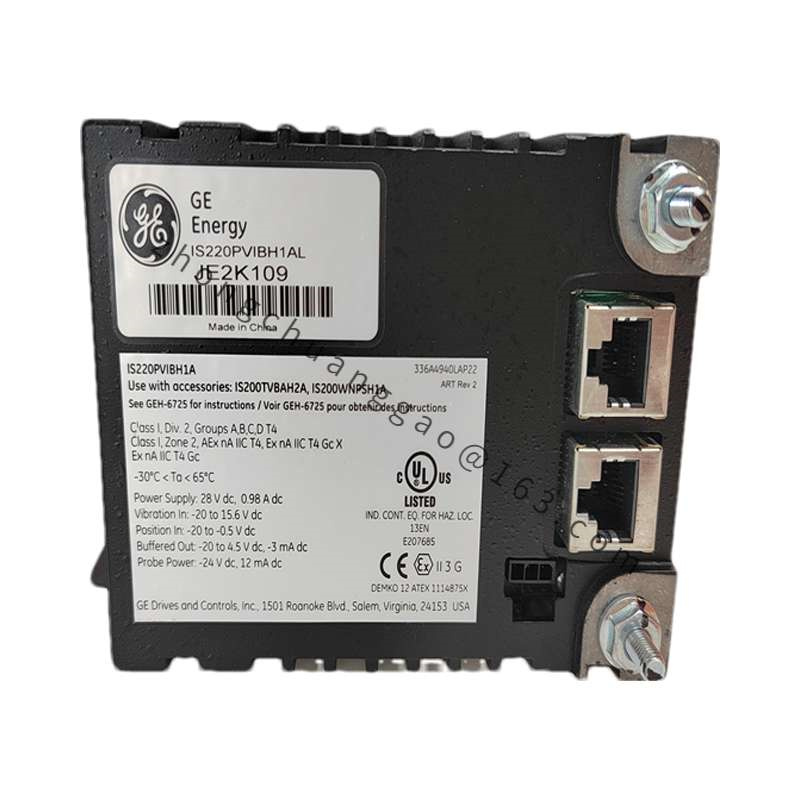

- Installation: The unit connects directly to a terminal board via a DC-37 pin connector and can be powered using a 3-pin power input. LEDs indicate status and diagnostics, ensuring clear system monitoring during operations.
