GE IS220PTURH1A
Application Scenarios:
- Turbine Control: Primarily used in the GE Mark VI Speedtronic turbine control system for managing gas and steam turbines
- Power Generation: Found in power plants, where precise and reliable control of turbine operations is critical
- Industrial Automation: Can be integrated into broader industrial automation systems, leveraging its communication capabilities and reconfiguration features
- Critical Process Control: Suitable for applications requiring highly reliable and responsive control of turbine-driven processes
Detailed content
Technical Specifications:
- Manufacturer: General Electric (GE)
- Model: IS220PTURH1A
- Compatibility: Designed specifically for GE’s Mark VI Speedtronic turbine control system
- Processor: Features a processor board with a 667 MHz Freescale 8349 processor (as mentioned in related products)
- Power Supply: Typically powered by a 12W, 18-36V DC source (as mentioned in related Mark VIe system components)
- Ethernet Ports: Equipped with two 10/100 Ethernet ports for communication

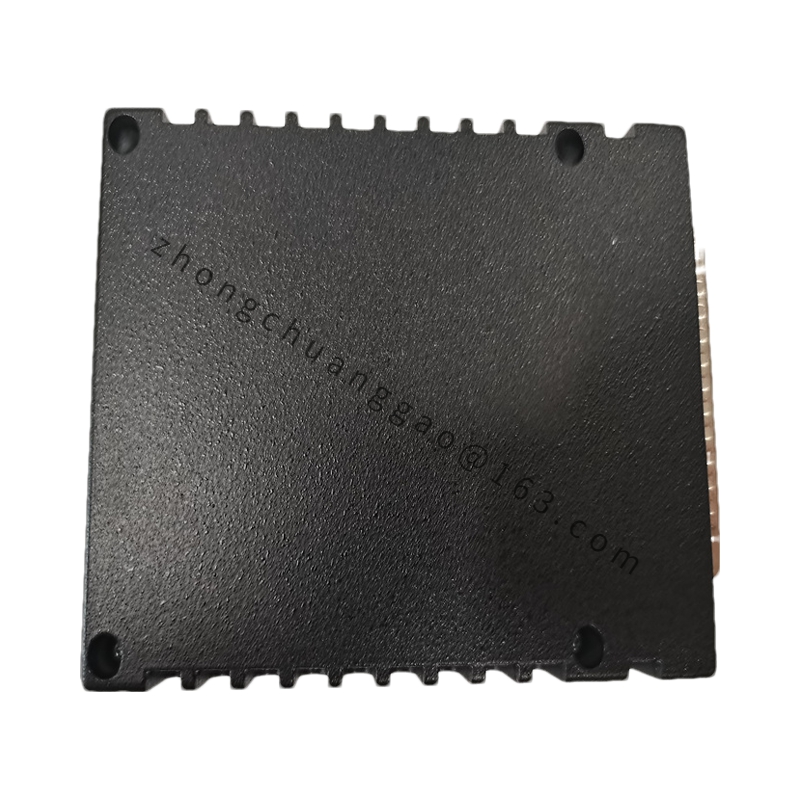

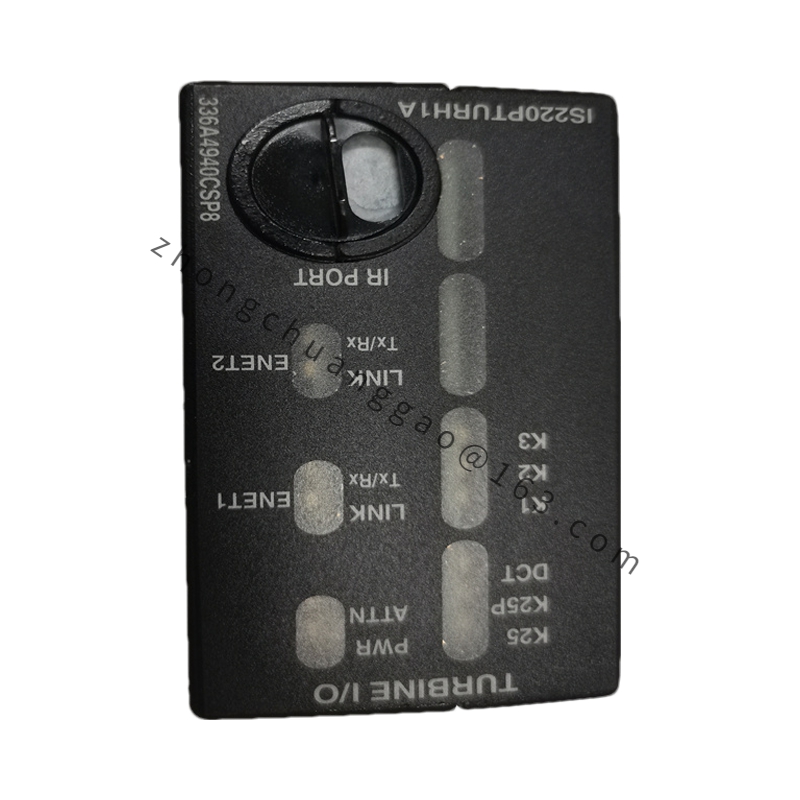

- Physical Design: Features a black enclosure with air circulation openings, housing a processor board, a second board for turbine control, and an analog acquisition auxiliary board
- Temperature Range: Operates within a temperature range of 0°C to 65°C, even at maximum rated temperature
- Reconfiguration Capability: Allows for automatic reconfiguration, downloading firmware, parameters, and configurations from the controller to the I/O package
Functional Characteristics:
- Communication Interface: Provides an electrical interface between the turbine control terminal board and one or two Ethernet networks
- Output Connection: Outputs are achieved through a DC 62-pin connector connected to the relevant terminal board
- Speed Detection: Equipped with a four-channel passive magnetic speed input interface, capable of detecting speeds as low as 2 RPM to determine turbine zero speed
- Automatic Reconfiguration: Enables automatic reloading of basic, boot, firmware, and parameter configurations from the controller
- Modbus Support: Compatible with Modbus protocols, allowing for seamless integration into larger control systems
