Technical Specifications

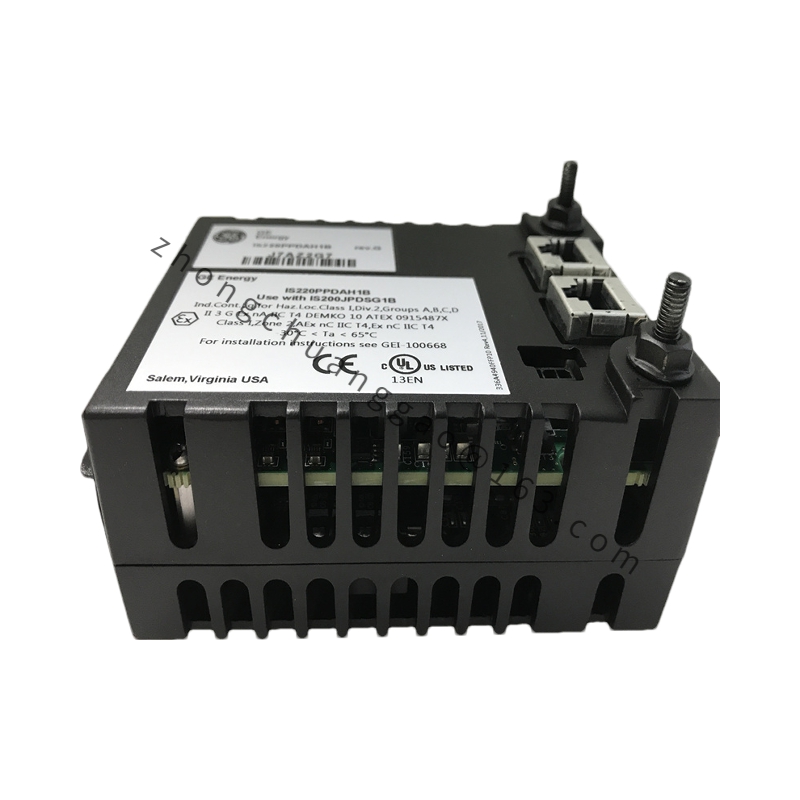

• Model: IS220PPDAH1B
• Type: Single-slot CPU Module
• Processor: 80386EX with a speed of 25MHz
• Memory: Maximum user program memory of 32K bytes
• Communication Interfaces:
  • Built-in serial port supporting SNP/SNP-X slave protocols
  • LAN port supporting multidrop, Ethernet, FIP, Profibus, GBC, GCM, and GCM+ option modules
• Operating Temperature: 0°C to 60°C (32°F to 140°F)
• Storage Temperature: -55°C to 85°C
• Humidity: 5% to 95% (non-condensing)
• Power Requirements: +5 VDC, 670 mA
• Physical Dimensions: 110 mm × 70 mm × 35 mm
• Weight: 0.5 kg
• Protection Rating: IP67

Functional Characteristics

• High-Speed Processing: Capable of fast data processing with a typical scan rate of 0.22 milliseconds per thousand instructions (msec/K)
• Extensive Connectivity: Offers multiple communication options, allowing seamless integration with various control systems and networks
• Extensibility: Equipped with one CPU baseplate and seven expansion and/or remote baseplates, supporting a range of additional modules and functionalities
• Versatile Programming: Supports a wide range of programming features, including shift registers, override, battery-backed clock, PCM/CCM compatibility, periodic subroutine interrupts, floating-point mathematics, and RAM and flash memory storage
• Sensor Isolation and Power Distribution: Provides sensor isolation and power distribution, ensuring reliable and accurate data acquisition
• Data Processing and Analysis: Capable of collecting and processing data from various sensors and instruments, providing valuable insights into system performance
• Fault Diagnosis and Alarming: Incorporates fault diagnosis capabilities, detecting potential issues and triggering alarms for prompt resolution

Application Scenarios

• Industrial Automation: Used in various industrial automation systems, controlling and monitoring critical processes and equipment
• Gas Turbine Monitoring and Control: Specifically designed for monitoring and controlling gas turbines, ensuring their safe and efficient operation. It can monitor parameters such as temperature, pressure, vibration, and speed
• Power Generation: Found in power plants, where it contributes to the overall efficiency and reliability of power generation equipment
• Manufacturing Process Control: Utilized in manufacturing processes, where precise control and monitoring are essential for quality assurance and production efficiency
• Energy Management: Assists in energy management systems, optimizing energy consumption and reducing operational costs
