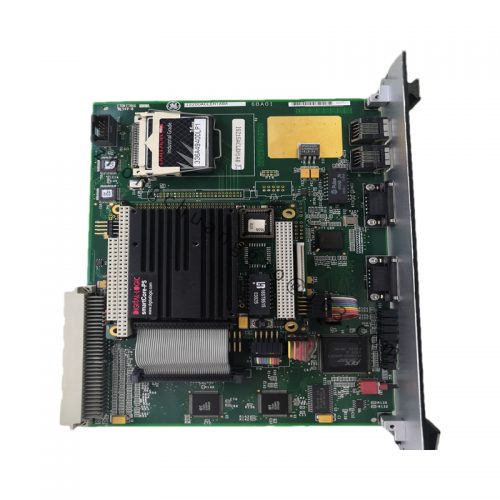

GE IS215ACLEH1A

Additional Information:

  • Redundancy and Reliability: Although specific details on redundancy may vary, GE’s automation products are often designed with redundancy in mind to ensure high availability and reliability.
  • Support and Documentation: GE provides comprehensive support and documentation for its products, including manuals and guides that can assist in installation, configuration, and troubleshooting.
  • Customization: Depending on the specific application, IS215ACLEH1A can be customized or integrated with other GE automation products to meet unique requirements.
WhatApp
WeChat

Detailed content

Technical Specifications:

  • Model: IS215ACLEH1A
  • Brand: GE (General Electric)
  • Processor Type: 80386EX
  • Processor Speed: 25 MHz
  • Operating Temperature: 0 to 60°C (32 to 140°F)
  • Typical Scan Rate: 0.22 msec/K
  • Maximum User Program Memory: 32K bytes
  • Power Supply: +5 VDC, requiring 670 milliamps
  • Ports:
    • Built-in serial port supporting SNP/SNP-X slave protocols
    • LAN port supporting multidrop, Ethernet, FIP, Profibus, GBC, GCM, and GCM+ option modules

Functional Characteristics:

  • Control Platform: Part of the EX2100 series, designed as a single-slot CPU module with one CPU baseplate and 7 expansion and/or remote baseplates.
  • Communication Protocols: Supports standard communication protocols such as MODBUS, TCP/IP, and OPC, allowing for seamless integration into various automation systems.
  • Processor Capabilities:
    • Supports shift registers, override, battery-backed clock, PCM/CCM compatibility, and periodic subroutine interrupts.
    • Features floating-point math capabilities and RAM and flash memory storage for data retention and program execution.
  • Indicators: Equipped with LED indicators (e.g., Active, OK, ENET, Status, Flash) for monitoring the CPU and system status.
  • Software Features:
    • Basic Input/Output System (BIOS) for initializing and recognizing other hardware components.
    • Supports serial loading of operating systems.

Application Scenarios:

  • Industrial Automation: IS215ACLEH1A is suitable for various industrial automation applications where high-reliability and real-time control are crucial.
  • Process Control Systems: Can be integrated into process control systems for monitoring and controlling industrial processes.
  • Machine Control: Used in machines requiring precise and timely control, ensuring smooth operation and reduced downtime.
  • Safety Systems: Can be employed in safety-critical systems, ensuring compliance with safety standards and regulations.
