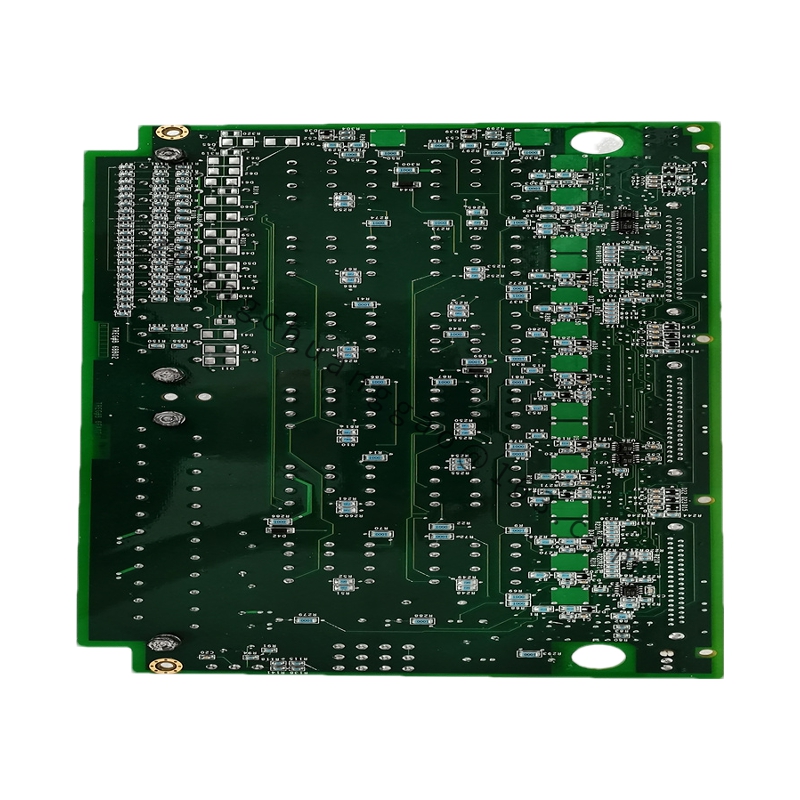

Technical Specifications:

• Brand: GE
• Model: IS200TREGH1BDC
• Type: Emergency Trip Terminal Board
• Series: VIe Series
• Relay Count: 12 relays arranged in two rows of six
• Relay Colors: White and black
• Connector Type: DC-37 pin connector for cable connections
• Electrical Parameters:
  • Voltage: 220V
  • Current: 5A
  • Resistance: 5Ω
• Physical Dimensions:
  • Overall Size: 302mm x 220mm (approx.)
  • Specification Code: 5SHX2645L0004mm (as per one source, dimensions may vary)
• Operating Temperature Range: -40°C to +85°C
• Humidity Range: 5% to 95% (non-condensing)

Functional Characteristics:

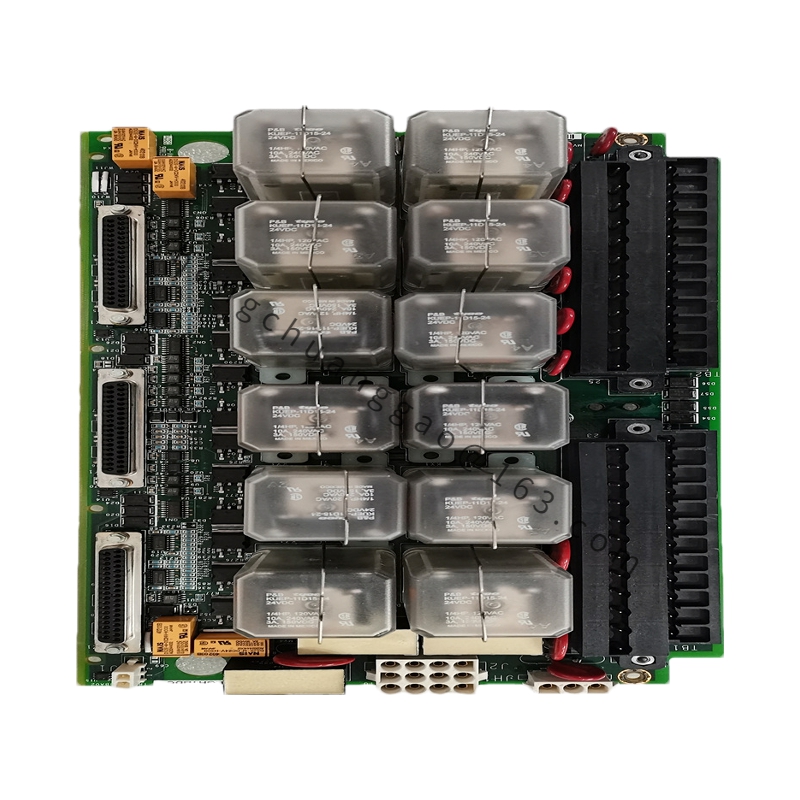

• Relay Configuration: Each relay features a silver metal wire on top, with relays arranged in a neat two-row format.
• Voltage Transformer (PTS) Inclusion: Contains two voltage transformers (PTS) for bus and generator voltage inputs.
• I/O Condition Speed Signal Input: Provides inputs for condition speed signals from I/O packages.
• Protection Features: Serves as a backup protection device in Mark VIe or Mark VleS control systems, alongside SPRO and PPRO/YPRO.
• Main Trip Relay Functionality: PTUR, YTUR, TTUR, and main trip relay terminal boards provide primary protection.
• Installation Options: Designed to be mounted on DIN rails or bolted onto metal plate assemblies.

Application Scenarios:

• Gas Turbine Control Systems: IS200TREGH1BDC is primarily used in gas turbine control systems, ensuring safe and reliable operation.
• Backup and Primary Protection: Provides both backup and primary protection functions to prevent unexpected shutdowns and ensure system stability.
• Power Generation: Widely used in power generation facilities where gas turbines are employed for energy production.
• Industrial Processes: Can also be found in various industrial processes requiring high-precision control and safety measures.
