GE IC755CSW07CDA
Application Scenarios:
- Manufacturing: Used as an HMI in manufacturing environments to monitor and control production lines, machines, and processes.
- Automation: Ideal for controlling and monitoring automation systems in factories, buildings, and other industrial settings.
- Energy: Can be used in the energy sector to monitor and control power plants, transmission lines, and other energy-related equipment.
- Transportation: Suitable for transportation systems, such as traffic signals, railway signals, and airport equipment, providing real-time monitoring and control.
- Process Control: Widely used in process control applications, such as SCADA (Supervisory Control and Data Acquisition) systems.
Detailed content
Technical Specifications:
| Specification | Details |
|---|---|
| Brand | GE (often associated with GE Fanuc Automation) |

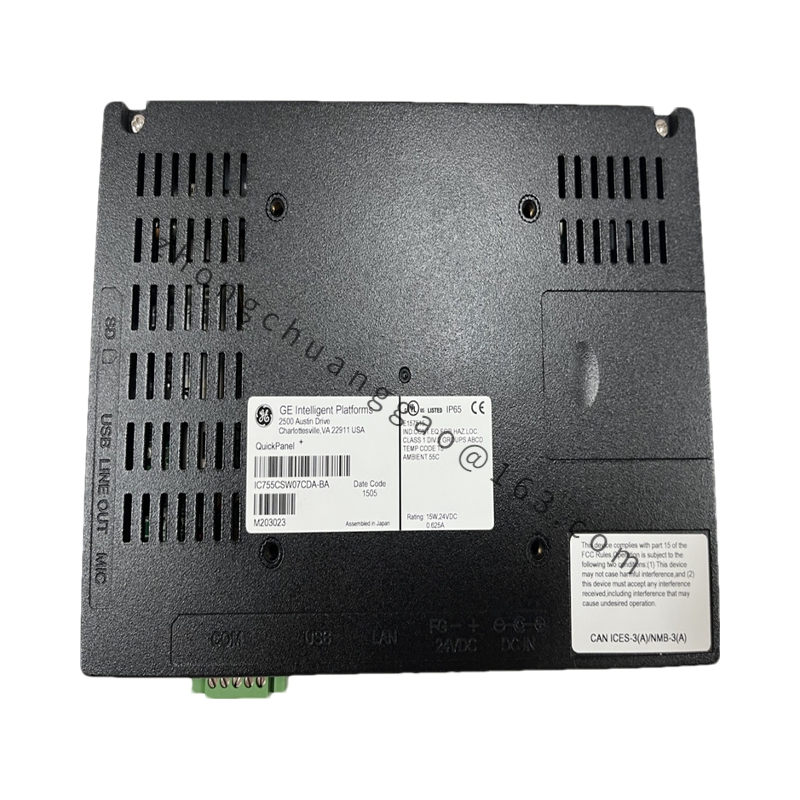

| Model | IC755CSW07CDA |
| Type | Human-Machine Interface (HMI) Device |

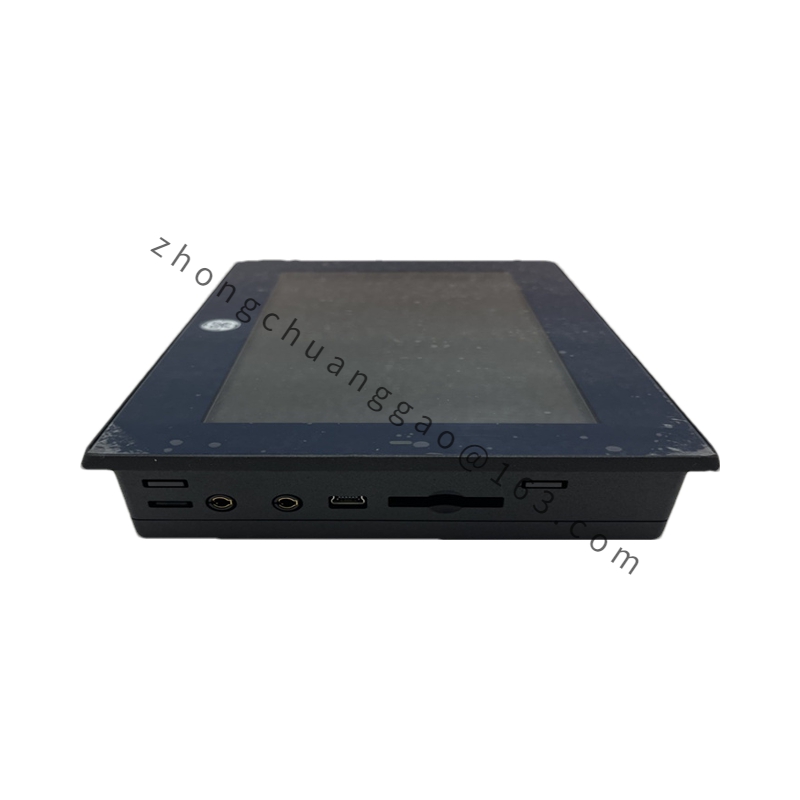

| Display | 7-inch widescreen with 800 x 480 pixels resolution |
| Touch Technology | Multi-touch input interface |
| Processor | Intel Freescale i.MX535 1 GHz ARM Cortex A8 |
| Memory | 512 MB DDR2 SDRAM, 256 MB SLC NAND Flash, 512 KB SRAM |
| Operating System | Pre-installed Windows Compact Embedded 7 |
| Power Supply | +24VDC input voltage, allowing ±20% fluctuation, via 3-pin Phoenix connector |
| Maximum Power Consumption | 15 watts |
| Cooling Method | Natural convection cooling |
| Operating Temperature | 0°C to 55°C |
| Operating Humidity | 85% relative humidity |

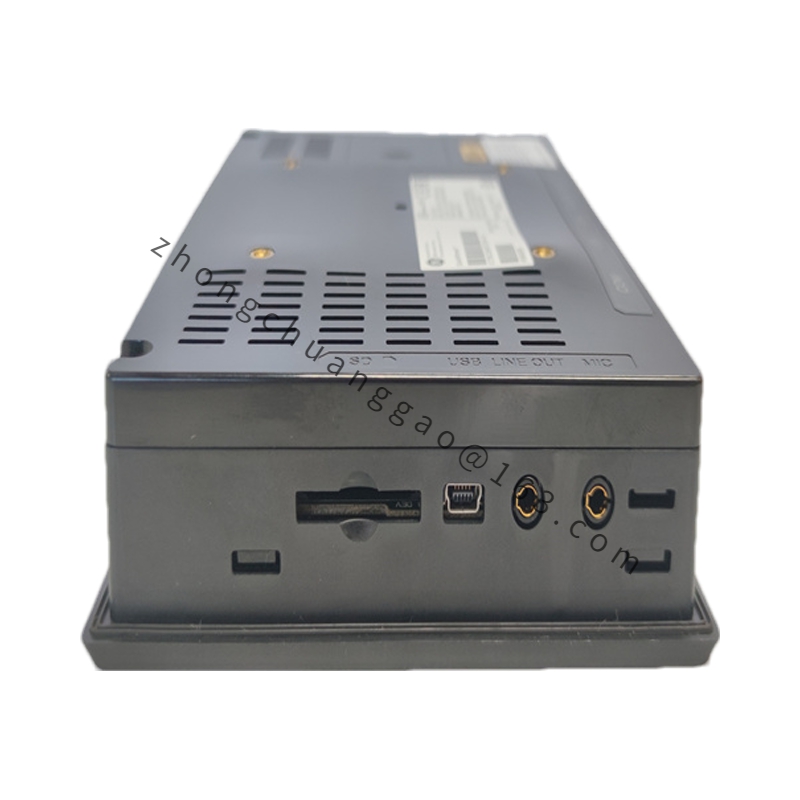

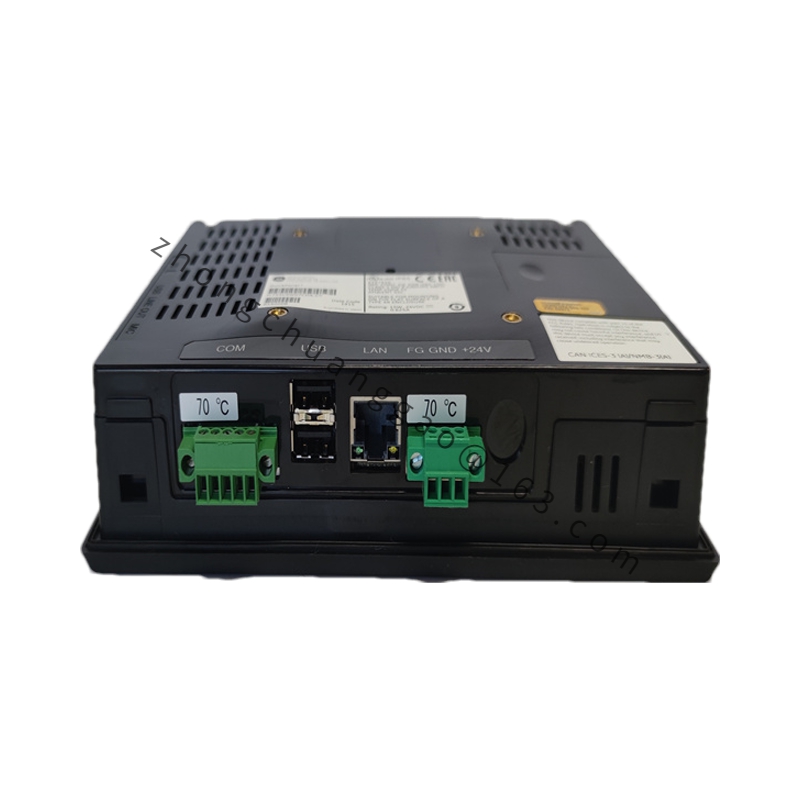

| Communication Interfaces | Ethernet I/P port, RS485/RS232 (depending on source), USB ports, SD/SDHC card slot |
| Installation Compatibility | Panel mount or VESA 75 standard bracket mount |
| Storage and Expansion | SD/SDHC removable card slot for memory expansion |
Functional Characteristics:
- High-Resolution Display: The 7-inch widescreen display with 800 x 480 pixel resolution provides clear and detailed visuals for monitoring and control.
- Multi-Touch Interface: The multi-touch input interface enhances operator interaction, making it intuitive and efficient.
- Durable Design: The device is designed to withstand industrial environments, withstanding dust, vibration, and shock.
- Powerful Processor: The Intel Freescale i.MX535 1 GHz ARM Cortex A8 processor ensures fast processing speeds for real-time monitoring and control.
- Flexible Connectivity: With Ethernet, RS485/RS232, USB, and SD/SDHC ports, the device can be easily integrated into various industrial networks and systems.
- User-Friendly Operating System: The pre-installed Windows Compact Embedded 7 operating system provides a user-friendly configuration environment and management tools.
