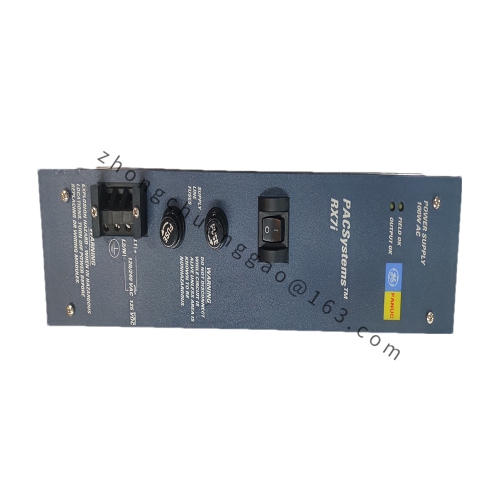

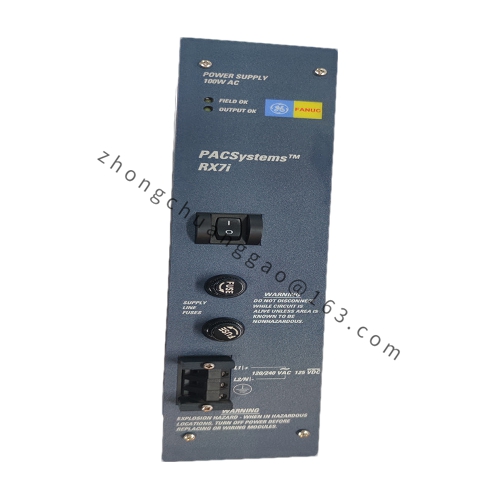

Technical Specifications
Manufacturer: Formerly GE Intelligent Platforms (now part of Emerson Automation Solutions)
Model: IC698PSA100
Type: Power Supply Module / CPU Processor Module (Note: Depending on context, IC698PSA100 can be referred to as either a power supply module or a CPU processor module. For this overview, we will cover both aspects.)
Power Input:
Voltage Range: 85 to 264 VAC (nominal 120/240 VAC), 100 to 150 VDC (nominal 125 VDC)
Frequency: 47 to 63 Hz
Power Output:
Maximum Output Power: 100 Watts
Voltage Outputs:
+5.1 VDC (4.875 to 5.25 VDC), 0-20 A
+12 VDC (11.64 to 12.6 VDC), 0-2 A
-12 VDC (-12.60 to -11.64 VDC), 0-1 A
Connectivity:
Spiral input terminals for power connection
Communication interfaces (if applicable as a CPU module): Ethernet, serial, USB, etc.
Cable Requirements:
AWG #16 (1.3 mm²) solid or stranded copper wire with insulation rating of 75°C (167°F) for external power connection
12 AWG (3.3 mm²) copper wire with insulation rating of 75°C (167°F) for grounding
Functional Characteristics
Power Supply Function:
Provides stable power to other modules and devices within the system
Includes protection against overcurrent, overvoltage, and short circuits
CPU Processor Function (if applicable):
High-performance processor capable of handling complex control logic and algorithms
Adequate memory for storing control programs, data, and parameters
Supports various communication interfaces for data exchange and communication with other devices
Compatible with programming software such as Proficy Machine Edition (if provided by the manufacturer)
Application Scenarios
Industrial Automation:
Used in manufacturing lines, robotic systems, and automated workstations for power supply and/or control logic execution
Process Control:
In chemical, petrochemical, food and beverage, and other process industries, it provides power and/or control for sensors, actuators, and control systems
Power Distribution and Management:
Supports power distribution networks in power plants and substations
Building Automation:
Integrates with building management systems for controlling lighting, HVAC, and security systems
Water and Wastewater Treatment:
Provides power and/or control for water treatment processes and monitoring systems
