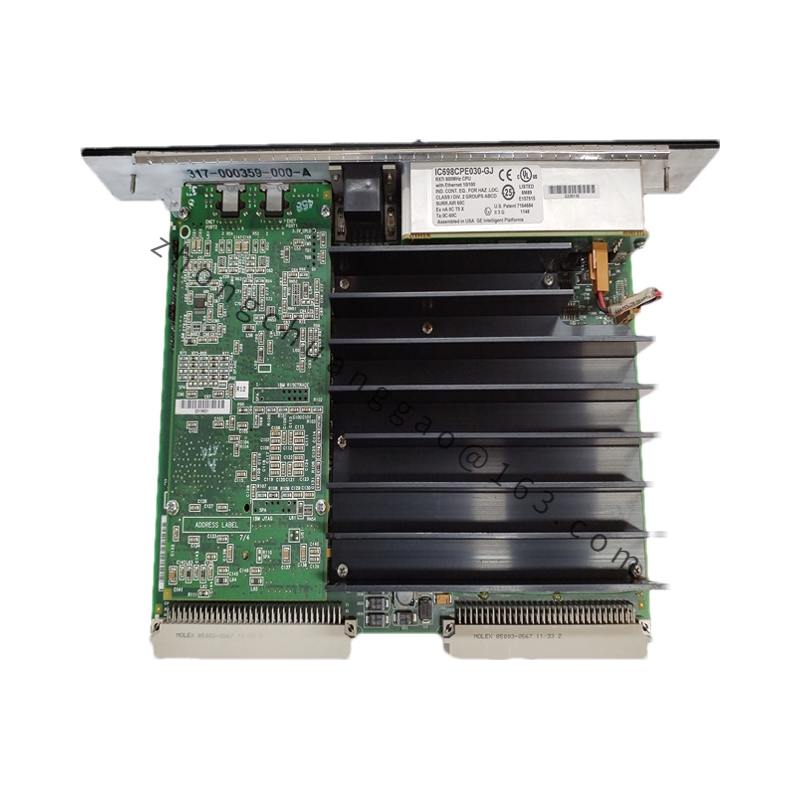

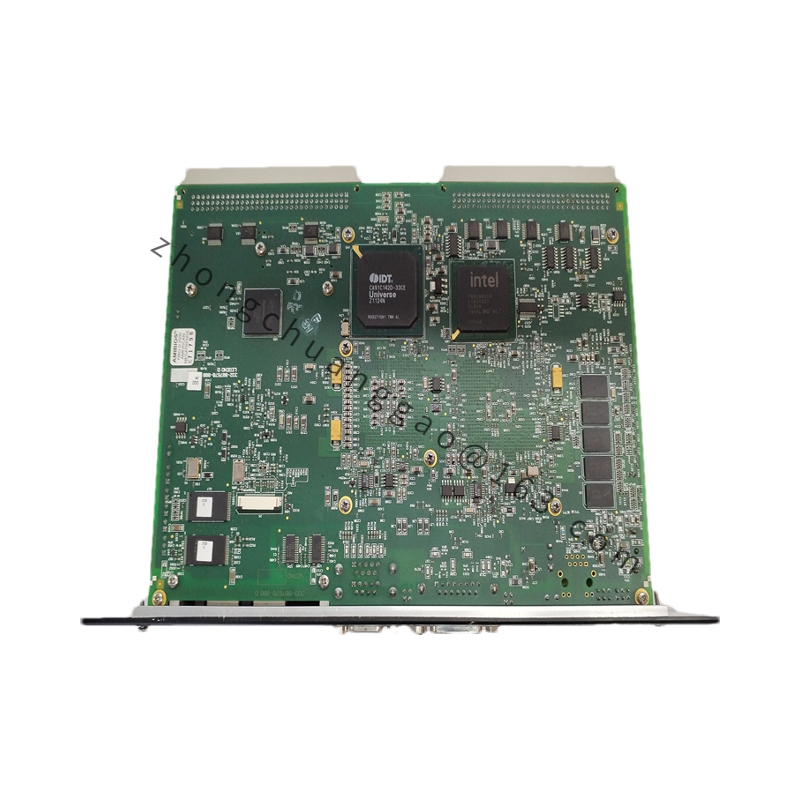

Technical Specifications

• Platform: PACSystems RX7i
• Processor: Equipped with a 600MHz Pentium-M microprocessor, providing robust computational capabilities for complex control algorithms and high-speed data processing.
• Memory:
  • User Memory: 64MB, allowing for the storage of user programs and data.
  • User Flash Memory: 64MB, providing non-volatile storage for programs and data, ensuring data retention during power outages.
• I/O Capacity:
  • Supports up to 32K bits of discrete I/O and 32K words of analog I/O.
  • Capable of downloading up to 512 program blocks, each with a maximum memory size of 128KB.
• Communication Interfaces:
  • Ethernet: Two (2) Ethernet communication ports supporting auto-sensing of network speed and configurable for half-duplex and full-duplex operation modes. Enables high-speed TCP/IP data transmission and supports protocols such as Modbus/TCP server, Modbus/TCP client, SRTP, and Ethernet Global Data (EGD).
  • Serial Ports: One (1) RS-232 port and one (1) RS-485 port, supporting serial communication protocols like Modbus RTU slave, SNP, and serial I/O.
  • Station Manager Port: Dedicated RS-232 port for station management and configuration.
• Programming Support: Compatible with Proficy Machine Edition (ME) Logic Developer configuration software version 4.5 or higher, providing an advanced programming environment that supports multiple programming languages (e.g., ladder logic, structured text, function block diagram, and C).

Functional Characteristics

• Real-Time Control: Capable of executing control programs in real-time, ensuring accurate and responsive control of industrial processes.
• Remote Monitoring and Configuration: Built-in Web server and File Transfer Protocol (FTP) functionality enable remote access and configuration of the CPU via Ethernet ports.
• Modular Design: Part of a modular control system, allowing for easy installation, maintenance, and upgrades.
• Flexibility and Scalability: Supports a wide range of input/output (I/O) modules, including digital, analog, and special function modules, enabling it to be tailored to specific application needs.
• High Reliability: Designed for stable operation in harsh industrial environments, ensuring continuous and reliable control.

Application Scenarios

The GE IC698CPE030 CPU module is well-suited for a variety of industrial automation and control applications, including but not limited to:

• Manufacturing and Process Industries: Used to control and monitor production lines, ensuring efficient and accurate manufacturing processes.
• Energy and Utilities: Deployed in power generation, transmission, and distribution systems to manage energy flow and ensure reliable power supply.
• Oil and Gas: Employed in oil and gas exploration, production, and transportation to automate and optimize processes.
• Water and Wastewater Treatment: Utilized in water treatment plants and wastewater facilities to control and monitor treatment processes.
• Transportation Systems: Integrated into traffic signal control and intelligent transportation systems to optimize traffic flow and enhance road safety.
