Technical Specifications

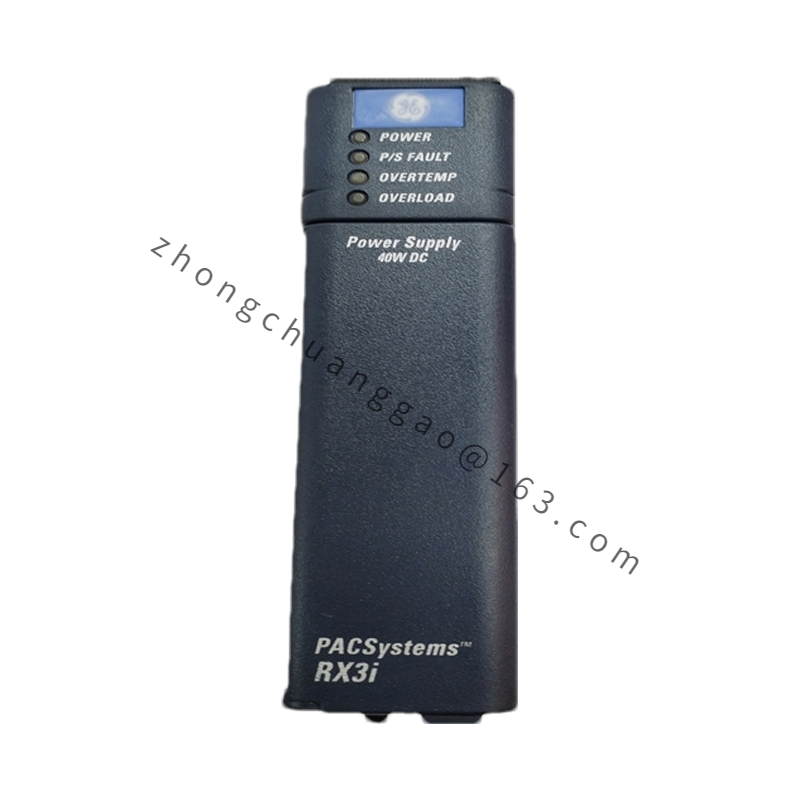

• Model: IC695PSD040F
• Series: PACSystems RX3i
• Type: Power Supply Module
• Rated Voltage: 24V DC (Nominal)
• Input Voltage Range:
  • Startup Mode: 18 VDC to 30 VDC
  • Run Mode: 12 VDC to 30 VDC
• Input Power: 60W
• Load Capacity: 40W
• Output Voltage:
  • Standard: 5.1V DC
  • Typically Used in RX3i Modules: 3.3V DC
• Protection Features: Over-current Protection, Over-temperature Protection

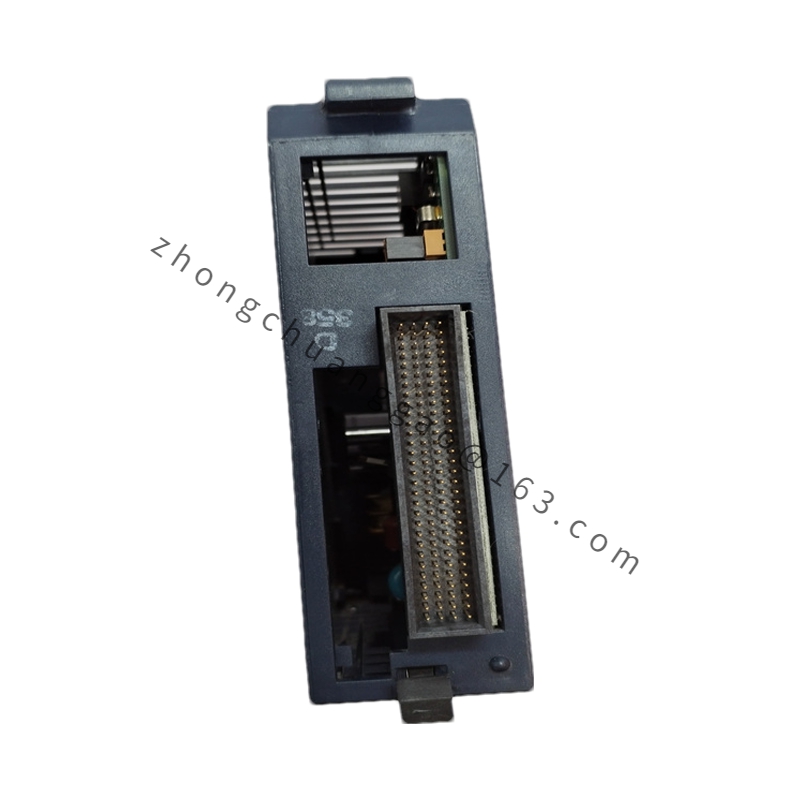

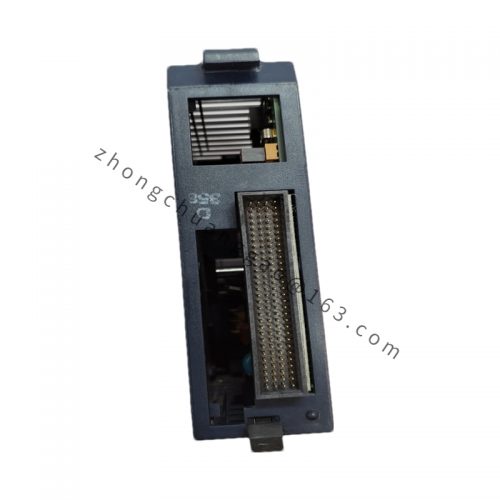

• Dimensions and Mounting: Backplane Mounting
• LED Indicators: For power, P/S fault, over-temperature, and overload status updates
• Current Rating:
  • Output Current: 0 to 6A or 0 to 9A (depending on configuration)
  • Terminal Current Rating: 6A
• Wire Size Compatibility: Accepts wires ranging from 14 AWG to 18 AWG

Functional Characteristics

• High Reliability: Built with industrial-grade components for enhanced durability.
• Overload Protection: Automatically shuts down power supply when overloaded to protect connected equipment.
• Over-temperature Protection: Detects and responds to excessive heat, cutting off power to prevent damage.
• Ease of Installation: Designed for backplane mounting, facilitating quick and straightforward installation and maintenance.
• Compatibility: Compatible with all modules within the PACSystems RX3i series.

Application Scenarios

• Industrial Automation: Provides stable power for various industrial automation systems, ensuring smooth operation of CPU, I/O modules, and other devices.
• Process Control: Suitable for process control systems, supporting automation in industries like chemicals, petroleum, and food processing.
• Machine Automation: Powers machine automation systems, enhancing efficiency and productivity in manufacturing processes.
• Manufacturing: Integral to automated production lines across various manufacturing sectors.
• Infrastructure Automation: Used in water treatment, power generation, and other critical infrastructure facilities for reliable power supply and control.
