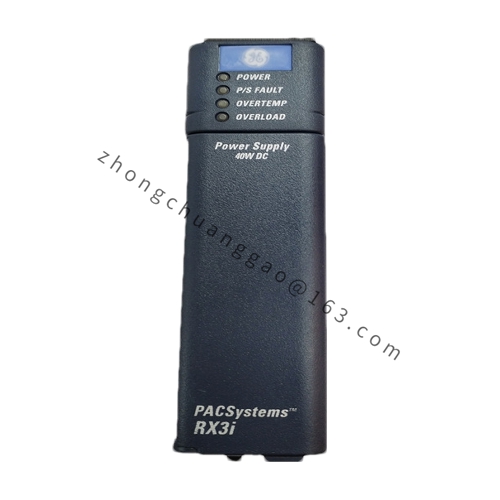

GE IC695PSD040F
Application Scenarios
- Industrial Automation Systems: The IC695PSD040F is primarily used in industrial automation control systems, providing power to various modules and components within the system.
- RX3i PACSystems: As part of the RX3i series, it is designed for seamless integration and compatibility with GE Fanuc’s RX3i PACSystems.
- Automation and Control Equipment: Suitable for powering PLCs, sensors, actuators, and other automation and control devices that require a stable DC power supply.
Detailed content
Technical Specifications
| Attribute | Value |
|---|---|
| Model | IC695PSD040F |
| Series | GE Fanuc RX3i Series |
| Output Voltage | |
| – Standard | 5.1V DC |
| – Additional (typical) | 3.3V DC |
| Nominal Input Voltage | 24V DC |
| Input Voltage Range | |
| – Start-up Mode | 18V DC to 30V DC |
| – Operating Mode | 12V DC to 30V DC |
| Input Power | 60W |
| Load Capacity | 40W |
| Output Current | Up to 6A or 9A (configurable) |
| Ripple and Noise | ≤50mV |
| Surge Current | 4A (for 100ms) |
| LED Indicators | For power, P/S fault, over-temperature, overload status |
| Housing | Blue, high-quality enclosure |
| Terminals | Accepts 14 AWG to 18 AWG wires, 6A terminal rating |
| On/Off Switch | Located behind front door, with protective cover |
Functional Characteristics
- Stable Power Supply: Provides a stable and reliable 24V DC power source for industrial automation systems.
- Protective Features: Includes over-temperature and overload protection to prevent damage to connected equipment.
- LED Indication: Clear visual indicators for monitoring power status, P/S fault, over-temperature, and overload conditions.
- High-quality Materials: Durable enclosure and components ensure long-term reliability and performance in industrial environments.
- Easy Installation and Maintenance: Standard wiring terminals and an accessible on/off switch facilitate easy installation and maintenance.
