Input Voltage Range:
Start-up Mode: 18V DC to 30V DC
Operating Mode: 12V DC to 30V DC
Input Power: 60W
Load Capacity: 40W
Output Current:
Up to 6A or 9A (depending on configuration)
Ripple and Noise: ≤50mV
Surge Current: 4A (for 100ms)

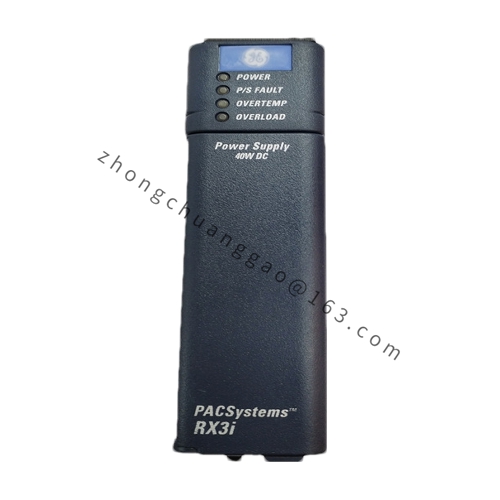

LED Indicators: For power, P/S fault, over-temperature, and overload status
Housing: Attractive blue enclosure made from high-quality materials
Terminals: Accepts wires from 14 AWG to 18 AWG, with a terminal current rating of 6A
On/Off Switch: Located behind the module’s front door, with a protective cover
Functional Characteristics
Stable Power Supply: Provides a stable and reliable power source for industrial automation systems.
LED Indication: Clear visual indicators for monitoring power status and potential faults.
Overload and Over-temperature Protection: Protects against damage caused by excessive load or temperature.
High-quality Materials: Durable and reliable enclosure suitable for industrial environments.
Easy Installation and Maintenance: With standard wiring terminals and an accessible on/off switch.
Application Scenarios
Industrial Automation Control Systems: The IC695PSD040F is primarily used in industrial automation control systems, where it provides stable power to other modules within the system.
RX3i PACSystems: As part of the RX3i series, it is specifically designed to work with GE Fanuc’s RX3i PACSystems, providing a seamless integration and compatibility.
Automation and Control Equipment: Suitable for a wide range of automation and control equipment, including PLCs, sensors, actuators, and other devices that require a stable DC power supply. otective features make it an ideal choi
