Technical Specifications

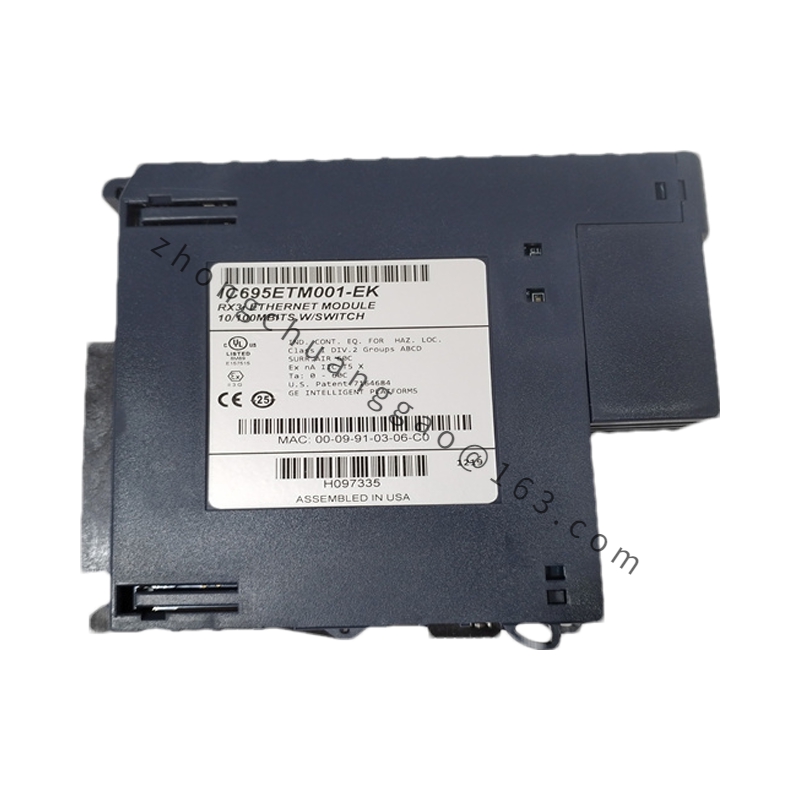

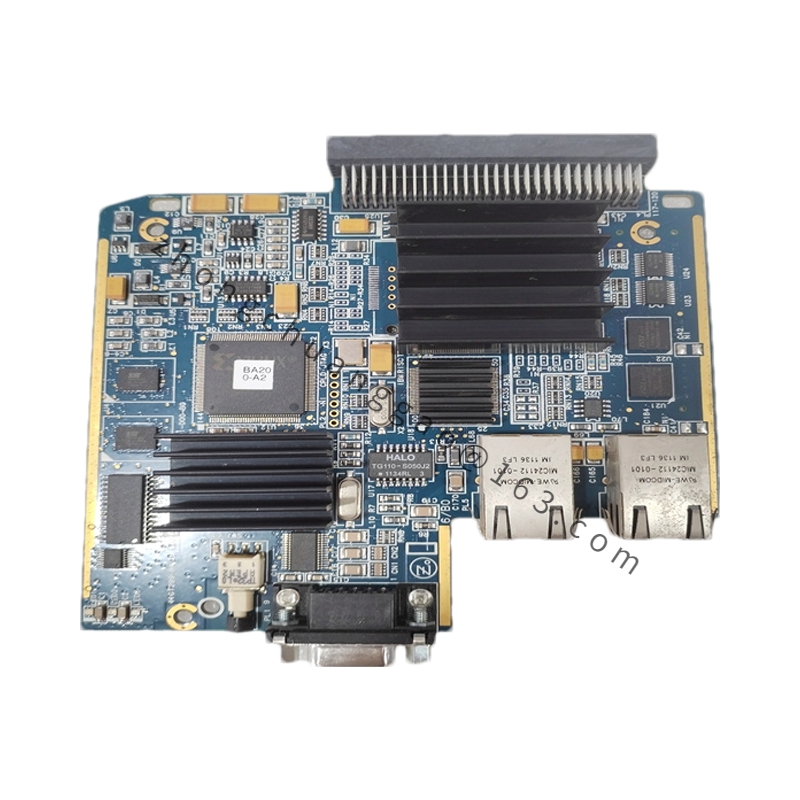

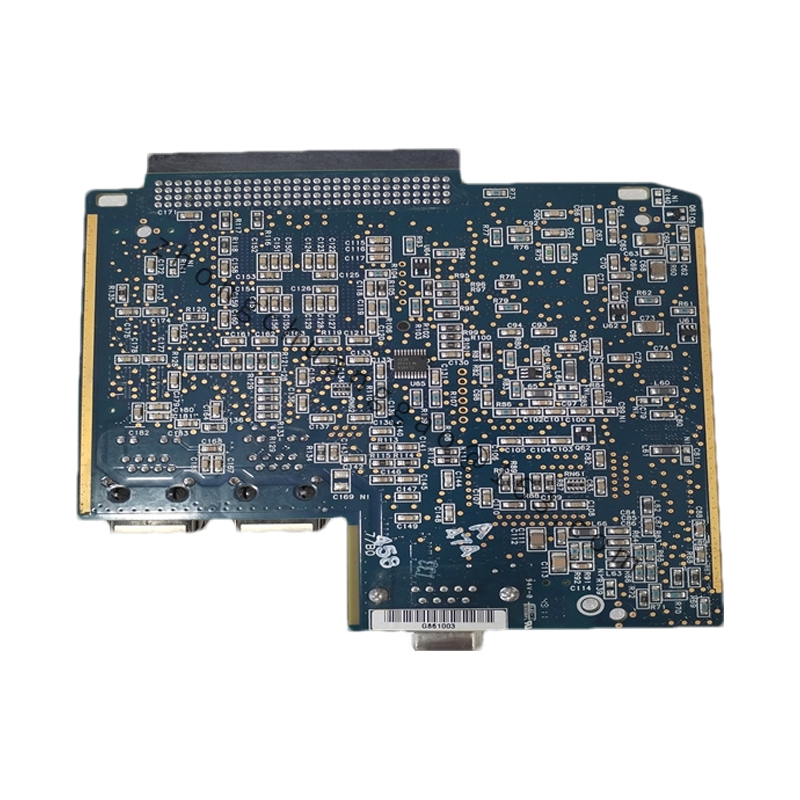

• Model: IC695ETM001
• Series: PACSystems RX3i

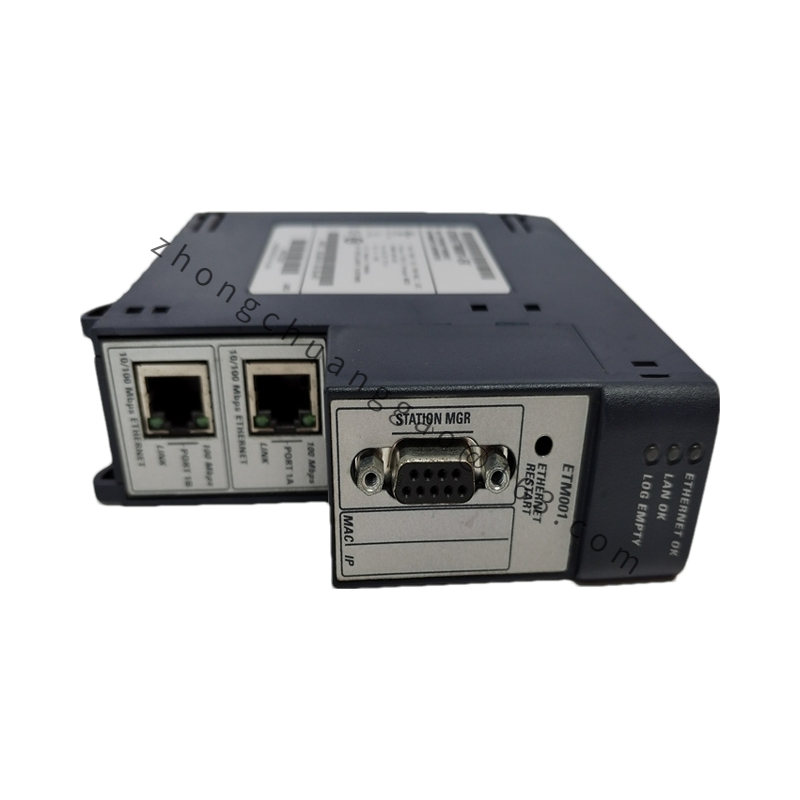

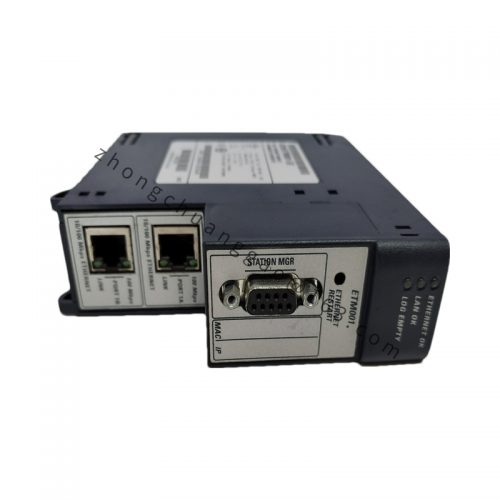

• Ethernet Ports: 2 RJ45 ports
• Transmission Rates: Supports 10/100 Mbps with auto-negotiation
• Ethernet Processor Speed: 200 MHz
• Communication Protocols: Supports TCP/IP, SRTP (Serial Real-Time Protocol), Modbus TCP, EGD (Ethernet Global Data)
• Serial Port: 1 RS-232 serial port supporting 1200 bps to 115200 bps
• Power Consumption:
  • 840 mA @ 3.3 VDC
  • 614 mA @ 5 VDC
• Compatibility:
  • Compatible with RX3i slots
  • Supports hot-swappable with firmware version 2.51 or higher

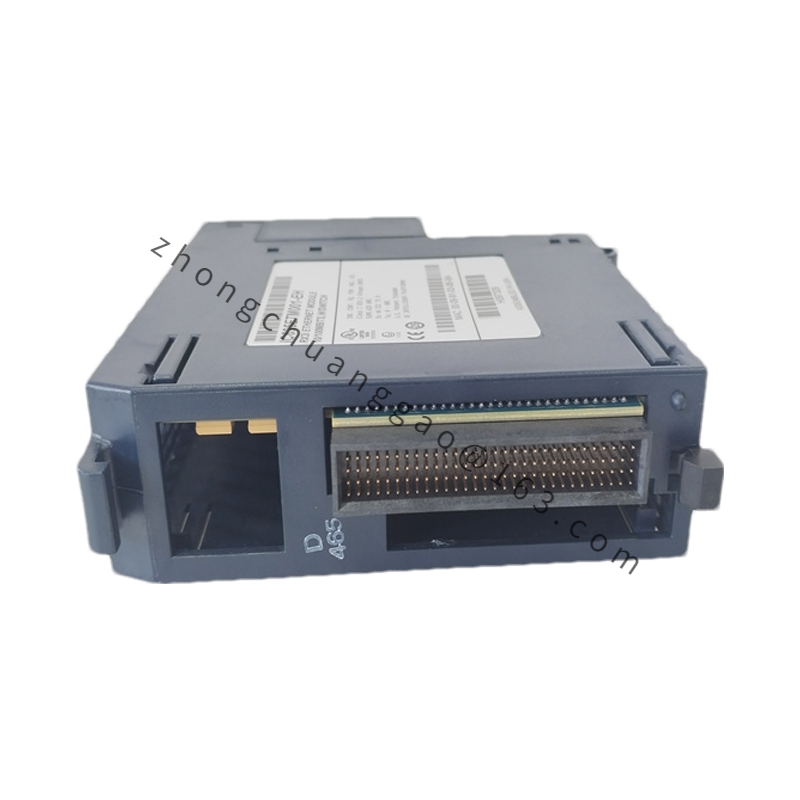

  • Compatible backplanes include IC695CHS007, CHS012, or CHS016

Functional Characteristics

• Ethernet Connectivity: Enables seamless integration with other Ethernet-enabled devices and systems, allowing for high-speed data transfer and communication.
• Protocol Support: Supports a wide range of communication protocols, including Modbus TCP, SRTP, and EGD, providing flexibility and compatibility with various devices and control systems.
• High-Speed Data Transmission: Capable of transmitting data at speeds up to 100 Mbps, making it suitable for real-time control and data collection applications.
• Auto-Negotiation: Automatically detects and configures the Ethernet speed and duplex mode, simplifying network setup and reducing configuration errors.
• Time Synchronization: Supports time synchronization with SNTP (Simple Network Time Protocol) servers, ensuring accurate timestamps for data exchange and logging.
• Diagnostics and Monitoring: Offers comprehensive diagnostics and monitoring capabilities through the embedded station manager, allowing for easy troubleshooting and system health monitoring.
• Hot-Swappable: Can be inserted or removed from the RX3i system while powered on or in operation, minimizing downtime and simplifying maintenance.

Application Scenarios

The GE IC695ETM001 is well-suited for a wide range of industrial automation applications that require reliable Ethernet connectivity and communication. Some common application scenarios include:

• Industrial Control and Automation: For controlling production lines, machinery, and equipment in manufacturing and process industries.
• Data Acquisition: For collecting data from field devices and transmitting it to monitoring or control systems.
• Remote Monitoring and Control: Enables remote access and control of devices and processes over Ethernet networks, improving operational efficiency and reducing downtime.
• Building Automation: For controlling lighting, HVAC (heating, ventilation, and air conditioning) systems, and security systems in commercial and industrial buildings.
• Process Control: In industries such as chemicals, oil and gas, and pharmaceuticals, where precise and reliable control of processes is critical.
