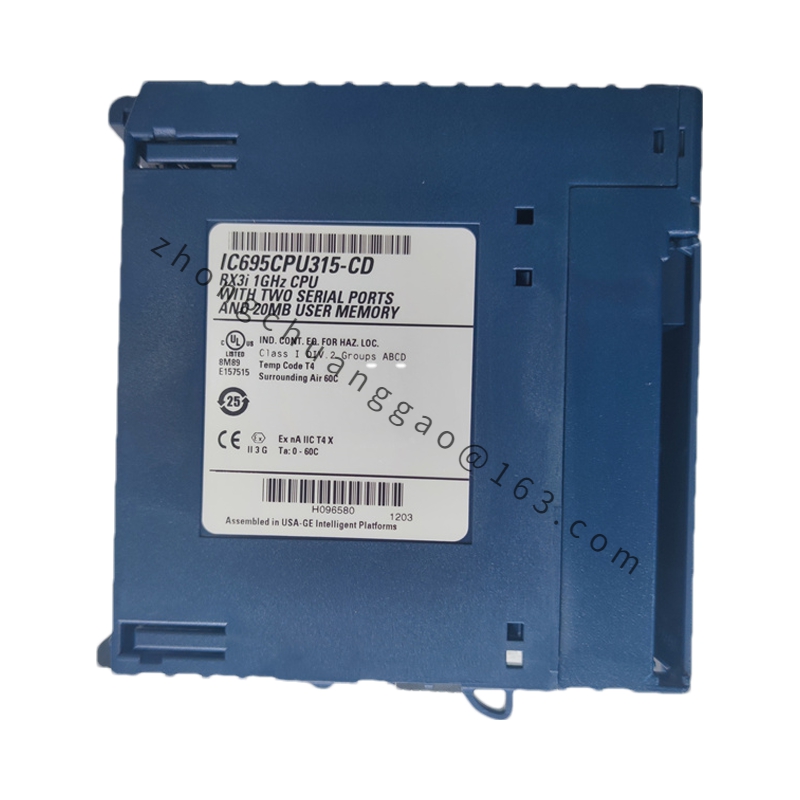

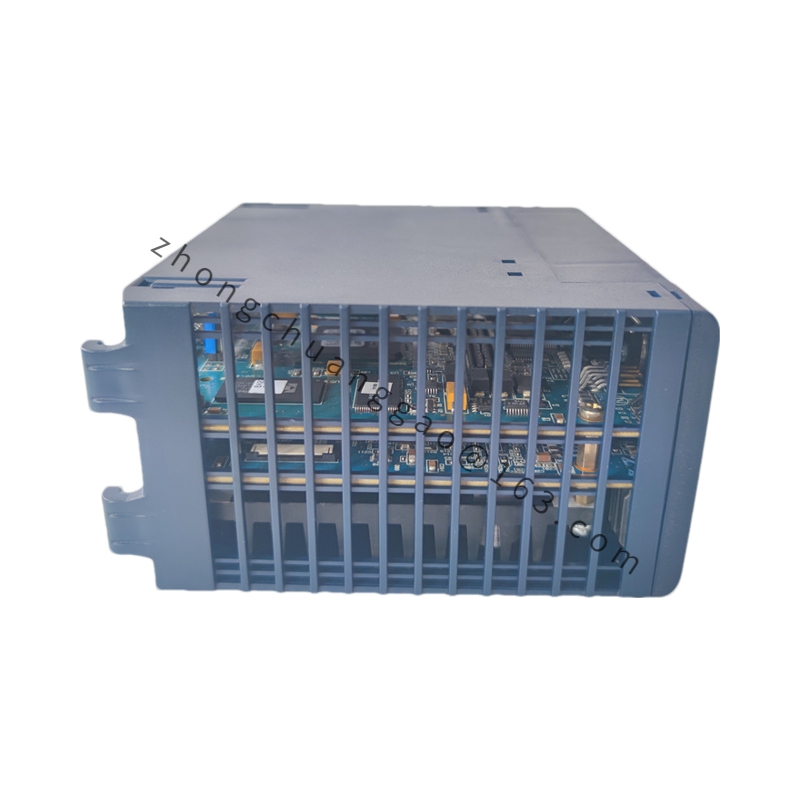

GE IC695CPU315

The GE IC695CPU315 is a highly capable 1 GHz central processing unit (CPU) from the PACSystems RX3i series manufactured by GE Fanuc Automation. This CPU module is designed for use in industrial automation applications, offering advanced performance and versatility.

WhatApp
WeChat

Detailed content

Technical Specifications

  • Model: IC695CPU315
  • Series: PACSystems RX3i
  • Processor: Intel Celeron-M microprocessor running at 1 GHz
  • Memory:
    • User Memory (RAM): 20 MB
    • Flash Memory: 20 MB
  • I/O Capabilities: Capable of up to 32K I/O operations per second
  • Program Block Capacity: Supports up to 512 program blocks, each with a maximum size of 128 KB
  • Communication Interfaces:
    • Dual backplane bus for communication with I/O and intelligent option modules
    • One RS-485 serial port
    • One RS-232 serial port
  • Protocol Support: Supports Serial I/O, Modbus slave and master protocols, and SNP

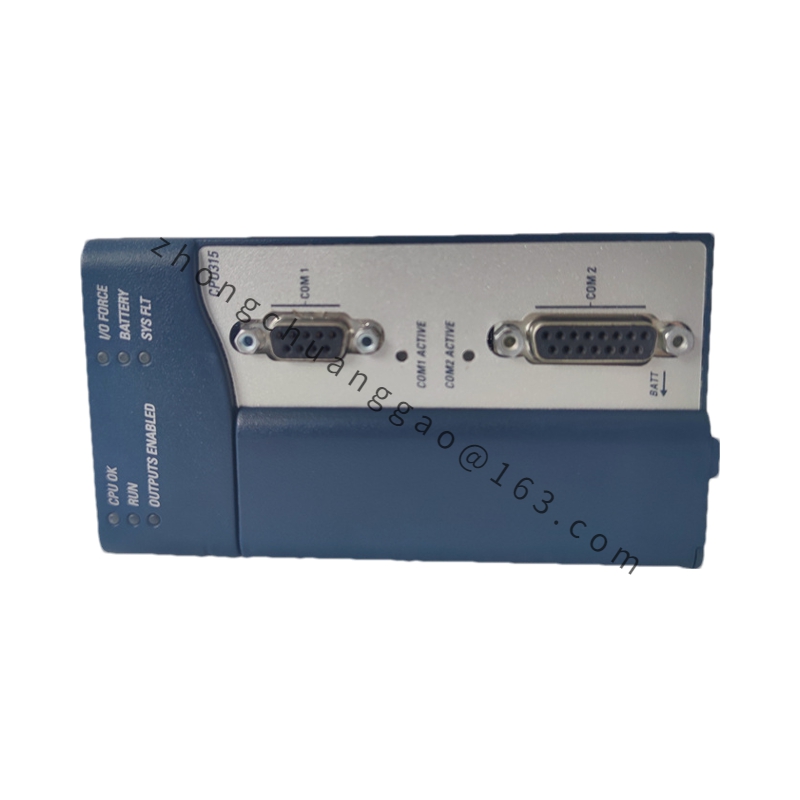

  • Physical Attributes: Front panel with 9-pin and 15-pin connectors for serial ports

Functional Characteristics

  • High Performance: The 1 GHz Celeron-M processor ensures swift processing of control logic and communication tasks.
  • Large Memory Capacity: The 20 MB RAM and 20 MB flash memory provide ample space for storing control programs and data.
  • Advanced Programming Support: Compatible with IEC-approved programming languages such as Ladder Diagram, Structured Text, and Function Block Diagram, as well as C language.
  • Versatile Communication: Supports multiple communication protocols and interfaces, enabling seamless integration with various industrial networks and devices.
  • Flexibility: Allows for automatic allocation of symbol variables using up to 20 MB of user memory.
  • Firmware Upgradability: Firmware can be upgraded within the system, providing access to enhanced features and improved performance.

Application Scenarios

The GE IC695CPU315 is ideal for a wide range of industrial automation applications, including:

  • Machine Control: For controlling and monitoring machines in manufacturing, automotive, and other industries.
  • Process Control: For the real-time control of processes in chemical, oil and gas, pharmaceutical, and food processing plants.
  • Material Handling: Automating material handling systems such as conveyor belts, sorting machines, and warehouses.
  • Remote Monitoring and Control: Enables remote monitoring and control of industrial systems via network communication.
