GE IC695ALG508-AA

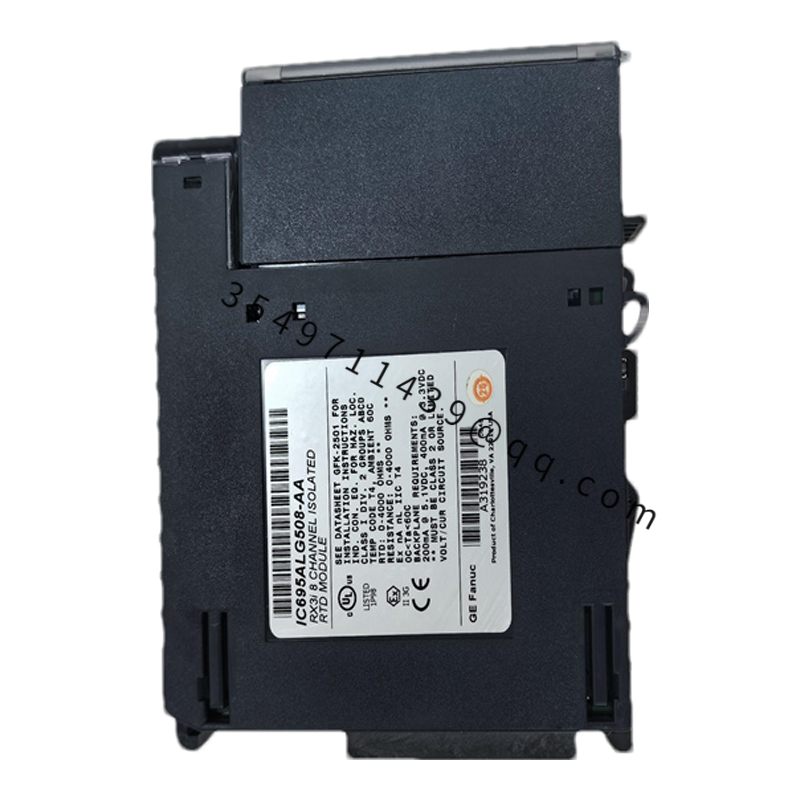

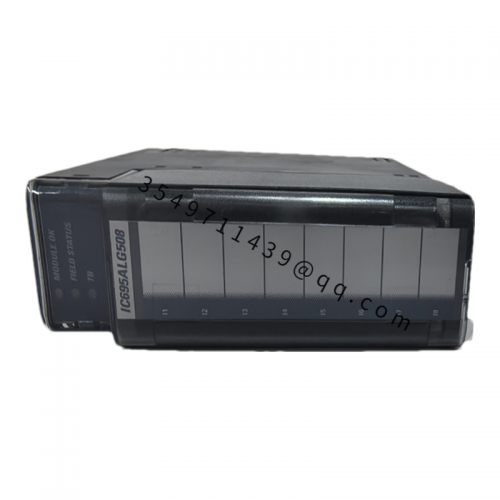

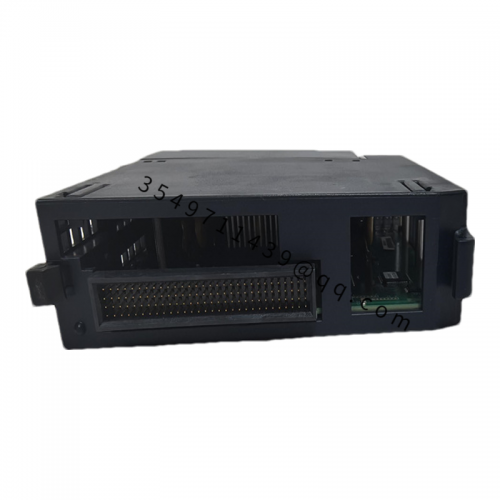

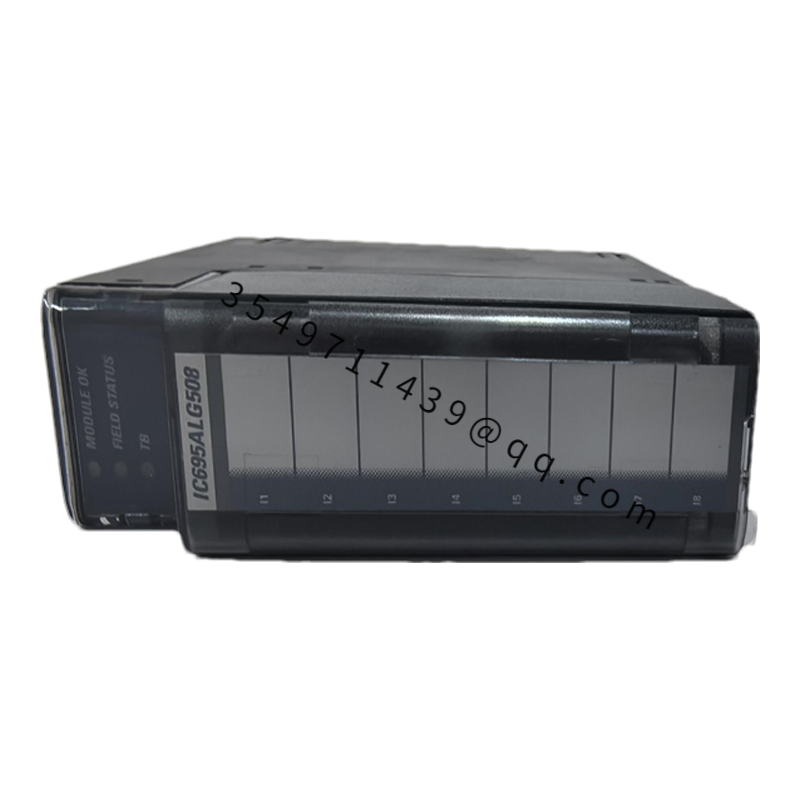

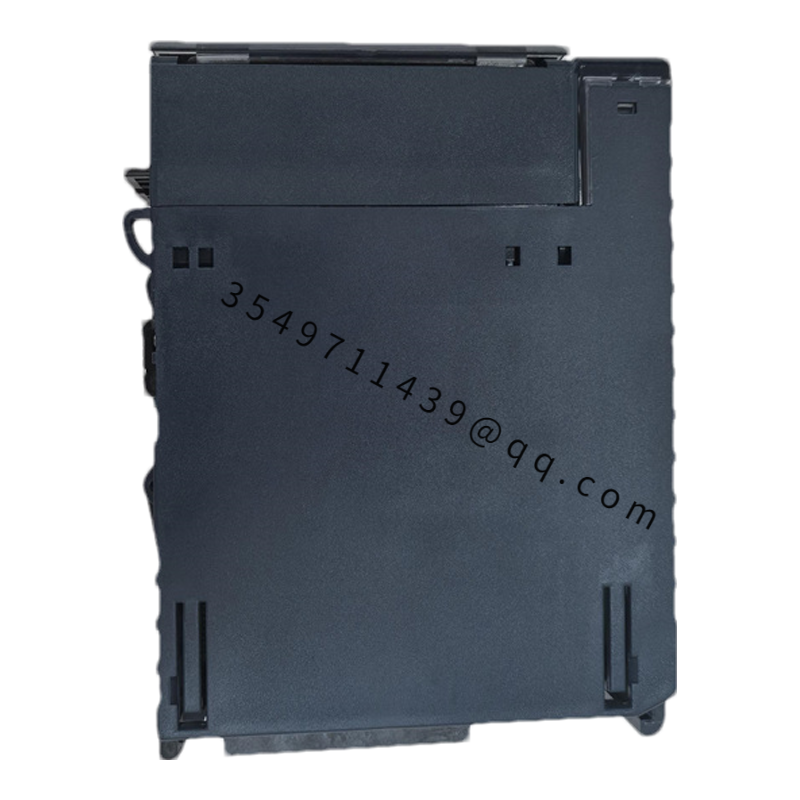

The GE IC695ALG508-AA is a Resistance Temperature Detector (RTD) input module for the PACSystem RX3i Programmable Automation Controller (PAC), previously manufactured by GE Intelligent Platforms (GE IP) and now part of Emerson Automation.

WhatApp
WeChat

Detailed content

Technical Specifications:

  • Number of RTD Input Channels: 8 isolated differential
  • Supported RTD Types: Platinum 385, Platinum 391.6, Nickel 672, Nickel 618, Nickel-Iron 518, Copper 426
  • Supported Resistance Ranges: 0-260, 0-525, 0-1050, 0-2100, 0-3150, 0-4200 ohms
  • Measurement Units: Celsius, Fahrenheit, or Ohms
  • Sensor Configurations Supported: 2-wire, 3-wire, and 4-wire RTD sensors
  • Input Data Format: 32-bit integers or 16-bit IEEE floating-point data in a 32-bit field
  • Optional Notch Filter Settings: 3.28 Hz to 694 Hz per channel
  • Terminal Block Options: Box (IC032TBB694), Extended Box (IC132TBB694), Spring (IC032TBS694), or Extended Spring (IC132TBS695)

Functional Characteristics:

  • Configurable default or hold-last state in response to CPU changes in system faults and operating modes
  • Supports RIUP (Redundant Input Update)
  • Programmable notch filter frequencies per channel
  • Optional input data filters

Application Scenarios:

The GE IC695ALG508-AA is typically used in industrial automation systems where precise temperature measurement is required. It can be integrated into PACSystem RX3i platforms to monitor and control temperature-sensitive processes, such as in manufacturing, process control, and other industrial environments.
