Technical Specifications

• Type: Power Module

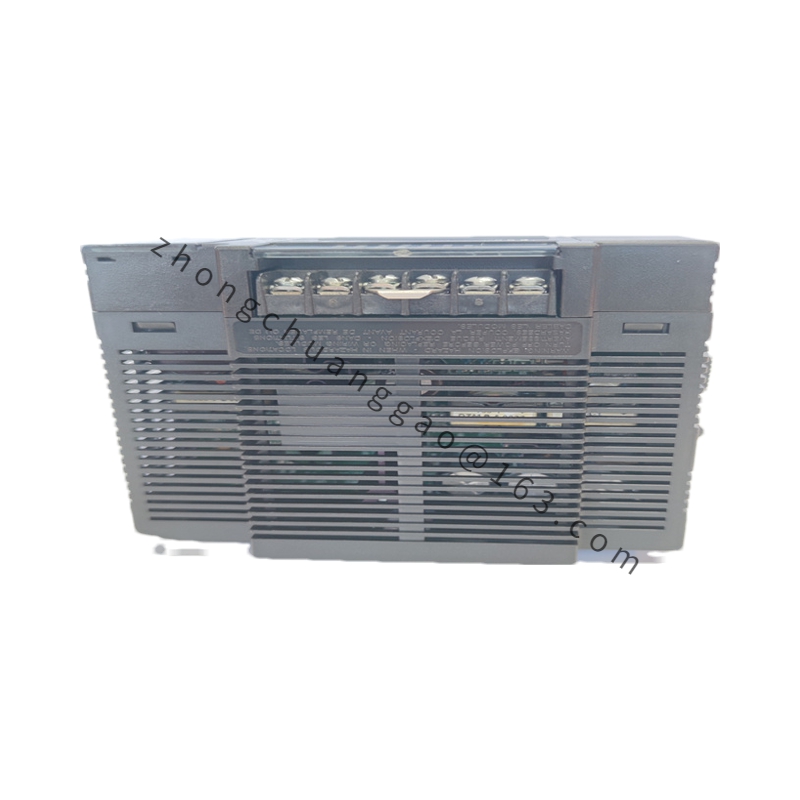

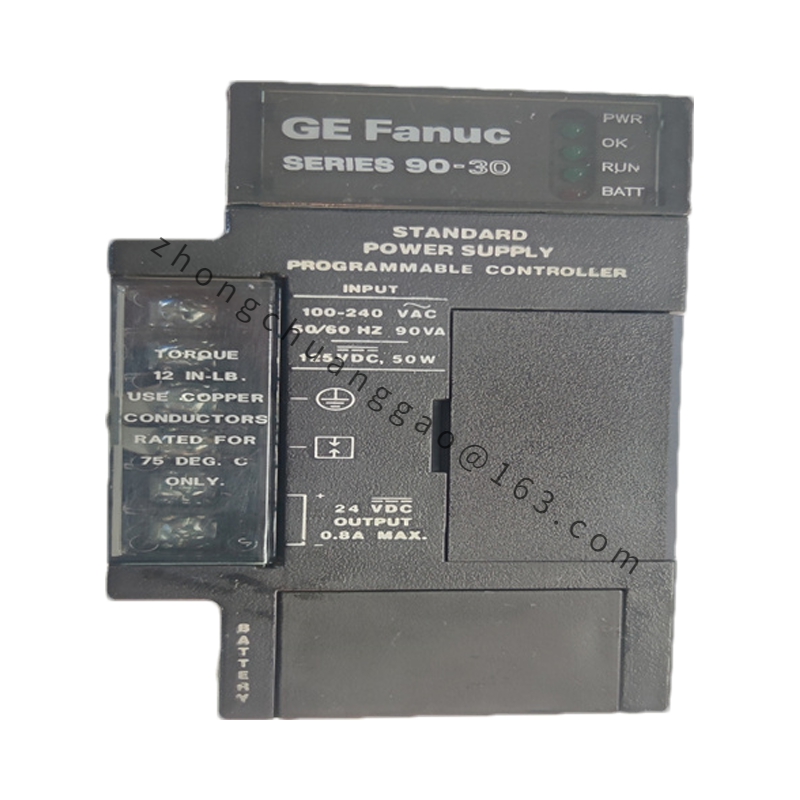

• Model: IC693PWR324
• Manufacturer: GE Fanuc
• Compatibility: Series 90-30 PLC Systems
• Power Input:
  • Voltage Range: Typically supports a wide range of input voltages, including AC and DC options, with rated voltage inputs ranging from 100 to 240VAC or 125VDC, depending on the specific configuration.
  • Surge Peak Current: Up to 4 Amperes for 250 milliseconds
• Power Output:
  • Provides multiple outputs, including a 5VDC output, a 24VDC relay power output for circuit supply, and an isolated 24VDC output for external power to input modules.
  • Power Supply Capacity: Capable of handling varying power requirements, with a maximum load capacity of 30 Watts and a maximum power reception of 90VA under AC input and 50W under DC input.
• Physical Dimensions: May vary, but a typical specification mentions a module size that fits the Series 90-30 PLC system architecture.
• Operating Environment: Designed for industrial environments, with considerations for temperature, humidity, and electrical noise.

Functional Characteristics

• Stability: Offers stable power output characteristics, ensuring reliable power supply even during grid fluctuations or other power disturbances.
• Multiple Power Inputs: Supports various power input types (AC/DC), allowing it to adapt to different power environments and application requirements.
• Fault Detection: Incorporates fault detection functionality, which monitors the power output and triggers alarm or protection actions in case of detected faults.
• Hot Swappable: Typically supports hot swapping, enabling replacement during system operation without the need for shutdown, improving system reliability and maintainability.
• Advanced Diagnostics: Equipped with advanced diagnostic features and an intelligent shutdown system to manage controller fault events.
• Communication Interface: May include an RS-485 port for connecting to personal computers or other devices for monitoring and control.

Application Scenarios

• Industrial Automation: Widely used in various industrial automation applications, such as manufacturing, process control, and energy industries, where stable power supply is critical for PLC systems.
• PLC System Support: Serves as a crucial component in Series 90-30 PLC systems, ensuring the continuous and efficient operation of the overall automation system.
• Machine Control: Deployed in machines requiring precise control and reliable power supply, ensuring smooth and uninterrupted operation.
• Remote Monitoring and Control: Facilitates remote monitoring and control of industrial processes through its communication interface, allowing for seamless integration into larger automation networks.
