Operating Voltage:DC 12-48V

Output Frequency:Up to 1 MHz

Measurement Range:0-600 A, 0-1000 V

Accuracy:+/- 0.5%

Temperature Range:-20°C to +85°C

Power Consumption:Max. 150 mW

Dimensions:64mm x 50mm x 23mm

Weight:Approx. 30g

Communication Interface:DeviceNet

Connectors:2x BNC, 1x RJ-45

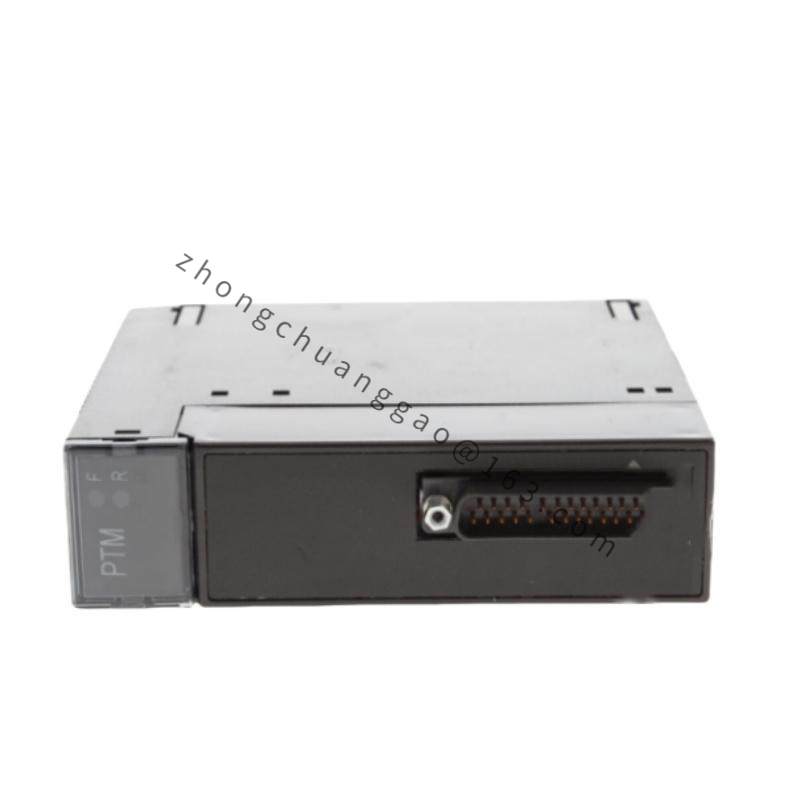

    Integrating the latest in power measurement technology, the GE IC693PTM101 Power Transducer Module is designed to provide accurate and reliable data on electrical power usage within industrial environments. This module is specifically engineered for seamless integration into GE’s renowned automation platforms, ensuring optimal performance and system reliability.

    With an operational voltage range of 12-48V DC and a maximum output frequency of up to 1 MHz, this module caters to a wide array of industrial applications, from energy management systems to process control operations. Its measurement range spans from 0-600 Amperes and 0-1000 Volts, covering most industrial power requirements.

    The module boasts an impressive accuracy of +/- 0.5%, which is critical for industries where precise power readings are essential for efficient operations and compliance with standards. Its temperature range of -20°C to +85°C ensures durability and reliability in varying environmental conditions.

    Energy efficiency is a cornerstone of the GE IC693PTM101, consuming a maximum of 150 mW under normal operation. This low power consumption contributes to cost savings and reduced environmental impact, aligning with modern industrial sustainability goals.

    For ease of installation and integration, the module features 2 BNC connectors for power and signal outputs and a single RJ-45 connector for DeviceNet communication. These connections facilitate simple setup and compatibility with existing automation networks, streamlining the integration process.
