Technical Specifications
| Attribute | Description |
|---|---|

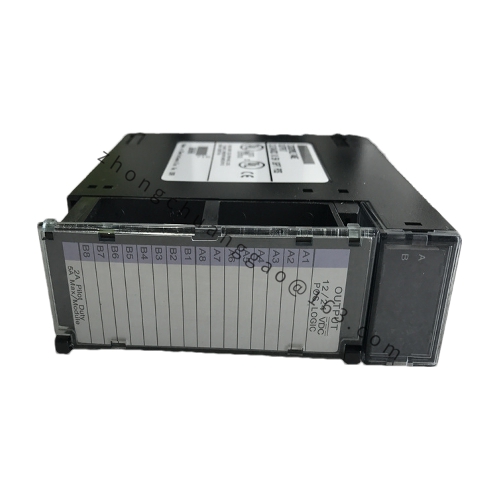

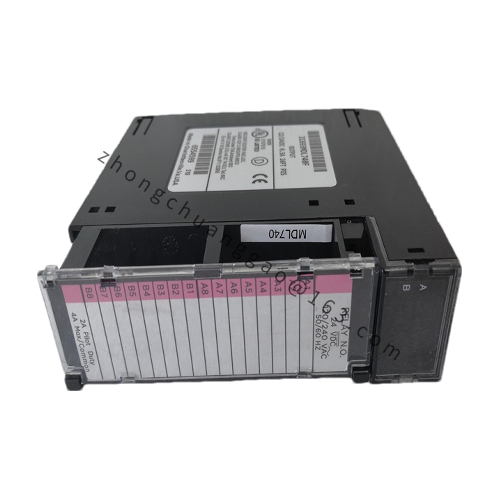

| Model | IC693MDL740 |
| Series | 90-30 Series |
| Type | Digital Output Module (Positive Logic) |
| Number of Outputs | 16 (divided into 2 groups of 8) |
| Output Current per Channel | 0.5 Amps |
| Maximum Output Current per Group | 2 Amps |
| Operating Voltage Range | 12 to 24 Volts DC (with 20% tolerance and -15% tolerance) |
| Rated Voltage | 12/24 Volts DC |
| Output Characteristics | – Surge Current: 4.78 Amps for 10 ms<br>- Maximum Output Voltage Drop: 1 VDC<br>- Non-steady-state Leakage Current: 1 mA<br>- ON Response Time: 2 ms<br>- OFF Response Time: Maximum 2 ms |
| Power Consumption | 110 mA (all outputs ON), sourced from the 5V bus on the backplane |
| Indicators | Front panel LED indicators for channel status and module operation |
Functional Characteristics
- Positive Logic Output: The IC693MDL740 is a positive logic output module that supplies current from the common or positive power bus to connected loads.
- Modular Design: Designed for easy installation and integration into the GE Fanuc 90-30 Series Programmable Logic Controller (PLC) system.
- External Protection: The module does not have internal fuses, but external fuses can be installed for additional protection.
- Compatibility: Compatible with a wide range of electrical loads, including contactors, relays, indicators, buzzers, horns, and other 24VDC-powered devices.
Application Scenarios
- Industrial Automation: Widely used in industrial automation systems for controlling various electrical loads and devices.
- Machine Control: Ideal for controlling machines and equipment in manufacturing and processing plants, such as motors, actuators, and sensors.
- Process Control: Suitable for process control applications where precise control of electrical outputs is required.
- Infrastructure: Can be found in infrastructure projects such as power plants, water treatment facilities, and transportation systems.
