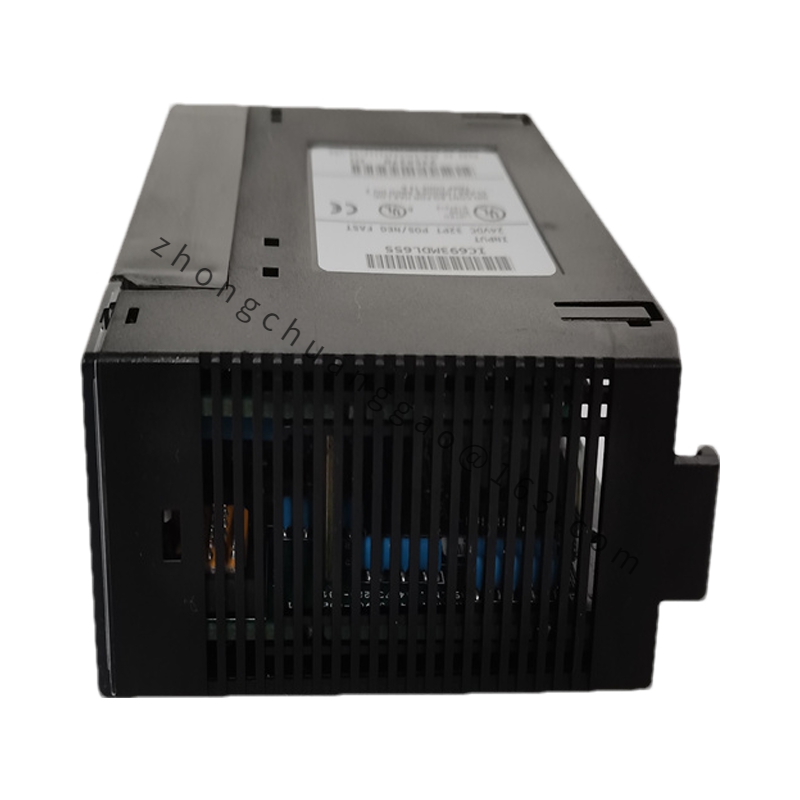

Technical Specifications

• Manufacturer: General Electric (GE) Fanuc Automation
• Series: 90-30 Series Programmable Logic Controller (PLC) Platform
• Input Voltage Range: 0-30 VDC (Nominal 24 VDC)
• Input Points: 32, divided into 4 groups of 8 each
• Input Current: 7.0 mA typical ON current at 24 VDC
• On-State Voltage: 11.5 to 30 VDC
• Off-State Voltage: 0 to 5 VDC
• Response Time: ≤ 2 milliseconds
• Isolation Voltage: 1500 V between field side and logic side

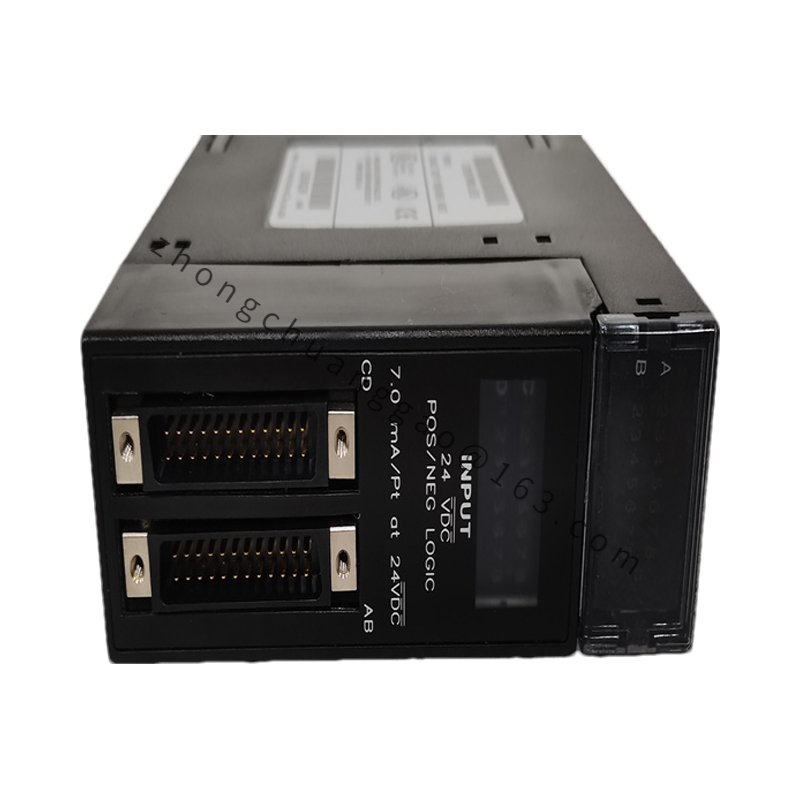

• Connector Type: Two 24-pin male connectors (Fujitsu FCN-365P024-AU)
• Compatible Cables: IC693CBL327 and IC693CBL328 (pre-wired cables available separately)
• LED Indicators: Provided for each input group (A1-A8, B1-B8, C1-C8, D1-D8)
• Processor: 32-bit RISC processor (if applicable to the entire PLC system)

Functional Characteristics

1. High-Density Input: With 32 input points, the IC693MDL655 offers a high-density solution for capturing digital signals from various sensors and devices.
2. Compatibility: Designed to be installed on any 90-30 series baseplate, including CPU baseplates, I/O expansion baseplates, and remote I/O baseplates.
3. Flexible Connectivity: Uses two 24-pin connectors for easy connection to input devices such as limit switches, level switches, proximity sensors, and pushbuttons.
4. LED Indication: Provides visual feedback for each input group, simplifying troubleshooting and monitoring.
5. Positive/Negative Logic: Supports both positive and negative logic configurations, allowing for flexibility in system design.
6. Isolation: Offers 1500 V isolation between the field side and logic side, ensuring electrical safety and reducing interference.

Application Scenarios

The GE IC693MDL655 is widely used in various industrial automation applications where digital input signals are required. Some typical application scenarios include:

• Manufacturing: In automated manufacturing lines, the module captures signals from sensors and devices to control machines and processes.
• Process Control: In industries such as chemical, oil and gas, and water treatment, the IC693MDL655 is used to monitor and control process variables through digital inputs.
• Machinery and Equipment: In heavy machinery and equipment, the module is integrated into control systems to monitor operational status and safety features.
• Automation Systems: As part of larger automation systems, the IC693MDL655 provides digital input capabilities for seamless integration with other PLC modules and devices.
