Technical Specifications

• Manufacturer: GE Fanuc Automation
• Series: 90-30 Series
• Processor Type: AMD SC250-based single-slot CPU
• Processor Speed: 133 MHz
• Memory:
  • User-configurable memory: 240 KB
  • Register memory configurable from 128 to 32,640 words
• I/O Capacity:
  • Fixed discrete I/O points: 2048
  • Discrete global storage capacity: 1280 bits
• Communication:

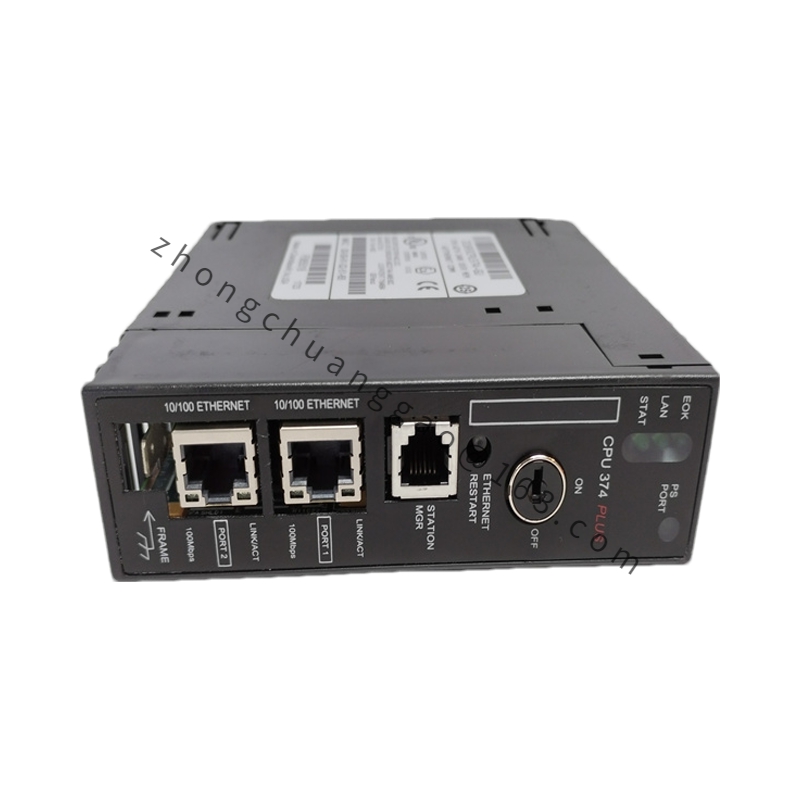

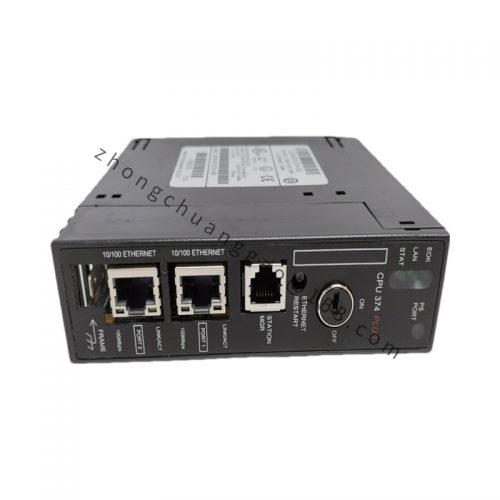

  • Embedded Ethernet controller supporting up to 100 Mbps
  • Supports SRTP and Ethernet global data
  • Modbus/TCP client/server protocol
  • Note: No serial ports included
• Power Requirements: 5VDC, 7.4W
• Operating Temperature: 0°C to 60°C
• Storage Temperature: -40°C to 85°C
• Features:
  • 28 fixed system registers with timers and counters
  • Battery-backed RAM and flash memory for system clock and program storage
  • Supports floating-point data processing

Functional Characteristics

1. High-Performance Processing: The AMD SC250-based processor ensures fast and efficient execution of complex control logic and data processing tasks.
2. Versatile Memory: With 240 KB of user-configurable memory and register memory configurable up to 32,640 words, it offers ample storage space for control programs, data, and configuration information.
3. Advanced Communication: The embedded Ethernet controller supports high-speed communication up to 100 Mbps, enabling seamless data exchange with other devices and systems.
4. Programming Flexibility: Supports various programming languages, including Ladder Logic, allowing users to configure control logic as per their specific requirements.
5. Real-Time Control: Designed for real-time monitoring and control of industrial processes, ensuring precise and timely responses.
6. Diagnostics and Troubleshooting: Provides comprehensive fault diagnosis capabilities to help identify and resolve issues quickly.

Application Scenarios

The GE IC693CPU374 is widely used in various industrial automation applications, including but not limited to:

• Manufacturing: Automates production lines, ensuring efficient and accurate manufacturing processes.
• Process Control: Used in chemical, petrochemical, and other process industries for precise control of process variables.
• Machine Automation: Controls complex machinery and equipment, enhancing productivity and reducing downtime.
• Building Automation: Integrates with building management systems, controlling lighting, HVAC, and other building services.
• Energy and Utilities: Manages power distribution, transmission, and generation systems, ensuring reliable energy supply.
