Functional Characteristics

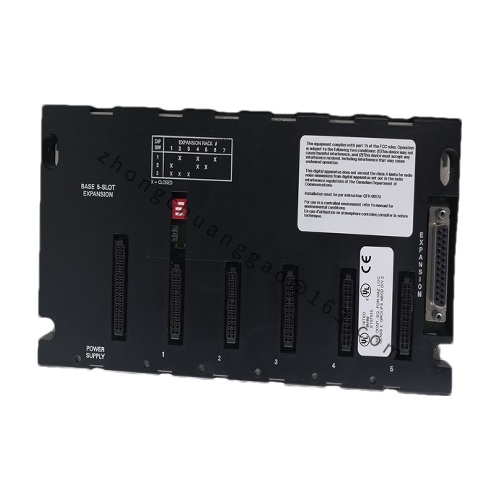

Expansion Baseplate: Serves as an expansion baseplate for the PLC system, allowing for the addition of more I/O modules to increase system capabilities.
Connectivity: Connects to other baseplates or CPU modules via the 25-pin D-sub connector, enabling system expansion and flexibility.
Isolation: Provides electrical isolation between the CPU and the I/O modules, protecting the CPU from potential damage due to high-voltage or noise from the I/O circuits.
Modularity: Enables the use of various I/O modules, including analog and digital input/output modules, to meet specific application requirements.
Application Scenarios
Industrial Automation: Commonly used in industrial automation systems to expand the capabilities of PLCs, allowing for the control of a wider range of devices and processes.
Manufacturing: Found in manufacturing environments where high-precision control and monitoring of machines and production lines are essential.
Process Control: Ideal for process control applications that require accurate data acquisition and control over various input and output signals.
Infrastructure: Can be used in infrastructure projects, such as water treatment plants and power stations, where reliable and robust control systems are necessary.
