Detailed content
Technical Specifications
- Output Channels: 8 isolated analog voltage outputs
- Voltage Range: -10V to +10V (14-bit resolution)
- Voltage Overrange: Up to approximately 10.25V
- Resolution: 14-bit
- Response Time: 1.5 milliseconds
- Power Supply: 18 – 30 VDC
- Temperature Rating: 0°C to 55°C

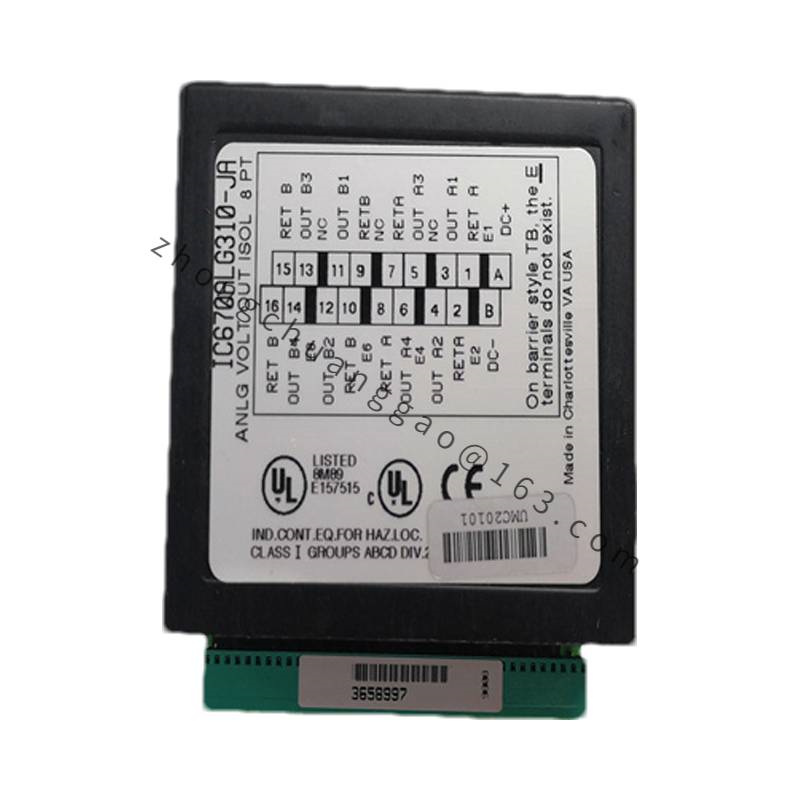

- Module Type: Analog voltage output module(
)(
)(
).
Key Features
- Isolated Groups: The 8 voltage outputs are organized into two isolated groups of four, providing protection and reducing interference between channels.
- User-configurable Scaling: Each channel can be configured individually with customizable scaling parameters, allowing for specific output ranges to suit different applications.
- Fault Reporting: Includes under/overrange fault reporting, ensuring safety and operational integrity.
- Calibration: The module can be field recalibrated or reset to factory settings, with calibration data stored in non-volatile FLASH memory.
- Data Types Supported: Works with both word and bit data types(
Applications
This module is suitable for a variety of industrial control systems requiring precise analog voltage control, such as:
- Process Automation: Used in controlling machinery and sensors that operate based on voltage signals.
- Factory Automation: Can be integrated into PLC systems for managing automated equipment.
- Energy Management: Employed in applications where voltage control is critical for system stability and efficiency.
