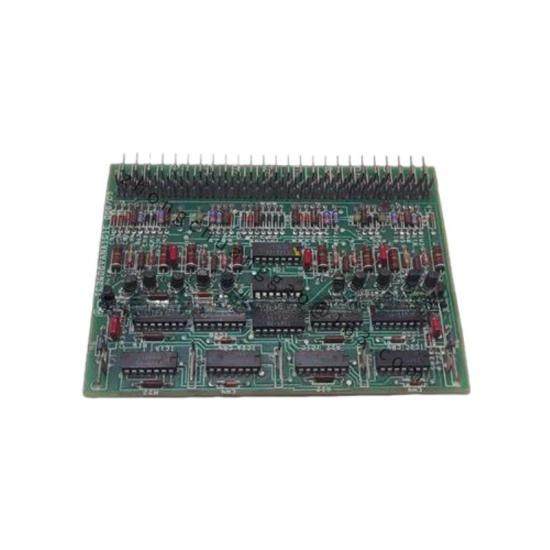

GE IC3600VANB1D – Phoenix Controls: Advanced Turbine Management System
The GE IC3600VANB1D is an advanced Annunciator Control Board designed for seamless integration into the Mark I or Mark II series of GE’s Speedtronic control systems, offering enhanced monitoring and control capabilities for steam and gas turbines.
Detailed content
Brand:GE
Model:IC3600VANB1D
Series:Phoenix Controls
Application:Steam & Gas Turbine Control Systems
Power Rating:Up to 400 MW
Dimensions:W x H x D (inches): 7 x 10 x 3
Weight:Approximately 15 lbs
Input Voltage:AC 120V / DC 24V
Operating Temperature:-40°C to +60°C
Humidity Range:0% to 95% non-condensing
The GE IC3600VANB1D is a high-performance Annunciator Control Board, meticulously engineered to deliver exceptional reliability and efficiency in managing complex industrial processes.
This board is part of the renowned Phoenix Controls series, known for its robust design and compatibility with leading speed control systems by General Electric.
With its versatile scalability, the IC3600VANB1D is suitable for a wide range of applications, from comprehensive power plants to isolated turbine units, ensuring seamless operation across diverse settings.
Equipped with advanced components including transistors, diodes, and precision resistors, the board ensures accurate signal processing and reliable control over turbine systems.
Its vertical component mounting and use of aluminum electrolytic and ceramic capacitors contribute to superior electrical performance and longevity, making it a trusted choice in industrial automation.
