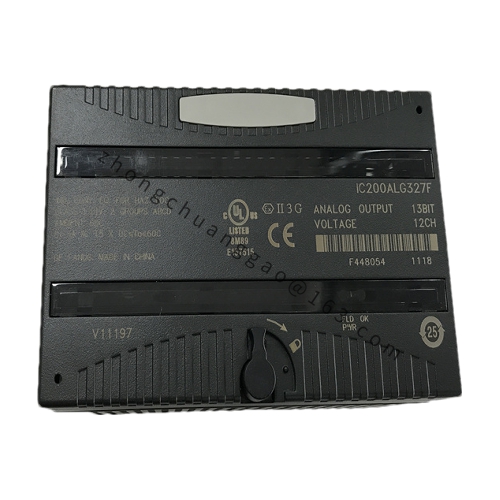

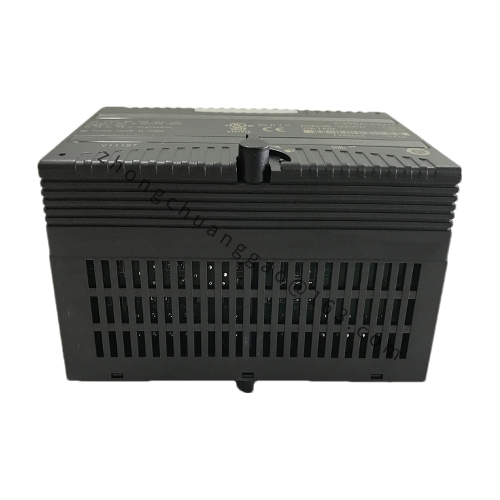

GE IC200ALG327F
Technical Specifications
Type: Analog Output Module
Channels: 12 Channels
Resolution: 13-bit
Output Voltage Range: Typically, GE Versamax modules offer output ranges such as -2 to +10 VDC and 10 to 0 VDC, but specific ranges for IC200ALG327F should be confirmed with the official documentation.
Detailed content
Power Requirements: Typically requires 18 to 30 VDC, including ripple, for proper operation.
Current Consumption: Highest may reach up to 112 mA, depending on the configuration and load.
Operating Temperature: Typically, similar GE modules operate in a range of -22°F to +150°F (-30°C to +65°C).
Storage Temperature: -40°F to +185°F (-40°C to +85°C).
Humidity: 95% non-condensing.
Communication: May support various protocols and interfaces depending on the system configuration.
Functional Features
Configurable Output Modes: Each output channel can be configured for bipolar or unipolar operation, providing flexibility in system design.
Diagnostic Capabilities: The module likely includes diagnostic functions that can display reports in case of faults, aiding in troubleshooting and maintenance.
LED Indicators: Equipped with LED indicators to quickly show the status of the module’s processes and functions.
Shielding Requirements: May require connection to shielded cables and shield terminations to minimize interference and ensure proper functionality.
Application Scenarios
Industrial Automation: The IC200ALG327F is typically used in industrial automation systems where precise analog output control is required.
Factory Automation Equipment: Found in various factory automation equipment such as PLC-controlled systems, robotic arms, and process control systems.
Heavy Industries: Applicable in heavy industries like power plants, steel mills, cement factories, and shipbuilding, where the need for reliable and precise control is critical.
Process Control: Utilized in process control systems for monitoring and adjusting parameters like temperature, pressure, and flow rates.
