Alarm Features:
16 %I alarm bits per channel
One open circuit alarm per channel
One setpoint alarm per channel
Setpoint alarm configuration through 8 %AQ registers
Signal Processing: All analog and digital processing of thermocouple signals is performed on the module itself, eliminating the need for external signal processing devices like sensors or transmitters.
Power Requirements: Typically, it operates within the power requirements of the PLC system it is integrated into.
Connectivity: Allows direct connection of thermocouple temperature sensors to the PLC.
Environmental: Designed for industrial environments, with considerations for temperature, humidity, and electromagnetic interference.
Functional Characteristics
High Resolution: With 0.1°C resolution, it provides precise temperature measurements.
Integrated Processing: By processing thermocouple signals internally, it simplifies system design and reduces the need for additional components.
Flexible Alarming: Comprehensive alarm features allow for real-time monitoring and response to temperature excursions.
Scalability: Its 8-channel design makes it suitable for a wide range of temperature monitoring applications.
Compatibility: Designed to integrate seamlessly with GE PLC systems, ensuring compatibility and reliability.
Application Scenarios

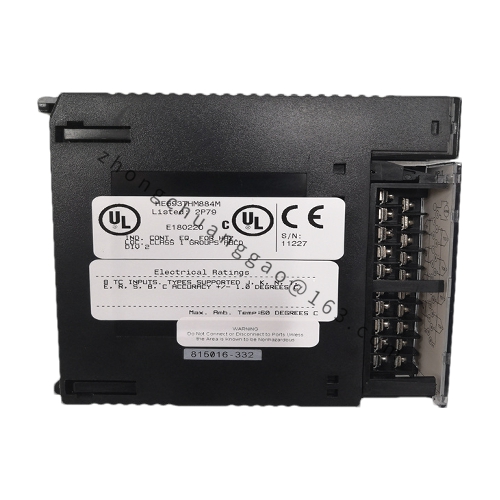

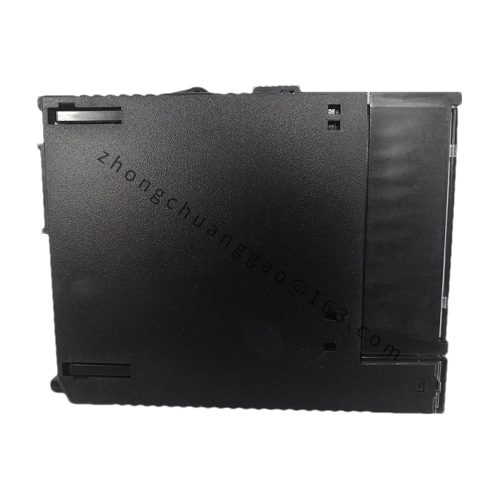

The GE HE693THM884M module is ideal for applications requiring high-precision, multi-channel temperature monitoring and control. Some typical application scenarios include:
Process Industries: In industries like petrochemicals, refining, and pharmaceuticals, where precise temperature control is critical for product quality and process safety.
Manufacturing: For temperature monitoring in metal processing, plastics molding, and other manufacturing processes where temperature affects product properties.
Facilities Management: In large facilities like data centers, hospitals, and research labs, where environmental temperature must be closely monitored and controlled.
Automation Systems: As part of a larger automation system, providing real-time temperature data for process optimization and fault detection.
Additional Notes
The GE HE693THM884M module is a high-performance, reliable component for industrial temperature monitoring applications. Its combination of high resolution, flexible alarming, and seamless integration with GE PLC systems makes it a popular choice for demanding industrial environments.
