Technical Specifications

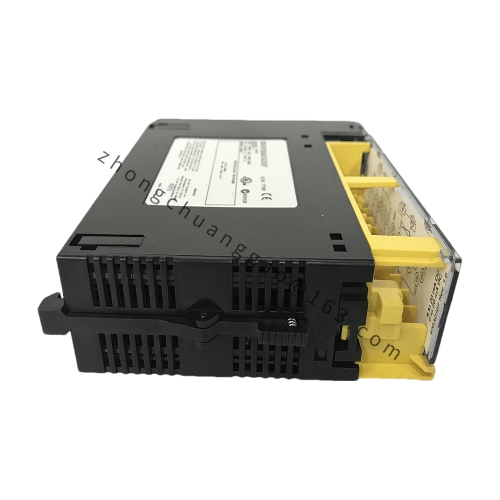

Model Number: HE693DAC420
Manufacturer: General Electric (GE)
Series: 90-30 PLC Series
Output Type: Analog Output Module
Output Channels: 4
Output Range: Configurable as 0-20 mA or 4-20 mA current output
Resolution: 14-bit
Accuracy: ±0.1%
Conversion Time: < 2 ms
Common Mode Rejection Ratio (CMRR): > 60 dB
Noise Immunity: > 10 V RMS
Operating Temperature Range: -40°C to 70°C
Power Supply Voltage: 24 VDC
Dimensions: 90 mm x 30 mm x 25 mm
Weight: 100 grams
Housing Material: Aluminum Alloy
Connection Type: Terminal Connection
Functional Characteristics
High Precision: With a resolution of 14-bits and an accuracy of ±0.1%, the HE693DAC420 offers high precision analog signal control.
Configurable Output: The module can be configured to output 0-20 mA or 4-20 mA current, making it versatile for different industrial applications.
Fast Conversion Time: The conversion time of less than 2 ms ensures prompt response to control signals.
Robust Design: The aluminum alloy housing and high noise immunity provide durability and reliability in harsh industrial environments.
Wide Operating Temperature Range: Suitable for operation in a wide range of temperatures, from -40°C to 70°C.
Application Scenarios
Industrial Automation: The HE693DAC420 is suitable for various industrial automation systems requiring precise analog signal control, such as process control, manufacturing lines, and machine automation.
DCS (Distributed Control Systems): As part of a DCS system, it can provide precise control signals to regulate critical processes in large-scale industrial facilities.
PLC-based Systems: Integrated into PLC-based systems, the module enables real-time monitoring and control of process variables.
Monitoring and Control: Used in applications where high-accuracy monitoring and control of process variables are essential, such as temperature, pressure, and flow rate.
