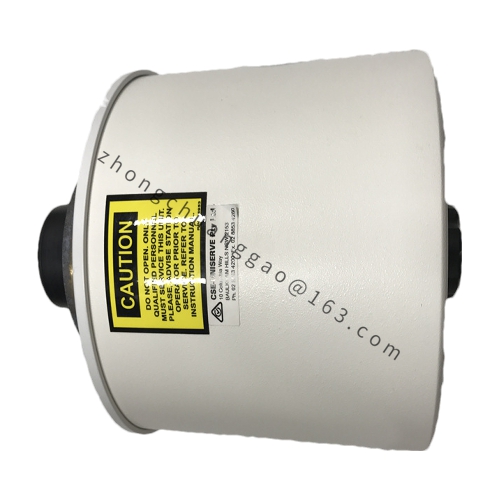

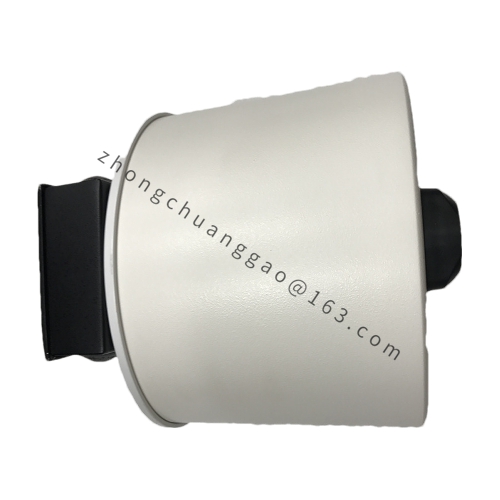

GE H201TI
Technical Specifications:
Type: Small Online Warning Transmitter
Model: Hydran H201Ti
Input Voltage: 100-240V AC, 50/60Hz (Power Adapter)
Output Voltage: 12V DC (Power Adapter)
Max Output Current: 2A (Power Adapter)
Max Output Power: 24W (Power Adapter)
Operating Temperature: -10°C to +40°C
Storage Temperature: -20°C to +85°C
Dimensions: 75mm x 45mm x 30mm (Power Adapter)
Weight: 90g (Power Adapter)
Detailed content
Functional Characteristics:
Continuous Monitoring: The H201Ti continuously monitors Dissolved Gas Analysis (DGA) in transformer oil, a crucial technology for predictive maintenance and transformer health monitoring.
Early Warning: It provides early warnings of transformer faults, enabling timely detection and resolution of issues, thereby preventing equipment damage and potential safety risks.
High Precision: Equipped with a standard HYDRAN® sensor, thermal regulation system, and microprocessor-based electrical transmitter, the H201Ti offers precise monitoring of gases such as hydrogen (typical fault gas) and carbon dioxide (indicative of overheating).
Adaptability: It can be adapted to different work environments and transformer types, connecting directly to transformer DGA valves through brass adapters, facilitating easy and efficient use.
Maintenance Simplicity: The device features easy-to-access terminals for connecting AC power, alarm contacts (for high gas levels, critical high gas levels, and system faults), and supervisory connections, making maintenance and servicing straightforward.
Remote Monitoring: The H201Ti supports both local and remote alarms, which can be set at predefined levels or rates of change. It also allows remote viewing of gas readings and trends via serial port communication.
Data Logging: It has the capability to store up to one year of local data and critical event logs, aiding in the analysis of fault causes and trends.
Application Scenarios:
Power Utilities: The H201Ti is ideal for use in power utilities, where continuous monitoring of transformer health is crucial for ensuring reliable electricity supply.
Industrial Facilities: It can be deployed in industrial settings with transformers, providing early warning of potential faults and minimizing unplanned downtime.
Oil and Gas Industry: In the oil and gas industry, transformers play a vital role in power distribution. The H201Ti’s monitoring capabilities help maintain transformer health and operational efficiency.
