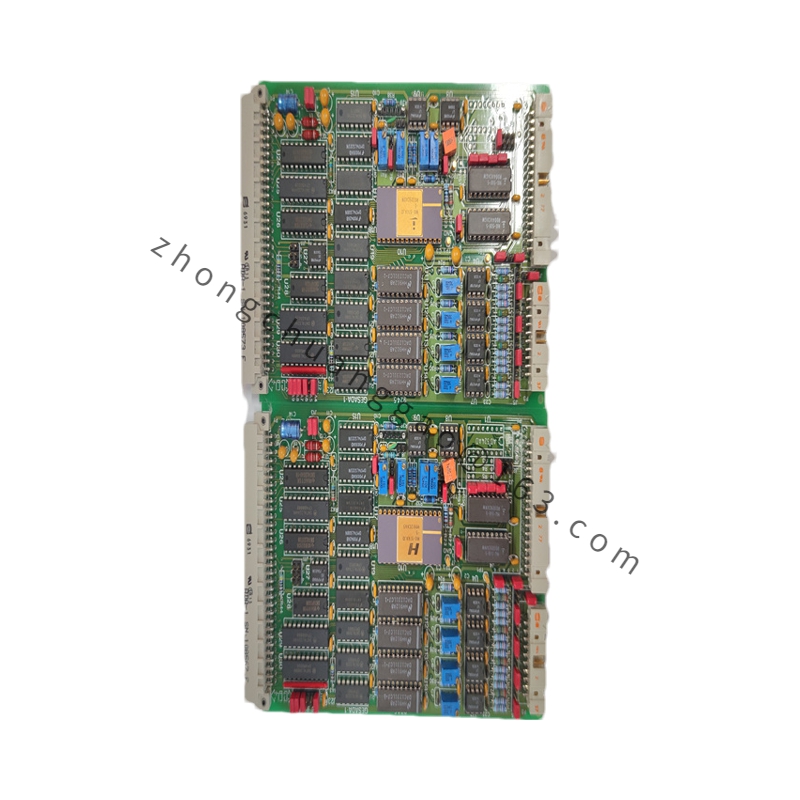

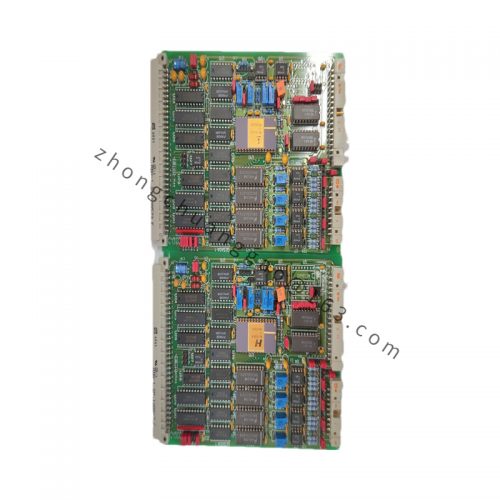

GE GESADA-1

The GE GESADA-1 is a highly specialized module designed for data input and output in various industrial and automation systems. This module offers a range of advanced features and capabilities that make it an ideal choice for a wide array of applications.

WhatApp
WeChat

Detailed content

Technical Specifications

Specification Details
Type Digital Modular Input/Output Module
Size 10cm x 10cm x 10cm (According to one source, another mentions 170mm x 105mm x 32mm)
Weight 1kg (or approximately 120g, depending on source)
Input Voltage Range 12-48VDC
Output Voltage 5VDC
Output Current Max 10A
Efficiency >90%
Voltage (AC) 220V AC (Power Supply)
Maximum Power 500W
Operating Temperature -20°C to +50°C
Storage Temperature -40°C to +70°C
Humidity 5% to 95% RH (non-condensing)
Processor 32-bit RISC Processor

Functional Characteristics

  1. High Reliability: The GESADA-1 utilizes high-quality components and advanced manufacturing processes to ensure long-term stable operation in harsh industrial environments. It undergoes rigorous testing and verification to meet the demands of efficient, continuous production.

  2. Digital Modular Design: The module’s digital modular design simplifies installation, configuration, and maintenance. Its digital interfaces facilitate seamless integration with PLCs (Programmable Logic Controllers) and other control systems, enabling efficient data transmission and control functions.

  3. Multifunctionality: The GESADA-1 supports various types of input and output signals, accommodating different sensors and actuators. It accurately processes and converts both analog and digital signals, catering to diverse control requirements.

  4. High-Speed Communication: The module supports high-speed communication, enabling real-time data transmission and rapid response. This enhances the control system’s ability to promptly capture field data and make timely decisions, improving production efficiency and quality.

  5. Scalability: The GESADA-1 offers scalability, allowing users to increase or decrease the number of modules based on actual needs. This flexibility adapts to varying system sizes and complexities, satisfying evolving user demands.

  6. Safety Protection: The module incorporates safety features such as electrical isolation, overcurrent protection, and overvoltage protection, ensuring the safety of operators and equipment.

Application Scenarios

The GE GESADA-1 finds widespread application in various industries and automation domains:

  1. Industrial Automation: Used on production lines for monitoring and controlling various industrial processes, including temperature control, level monitoring, and pressure control.

  2. Building Automation: Integrated into building management systems to control lighting, HVAC (Heating, Ventilation, and Air Conditioning), and security systems, enhancing energy efficiency and safety.

  3. Energy Management: Monitors and controls energy facilities like power plants, grids, and transmission lines, ensuring stable power system operation.

  4. Transportation: Applied in traffic signal control, railway signaling systems, and intelligent traffic management, improving traffic flow and safety.

  5. Environmental Monitoring: Monitors atmospheric, water, and soil parameters, supporting environmental protection and management efforts.

  6. Robotics: Utilized in industrial robots and automation systems for automated control of various tasks.
