Application Temperature Range:-20°C to +60°C

Operating Voltage:DC 5V to 36V

Maximum Current:5A per channel

Relay Contact Rating:10A @ 250VAC / 16A @ 30VDC

Board Size:178mm x 144mm

Communication Interface:RS-485

Installation Method:Panel mountable

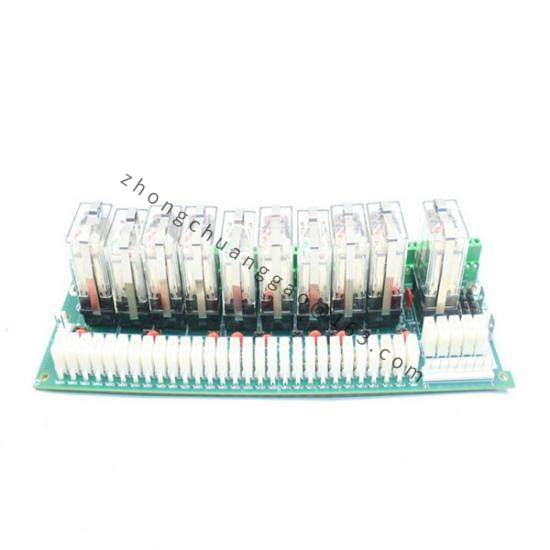

    The GE-FANUC DS200RTBAG2AHC Relay Terminal Board is meticulously designed to integrate seamlessly with the Mark V series of turbine control systems, ensuring unparalleled performance and reliability in industrial environments.

    Crafted with precision and durability, this relay terminal board is equipped with advanced relay contacts capable of handling high current loads efficiently, making it an indispensable component in complex control systems.

    With its compact yet robust design, the DS200RTBAG2AHC is optimized for various operational conditions, boasting a wide temperature range from 0°C to +50°C, and storage capabilities from -40°C to +70°C.

    Ensuring optimal functionality, the board supports a power supply of 24V DC, complemented by a maximum input current of 10 mA and a maximum output current of 1 A. It is further equipped with a load resistance of 300 Ω, ensuring compatibility with diverse system configurations.

    Equipped with SPST relay contacts, the GE-FANUC DS200RTBAG2AHC Relay Terminal Board guarantees precise switching operations, contributing to the overall efficiency and safety of turbine control systems.
