Model Number:DS200FCRRG1AKD

Product Type:Control Circuit Board

Series:Mark VI

Module Function:Firing Control

Number of Terminal Blocks:1

Terminal Block Capacity:95 Signal Wires

Connectors:10 x 2-pin, PL numbered

Ribbon Cables:2

Programmable Logic Device:Integrated

Dimensions:Specific to Model

Weight:Specific to Model

Operating Temperature Range:-20°C to +60°C

Storage Temperature Range:-40°C to +70°C

Material:High-grade copper alloy, epoxy resin coated

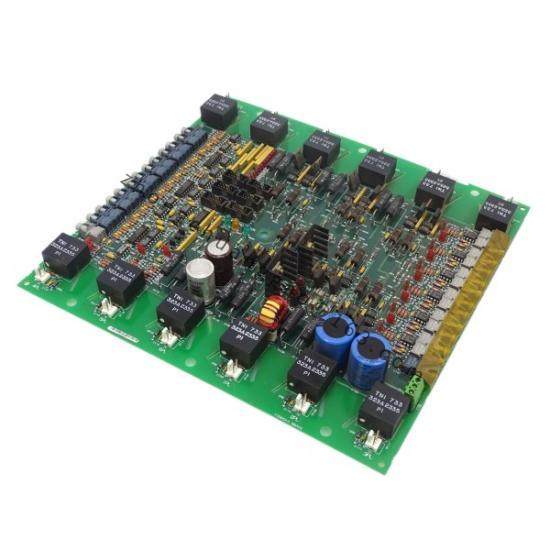

    The GE-FANUC DS200FCRRG1AKD Firing Control Circuit Board is a robust solution designed specifically for power generation plants operating within the Mark V series of turbine control systems. This board ensures optimal performance and reliability by managing and transmitting precise control signals, thereby maximizing the efficiency and stability of power generation processes.

    Equipped with a comprehensive set of 10 2-pin connectors and two ribbon cables, this board facilitates seamless integration and communication across various components of the turbine system. The inclusion of a programmable logic device enhances the board’s adaptability, allowing for custom programming to meet diverse operational requirements.

    The ID range from PL001 to PL100 provides a systematic approach to identifying and managing the numerous connections, ensuring ease of maintenance and troubleshooting. This board is compatible with both existing 90-30 and 90-70 application scenarios, allowing for a smooth transition and protection of existing investments in infrastructure and development.

    Incorporating advanced communication protocols such as Profibus™, DeviceNet™, and an embedded Ethernet Wire™ standard, the DS200FCRRG1AKD supports rapid and efficient data exchange between different systems within the plant. This feature significantly reduces downtime and improves overall operational efficiency.

    Designed for industrial environments, the DS200FCRRG1AKD is built to withstand harsh conditions typically encountered in power generation facilities. Its compatibility with standard industrial power supplies ensures reliable operation under varying environmental conditions, making it a dependable choice for long-term reliability and maintenance.
