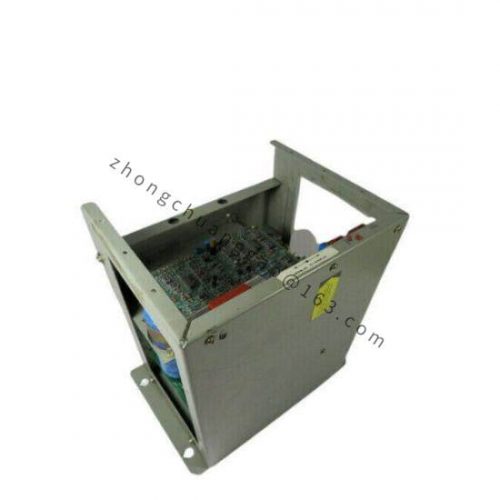

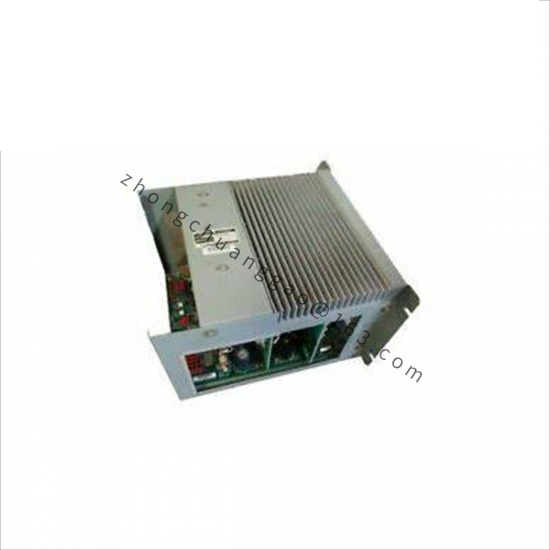

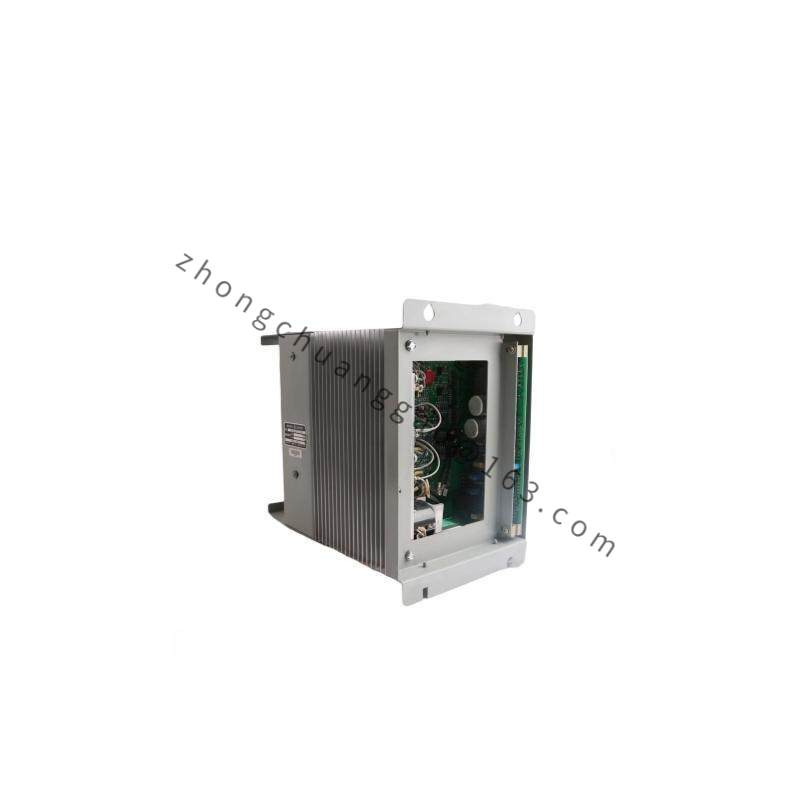

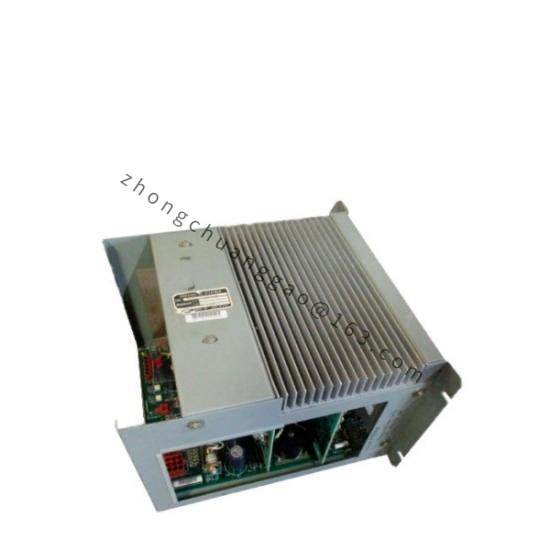

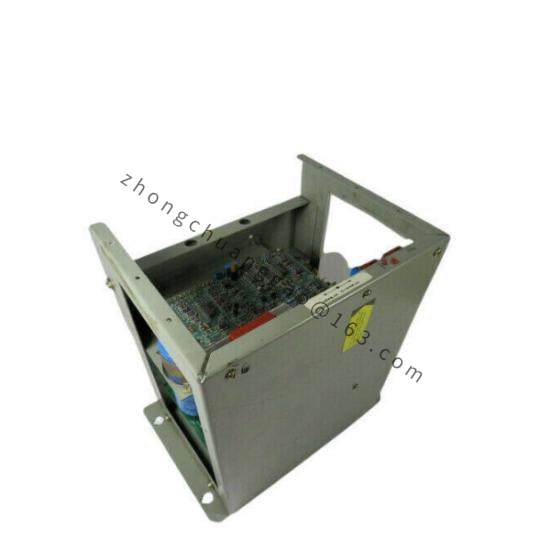

GE DS3820PSCB1C1B Power Supply Module for Gas and Steam Turbine Systems
The DS3820PSCB1C1B is a high-performance power supply module designed for GE’s Mark IV series. This module is integral to managing gas and steam turbine systems, providing stable power to critical components and automating processes such as control sequencing, temperature control, and startup. It safeguards the turbine system from issues like loss of flame, fire, and vibration.
Detailed content
Manufacturer:General Electric (GE)
Model:DS3820PSCB1C1B
Module Type:Power Supply
Output Voltage:+5V, +/-15V
Housing Material:Metal
Connectors:4-pin female jack
Additional Components:Inductor coils, high-voltage electrolytic surface-mounted capacitors, potentiometers, fuses, MOVs, and relays
The DS3820PSCB1C1B is a robust power supply module specifically designed for industrial applications within the gas and steam turbine systems managed by GE’s Mark IV series. This module ensures reliable power delivery and protects the system from issues such as loss of flame, fire, and vibration. Constructed within a durable metal housing, it integrates multiple DS3800 PCBs with additional components to enhance its performance and reliability. Key features include a +5V, +/-15V supply rating, which makes it suitable for a wide range of industrial environments. The module is equipped with essential components like inductor coils, high-voltage electrolytic surface-mounted capacitors, potentiometers, fuses, MOVs, and relays, ensuring robust performance and longevity. To ensure safe operation, this product is packaged in static-free packaging, protecting the operator from static shock. Proper handling and installation instructions are provided by GE’s technical support documentation, ensuring easy integration into existing systems.
