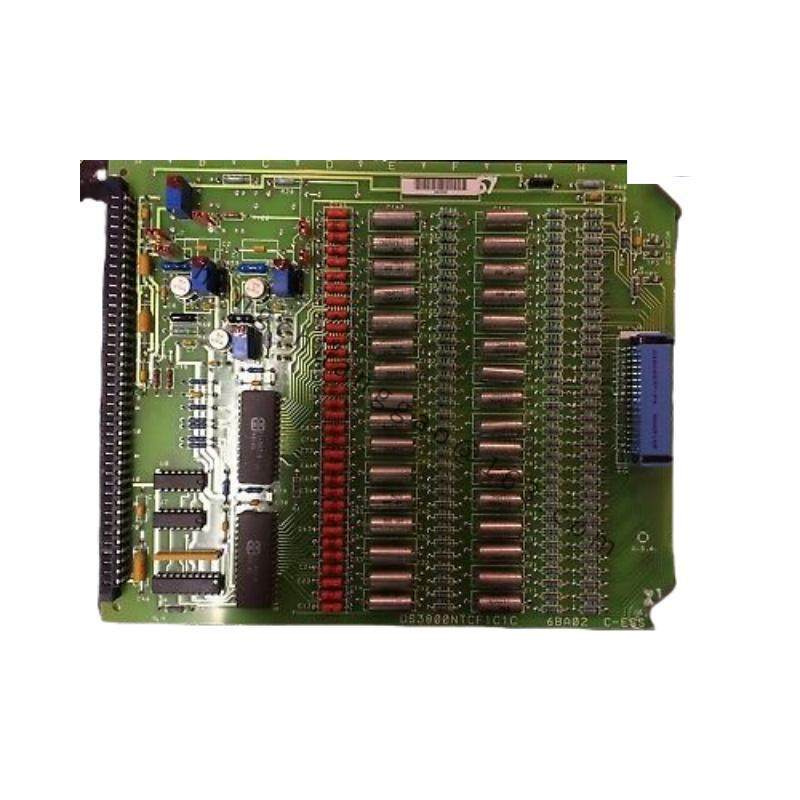

GE DS3800NTCF1C1C: Precision Thermocouple Condition Card for Industrial Control
The GE DS3800NTCF1C1C is a specialized thermocouple condition card designed for the advanced GE Mark IV series, ensuring triple-redundancy on all critical controls for enhanced safety and operational efficiency in steam and gas turbine management.
Detailed content
Manufacturer:General Electric
Model Number:DS3800NTCF1C1C
Series:Mark IV Speedtronic
Type:Thermocouple Condition Card
Channels:13
Bit Depth:12
Input Type:Voltage/Current Analog
Application Temperature Range:-40°C to +85°C
Operating Temperature Range:-40°C to +70°C
Power Consumption:≤ 5W
Dimensions:178mm x 106mm x 20mm
Material:Ruggedized PCB with heat-resistant components
Engineered for durability and precision, the GE DS3800NTCF1C1C Thermocouple Condition Card offers unmatched performance in monitoring and controlling critical processes in steam and gas turbine operations.
Featuring thirteen channels for temperature measurement, it ensures accurate and consistent feedback for optimal system control and safety shutdown protocols.
Built with GE’s proprietary technology, this card is compatible with the comprehensive Mark IV system, providing triple redundancy on all protection parameters to minimize downtime and enhance operational efficiency.
Operational in extreme temperatures, this card is designed to withstand harsh industrial environments, making it a reliable choice for demanding applications.
Easy to integrate into existing systems, the DS3800NTCF1C1C is equipped with user-friendly interfaces and robust connections, ensuring seamless installation and maintenance.
