Functional Characteristics :

Interface System: Acts as an interface system for six-pulse, phase-controlled, non-reversible bridges.
Signal Processing: Receives and decodes SCR firing data from the DS200DSPC (DSPC, VME processor) chip, transmitting feedback and diagnostic data via the VME backplane.
Feedback Scaling: Receives and scales bridge feedback signals, including voltage, frequency, and current state data, which are then transmitted back to the DSPC board.
System Clock Register: Generates firing commands and timestamp feedback values, resetting after reaching the hexadecimal value 0FFFFH.
System Reset and Heartbeat: Includes system reset and heartbeat functions to ensure component operation and readiness.
Application Scenarios:

Industrial Automation: Integrated into GE’s Speedtronic control systems, particularly the Mark V and Mark VI series, for the control and management of industrial gas and steam turbines.
Power Generation: Utilized in power plants where precise control and monitoring of turbine operations are critical for safe and efficient power generation.
Critical Infrastructure: Deployed in critical infrastructure applications where reliability, accuracy, and real-time monitoring are essential for maintaining system stability and operational safety.
Additional Information:

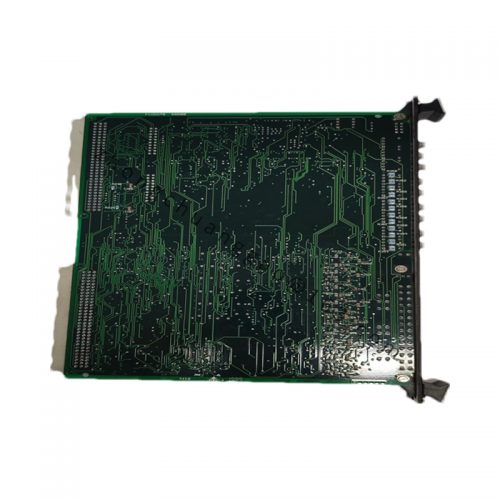

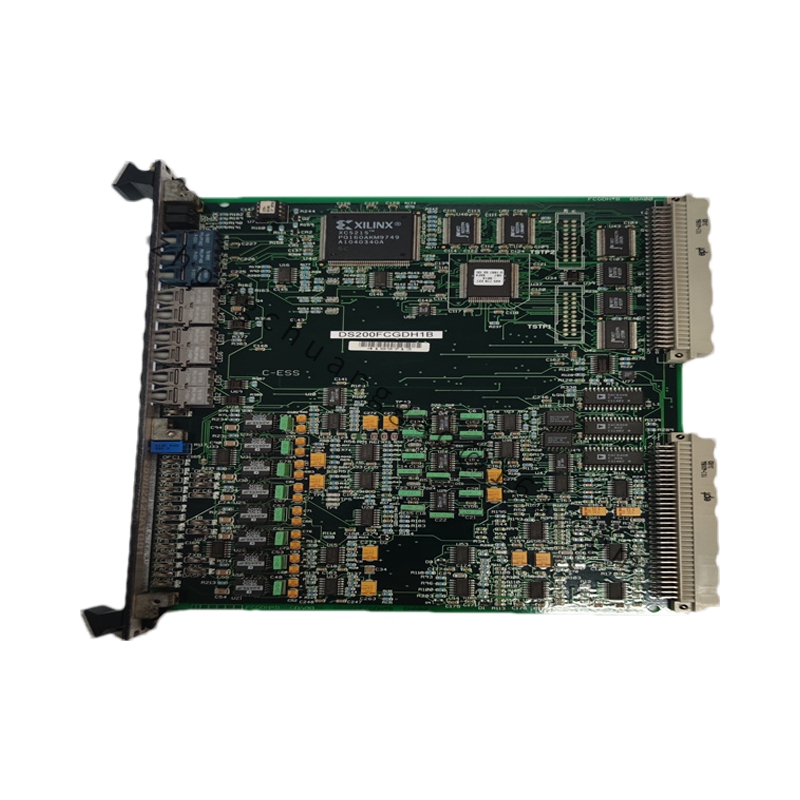

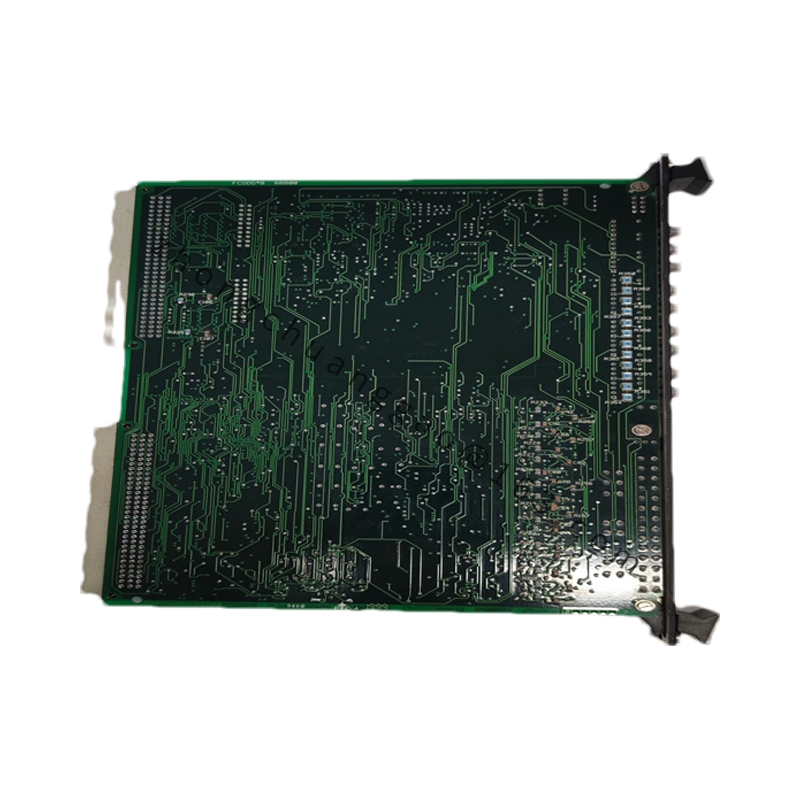

The DS200FCGDH1B is a key component of GE’s Speedtronic control systems, designed to interface with and control non-reversible bridges used in various industrial applications.
It works closely with the DSPC board to decode incoming signals, process them, and provide essential feedback and diagnostic data to maintain optimal system performance.
The card’s robust design and wide operating temperature range make it suitable for use in various environmental conditions, ensuring reliable operation in industrial settings.
