GE DS200DCFBG1BLC

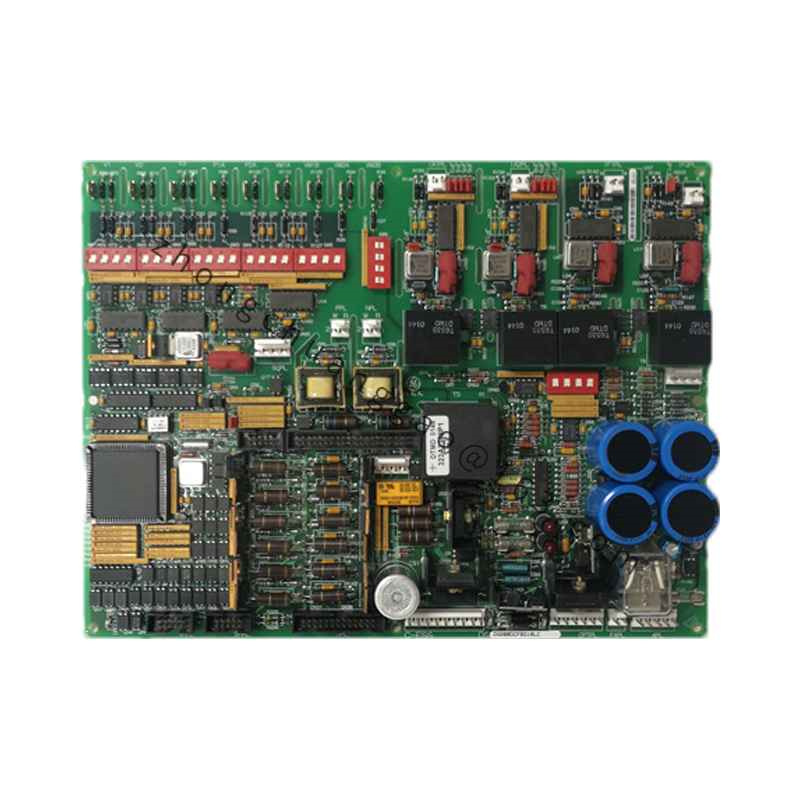

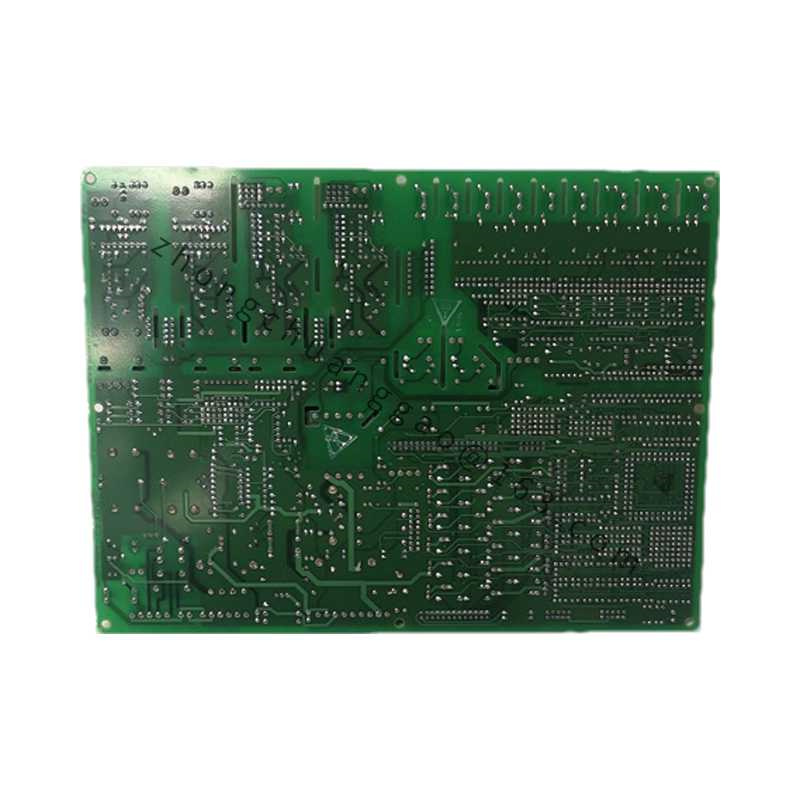

The GE DS200DCFBG1BLC is a DC power supply feedback board that belongs to the GE Mark VI control system series. It is primarily used in applications that require precise control and feedback for DC motors in various industrial environments, including power generation, water treatment plants, and transportation systems.
Detailed content
Key Features:
- Power Supply Management: The board provides control-level power (e.g., +5V, +/-15V, and +/-24V) and motor field power circuits. It handles motor current, armature feedback, and AC line signals.
- Feedback and Monitoring: It monitors armature current, AC line current, motor field current, and voltage levels. It also uses Voltage-Controlled Oscillator (VCO) circuits to convert input voltage into frequency signals, ensuring smooth feedback for motor control.
- Built-in Diagnostics: Equipped with fuse protection (LED indicators for fuse status), configurable jumpers, and DIP switches to customize settings based on user requirements.
- Compatibility: The board is compatible with several drive systems, including EX2000, DC2000, and CB2000.
