Technical Specifications

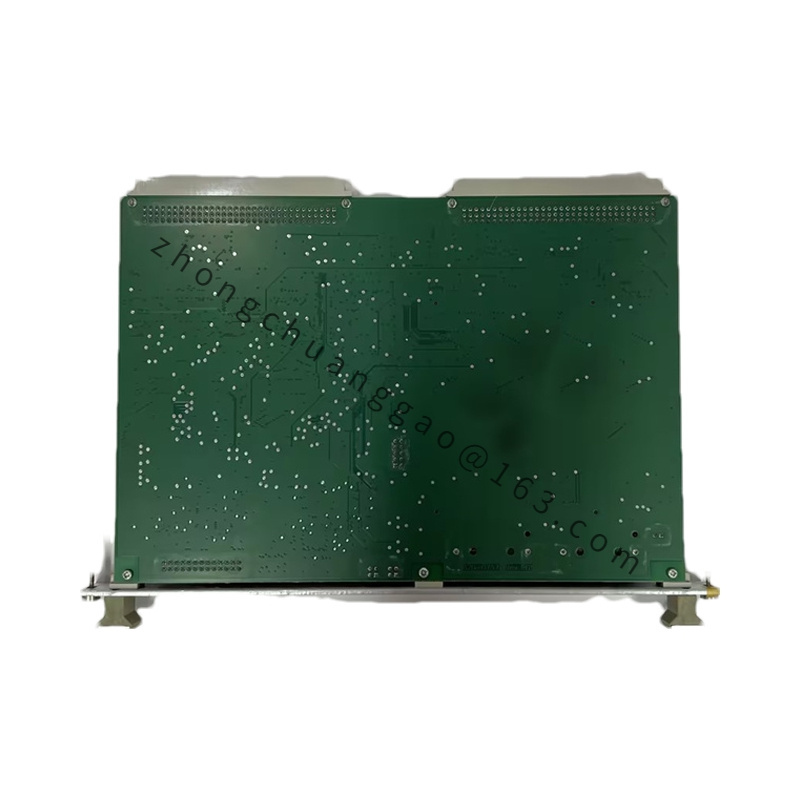

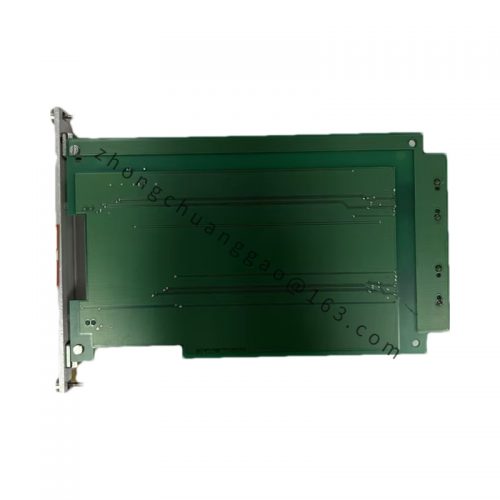

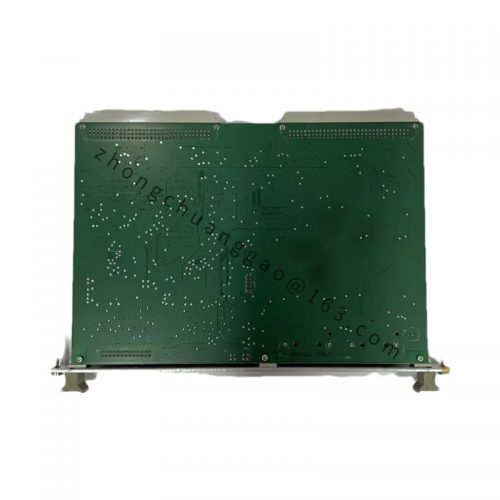

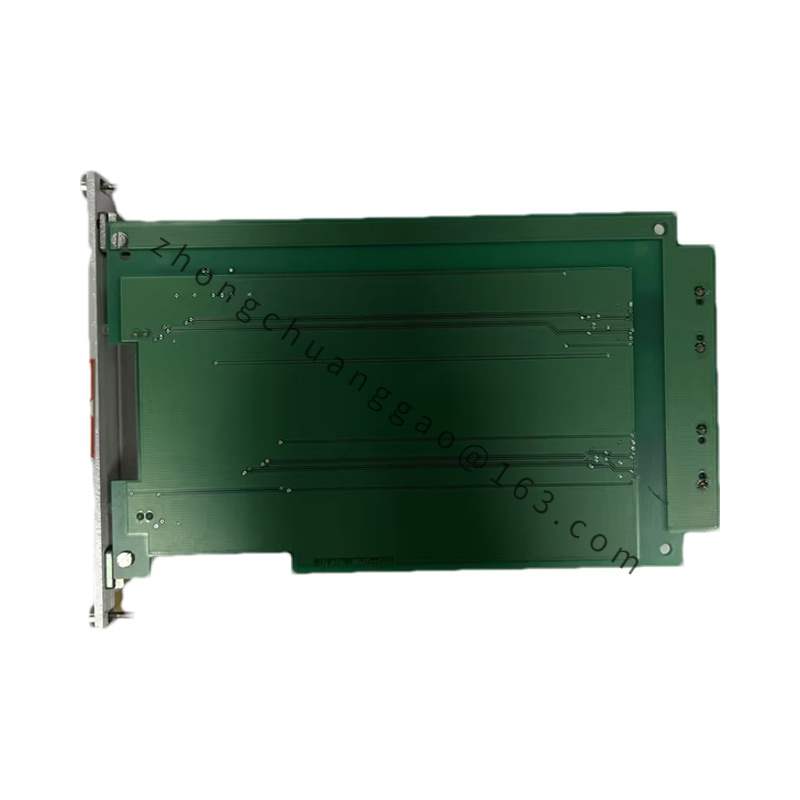

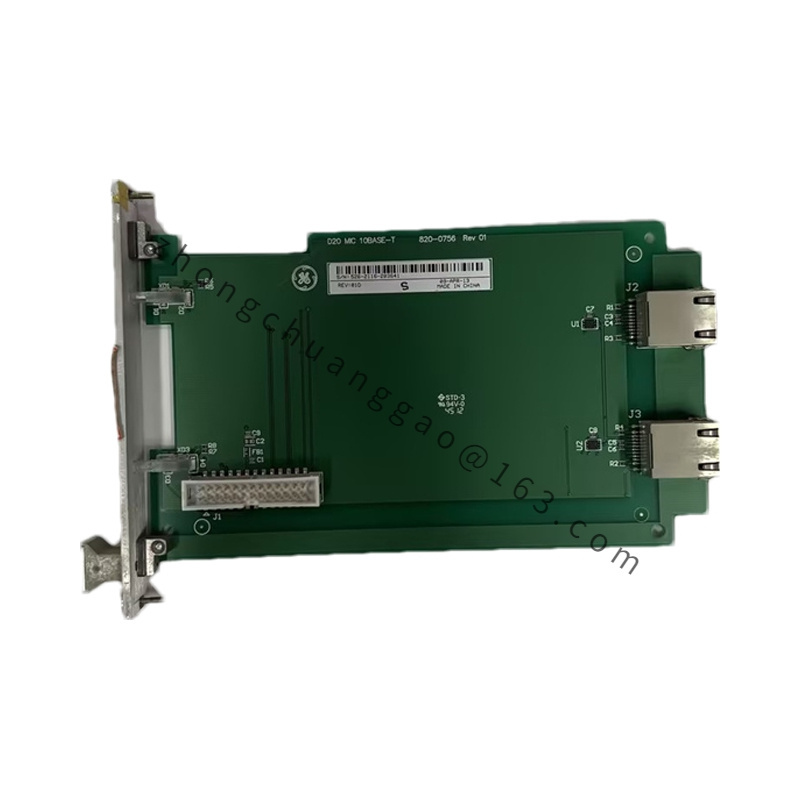

• Model: D20 EME210BASE-T
• System: GE D20/D200 Substation Automation System
• Type: Ethernet Communication Module
• Network Interface: 10/100Base-T Ethernet, supporting both half and full-duplex modes.
• Power Supply: Typically powered through the substation automation system’s backplane.
• Size: Standard module size, designed for use within D20/D200 system racks.
• Operating Temperature: Designed to operate in typical substation environments, ensuring reliability under harsh conditions.

Functional Features

• Ethernet Connectivity: Provides Ethernet communication capabilities to the D20/D200 system, allowing for remote monitoring, control, and data acquisition from substations.
• High Reliability: Built to meet the rigorous demands of substation environments, ensuring stable and secure data transmission.
• Scalability: Can be used in systems of varying sizes, making it suitable for both small and large substations.
• Ease of Integration: Seamlessly integrates into existing D20/D200 systems, providing a straightforward method to upgrade or expand communication capabilities.
• Security: Supports various network security protocols to protect communication from unauthorized access and cyber threats.

Application Scenarios

• Substation Automation: Primarily used in electrical substations for automation, monitoring, and control. It enables the communication of data between field devices and the central control system.
• Remote Monitoring: Allows utilities to monitor and control substation operations remotely, improving efficiency and reducing the need for on-site personnel.
• Data Acquisition: Used to gather and transmit operational data from various substation devices, aiding in real-time decision-making and analysis.

Key Considerations

• Compatibility: Designed specifically for use with GE’s D20/D200 substation automation systems, ensuring compatibility and ease of use within these systems.
• Maintenance: Regular maintenance and firmware updates may be required to ensure continued optimal performance and security.
• Network Configuration: Proper network configuration and security measures are essential to ensure secure and reliable operation in a substation environment.
