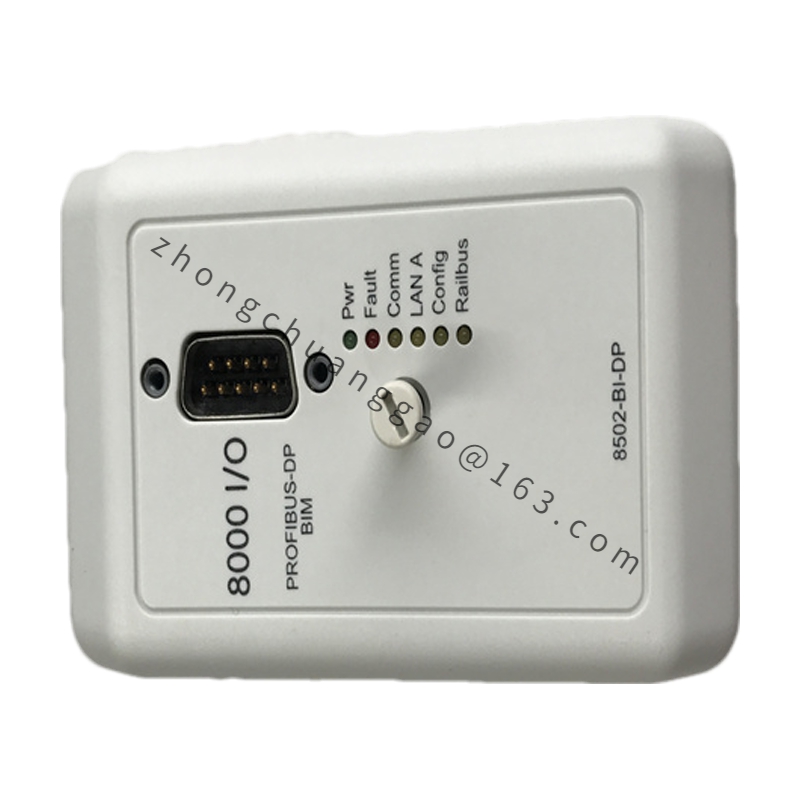

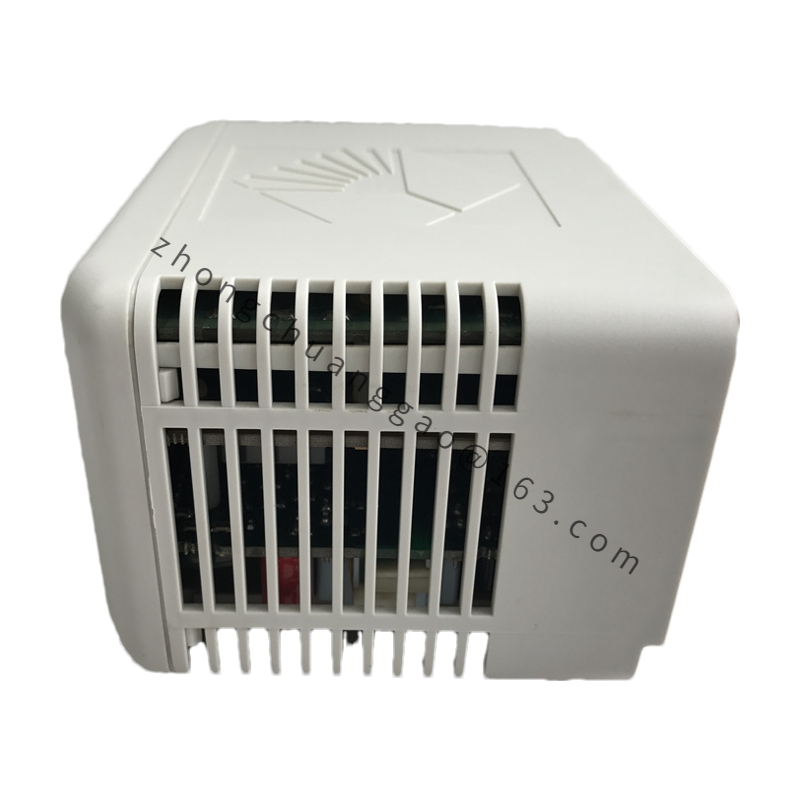

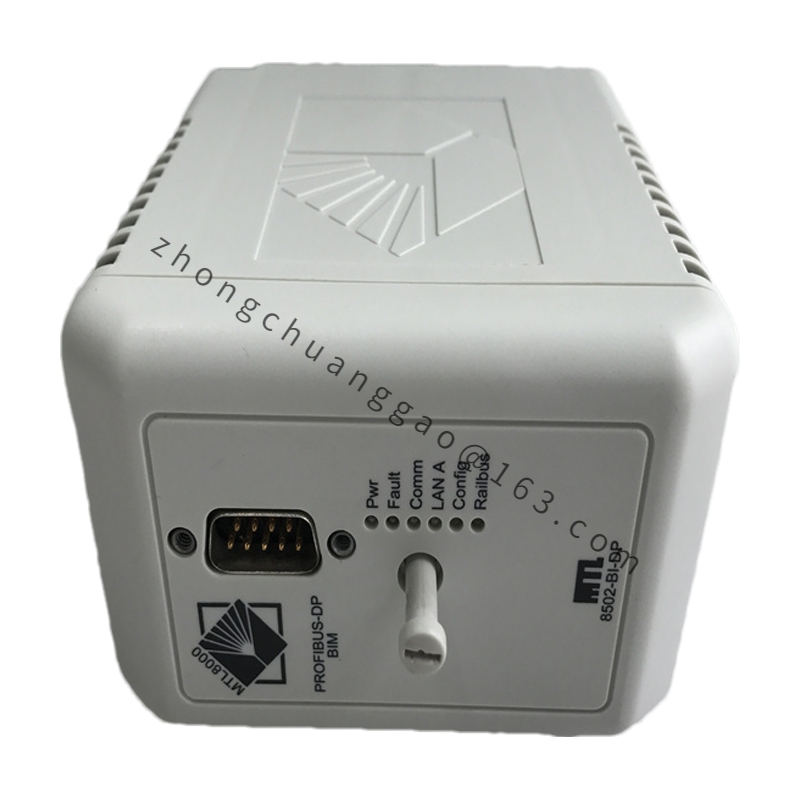

GE 8502-BI-DP
Technical Specifications
Model: 8502-BI-DP
Manufacturer: GE Automation
Supported Bus Protocol: PROFIBUS DP
Data Transmission Rate: Up to 6 Mbps
Node Address Range: 0 to 255
Supported I/O Modules: Up to 24
Operating Temperature: 0°C to +60°C
Protection Rating: IP65
Dimensions: 85 mm x 45 mm x 23 mm
Weight: 50 g
Detailed content
Functional Features
High-Speed Data Transmission:
Supports high-speed data transmission rates of up to 6 Mbps, enabling efficient communication between devices on the PROFIBUS DP network.
Multiple Bus Protocol Support:
In addition to PROFIBUS DP, the module may also support other bus protocols, such as CAN, allowing for flexible integration into various industrial automation systems.
High Reliability and Durability:
Constructed with high-quality materials and manufacturing processes, the module is designed to withstand harsh industrial environments and ensure reliable operation.
Programmable Functionality:
Offers programmable features, allowing users to implement custom control logic and algorithms to meet specific application requirements.
High-Speed Data Acquisition:
Enables high-speed data acquisition from GE 8000 Series I/O modules, facilitating real-time monitoring and control of industrial processes.
PROFIBUS DP Slave Device:
Functions as a slave device on the PROFIBUS DP network, allowing it to communicate and receive commands from a PROFIBUS DP master.
Supports Cyclic and Acyclic Data Exchange:
Enables both cyclic and acyclic data exchange, allowing for flexible data communication between devices.
Diagnostic Capabilities:
Provides diagnostic features, such as support for PROFIBUS extended status information, to help identify and resolve communication issues.
Application Scenarios
The GE 8502-BI-DP bus interface module is suitable for a wide range of industrial automation applications, including but not limited to:
Discrete Manufacturing:
Connecting and controlling sensors, actuators, and other devices in discrete manufacturing processes.
Process Control:
Monitoring and controlling process variables such as flow, pressure, and temperature in process industries.
Machine Control:
Automating and controlling machines and equipment in various industrial settings.
Building Automation:
Integrating and controlling HVAC, lighting, and security systems in commercial and industrial buildings.
Industrial Control:
Serving as a critical component in industrial control systems, enabling data communication and control between various devices and systems.
Transportation:
Controlling traffic signals, railway systems, and other transportation infrastructure.
Utilities:
Monitoring and controlling power generation, transmission, and distribution systems in utilities.
