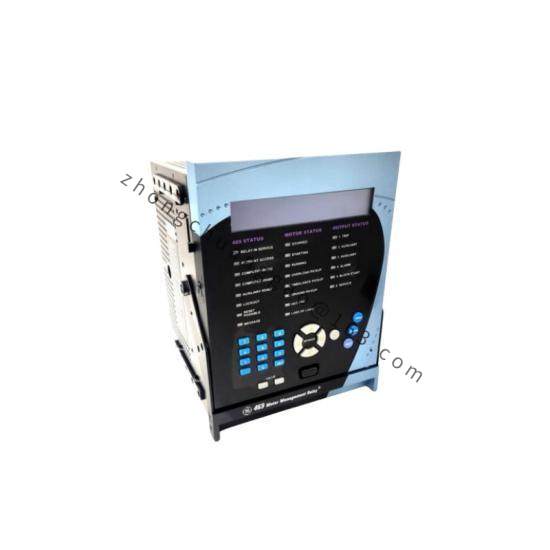

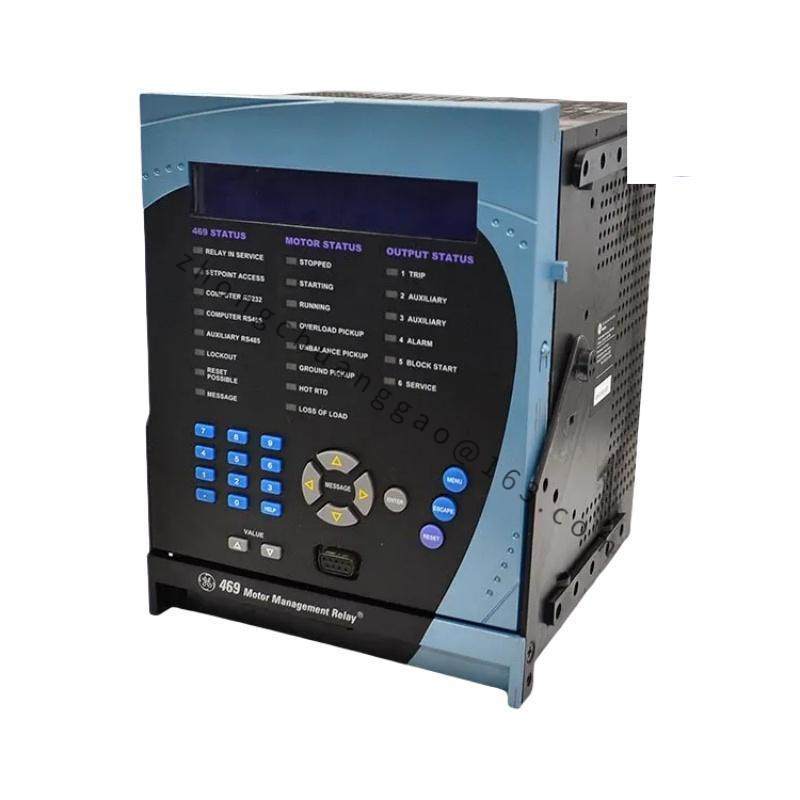

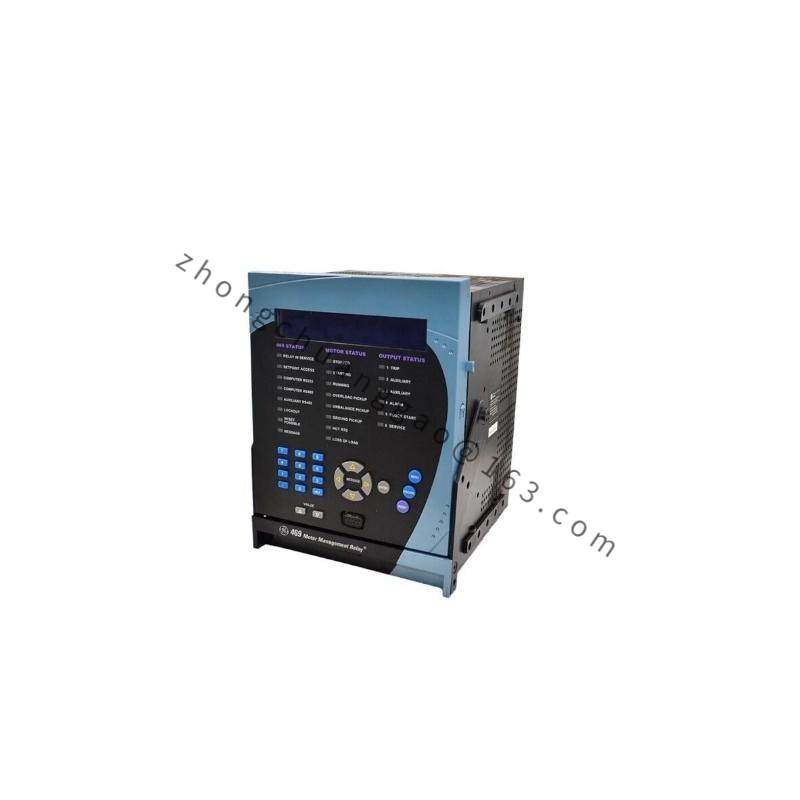

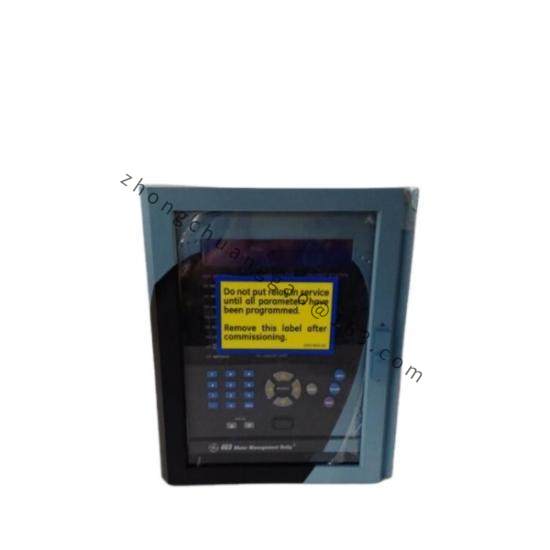

GE 469-P5-HI-A20-E Motor Management Relay – Advanced Motor Protection and Control
The GE 469-P5-HI-A20-E is a Motor Management Relay designed for monitoring, controlling, and safeguarding medium and large motors. It offers advanced protection features including real-time temperature monitoring and overvoltage protection.
Detailed content
Sku:E12940
GE Number:469-P5-HI-A20-E
Motor Management Type:Relay
Current Transformers:5 CT Secondaries
Input Voltage Range DC:90 – 300 Volt DC
Input Voltage Range AC:70 – 265 Volt AC
Analog Outputs:4
Current Rating:390/500 MA (MAX)
Line Voltage:90-300VDC, 70-265VAC
Enclosure Rating:20-X
Frequency Range:48-62 HZ
Phase CT:5A
Overvoltage Category:II
Insulation Voltage:300 V
Pollution Degree:2
The 469-P5-HI-A20-E is an advanced Motor Management Relay from GE’s Multilin series. It is designed to provide comprehensive monitoring, control, and protection for medium and large motors. Equipped with multiple RTD inputs, this relay accurately determines the actual temperature and hottest point for the motor system, ensuring optimal performance and longevity. With its robust features such as 4 analog outputs, 9 digital inputs, and enhanced front panel displays, it offers unparalleled precision and reliability.
The 469-P5-HI-A20-E is built to withstand harsh environments, featuring chemical-resistant conformal coating that ensures long-term durability even under challenging conditions. Its versatile operating voltage range allows for flexible installation in various industrial settings, making it a reliable choice for any motor management application.
This relay operates efficiently across a wide frequency range of 48-62Hz and supports a variety of phase current inputs up to 5A. With its advanced software tools like EnerVista 469 Setup, users can easily configure and manage the relay for optimal performance. The 469-P5-HI-A20-E is an essential component for modern industrial control systems, providing enhanced motor protection and control capabilities.
