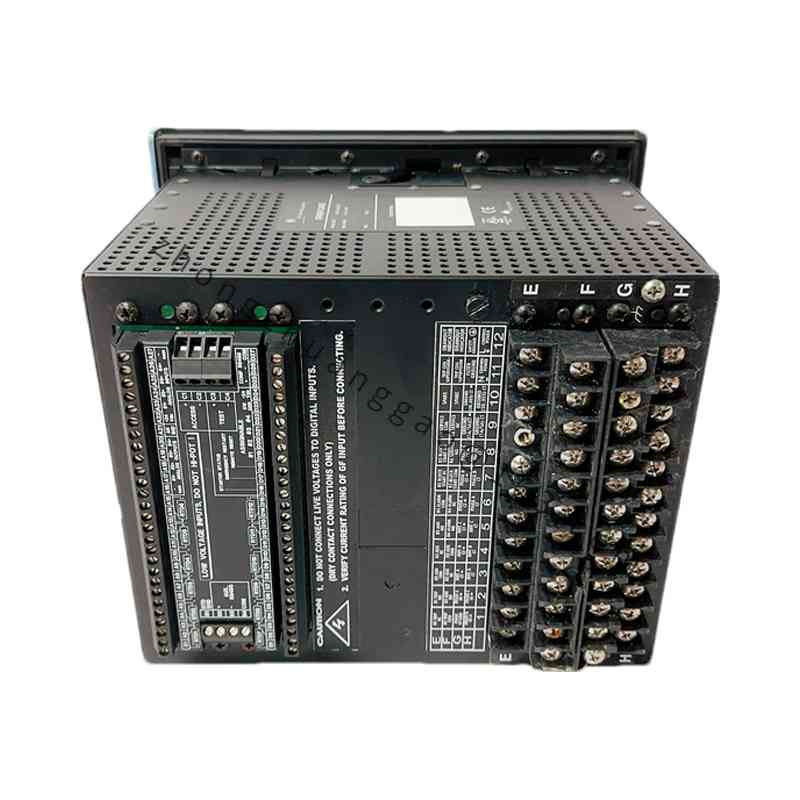

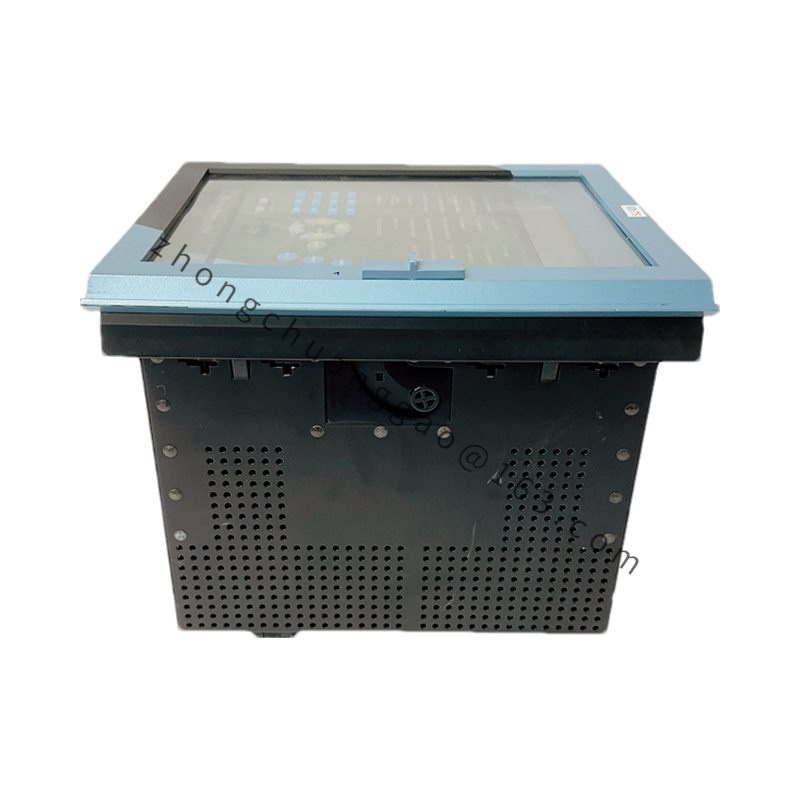

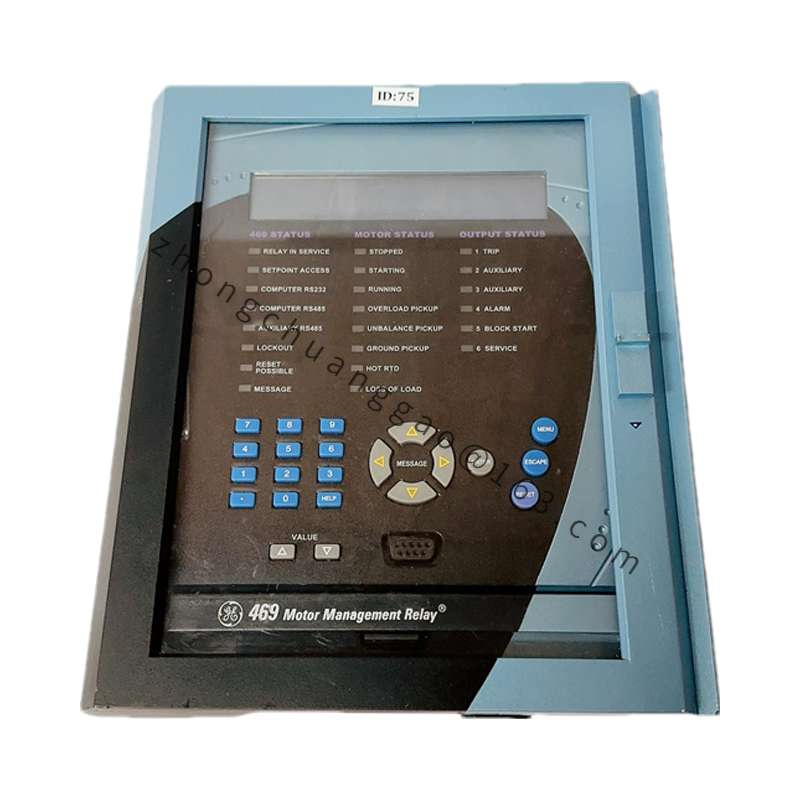

GE 469-P1-HI-A20-E

The GE 469-P1-HI-A20-E is a protective relay manufactured by General Electric (GE), designed for comprehensive protection and monitoring of electrical systems. It is part of GE’s versatile protection relay series and is used to safeguard equipment and ensure reliable operation in various industrial and utility applications.

WhatApp
WeChat

Detailed content

Technical Specifications

  • Model Number: 469-P1-HI-A20-E
  • Type: Protective Relay
  • Input Voltage: Typically supports a range of input voltages for compatibility with different systems
  • Measurement Parameters: Voltage, current, frequency, and power
  • Protection Functions: Overcurrent, undervoltage, overvoltage, and frequency protection
  • Communication Protocols: Includes industry-standard communication protocols for integration with other systems
  • Display: May include an LCD or LED display for status and configuration
  • Mounting: Designed for panel or rack mounting
  • Power Supply: Operates on standard AC or DC power supplies
  • Environmental Conditions: Suitable for use in a range of industrial environments

Features

  • Advanced Protection: Offers sophisticated protection features such as overcurrent, undervoltage, and overvoltage protection.
  • Monitoring Capabilities: Monitors critical electrical parameters to provide real-time data and alerts.
  • User-Friendly Interface: Features an intuitive interface for configuration and monitoring.
  • Communication Integration: Supports various communication protocols for seamless integration with control systems.
  • Customization: Allows for customization of protection settings to meet specific application needs.
  • Reliability: Built to provide reliable protection in demanding industrial and utility environments.

Applications

  • Power Distribution: Used in power distribution systems to protect transformers, feeders, and circuit breakers.
  • Industrial Automation: Applied in industrial automation systems to safeguard machinery and equipment.
  • Utility Systems: Used in utility systems to ensure the reliability of electrical supply and equipment protection.
  • Renewable Energy: Applied in renewable energy installations such as wind and solar power systems to monitor and protect electrical systems.
